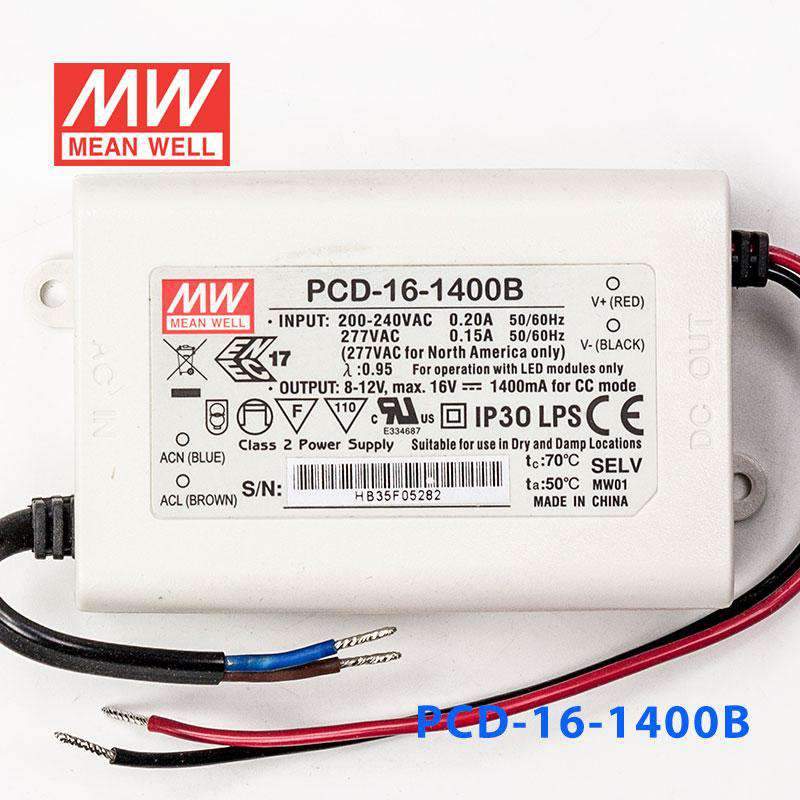

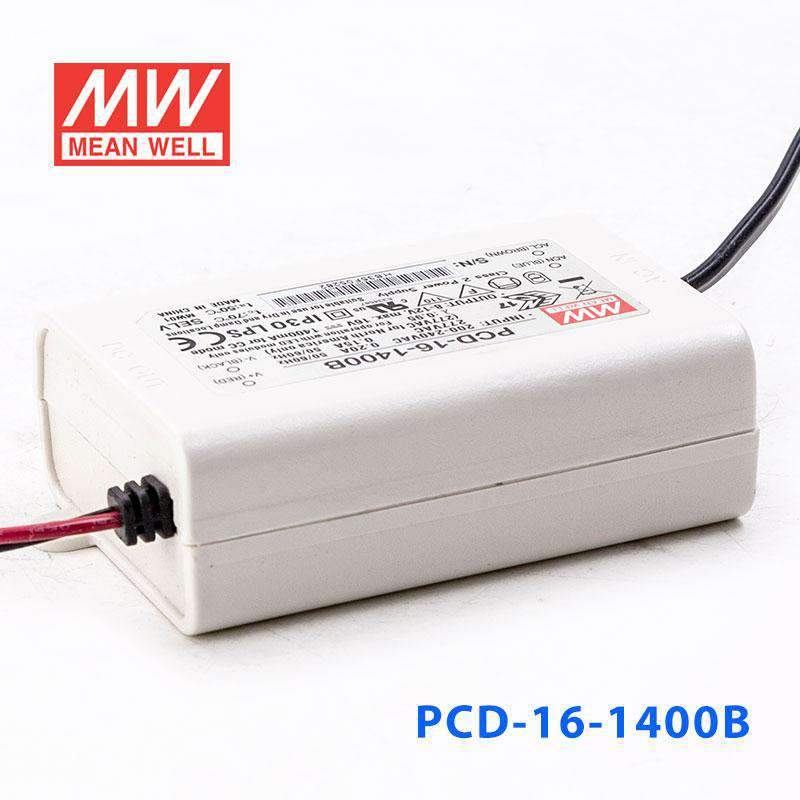

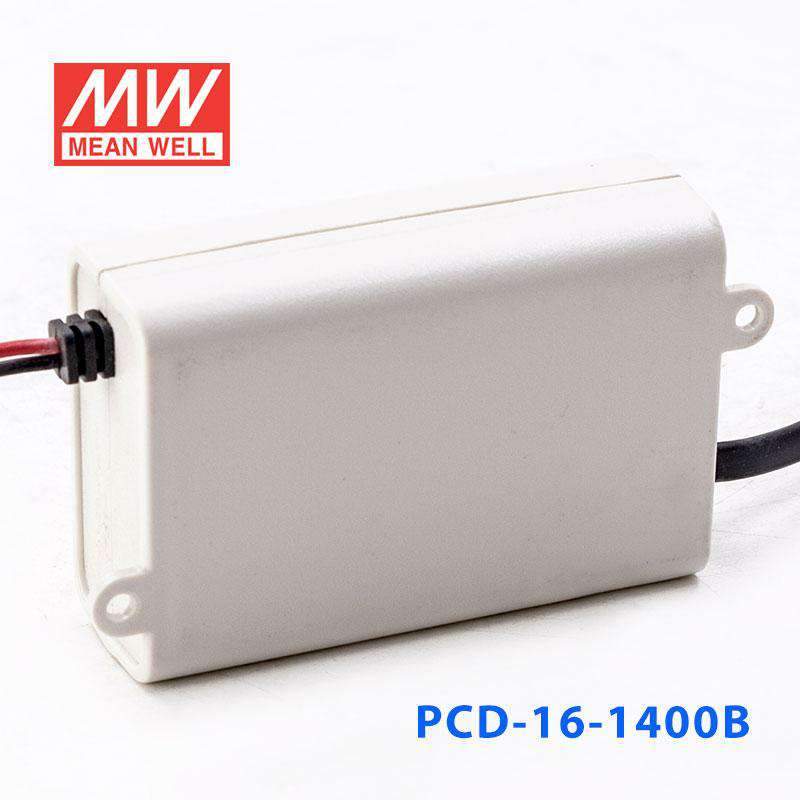

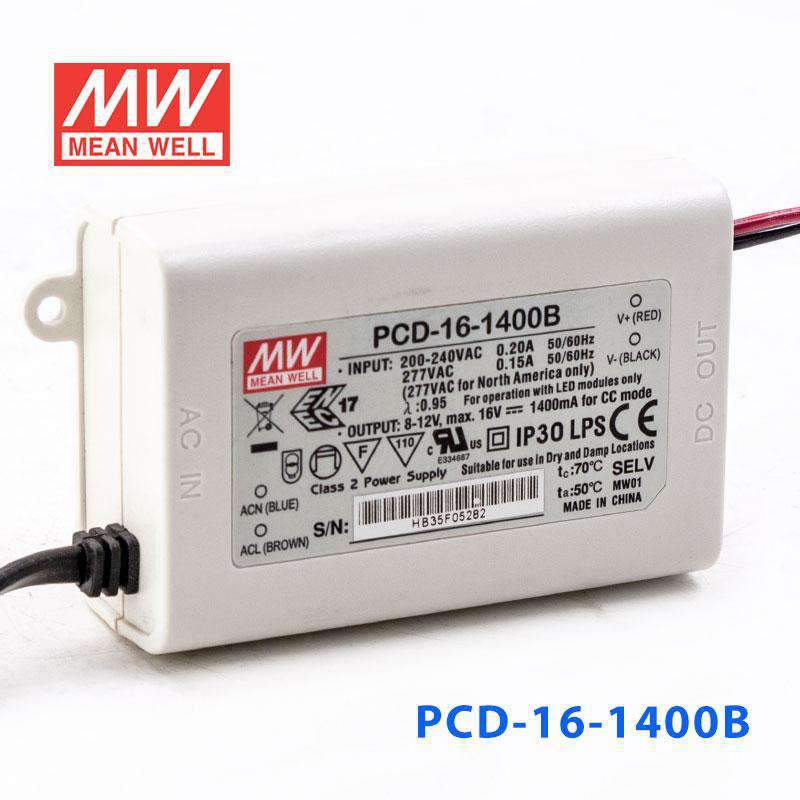

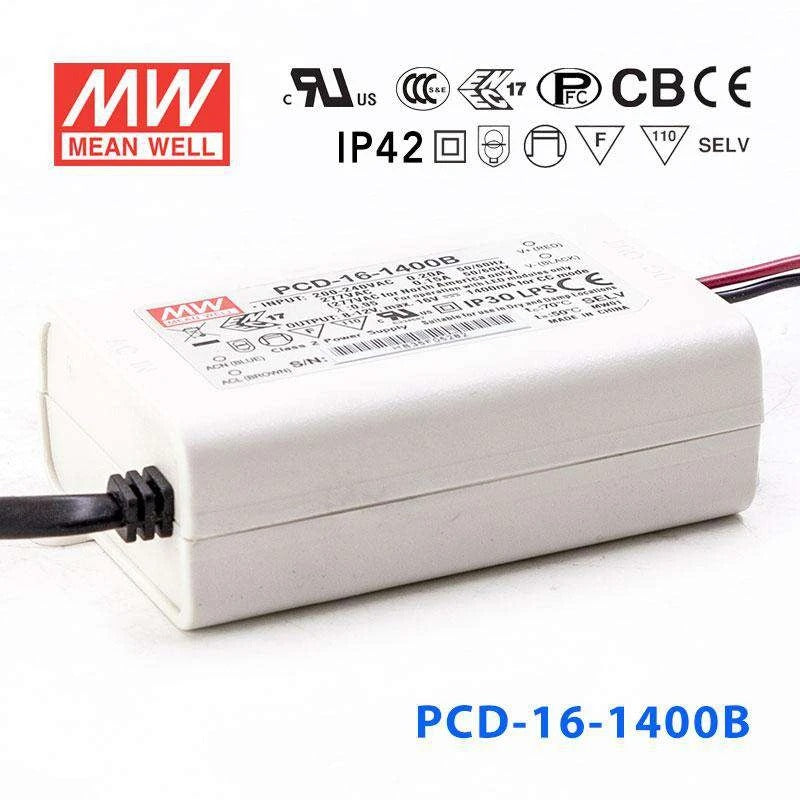

Mean Well PCD-16-1400B Power Supply 16W 1400mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-16-1400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-16-1400B is the model of this series: rated current 1400mA, rated power 16.8W, typical efficiency 80%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-16-1400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
8 ~ 12V
CURRENT ACCURACY
±5.0%
RATED POWER
16.8W
RIPPLE & NOISE (max.)Note.1
2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
16V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=90μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/N62384(for B type only), BIS IS15885(for 350B,700B only),EAC TP TC 004, IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6624.6K hrs min. Telcordia SR-332 (Bellcore) 906.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-16-1400B Mechanical Specification
Mechanical Specification
PCD-16-1400B Block Diagram
Block Diagram
PCD-16-1400B Derating Curve
Derating Curve
PCD-16-1400B Power Factor Characteristic
Power Factor Characteristic
PCD-16-1400B EFFICIENCY vs LOAD (PCD-16-350)
EFFICIENCY vs LOAD (PCD-16-350)
PCD-16-1400B P C D - 1 6 series
P C D - 1 6 series

Downloads

FAQ

Can the PCD-16-1400B power a 1400mA LED downlight on higher-voltage AC input?

Yes, if the fixture needs 1400mA constant current and the LED load stays within the 8-12V constant current range. This B version accepts 180-295VAC input, which can matter where the available mains supply falls in that range. Output power is 16.8W.

Is this driver suitable for short-run LED signage or display light modules?

It can be suitable when the LED module is a constant current 1400mA load and its total forward voltage is between 8V and 12V. Because it is a constant current driver, it is not a replacement for common constant voltage signage power supplies. The IP42 case also points to indoor or protected use.

Can I use the PCD-16-1400B for a small LED array that needs strong current at low voltage?

Yes, that is the kind of load this model is built for, provided the array requires 1400mA constant current and operates within 8-12V. Its 16.8W rating keeps it in the small-array category rather than larger high-power systems. TRIAC dimming support may also help in compatible dimmed lighting setups.

How should I check compatibility with an LED module or COB?

Match the LED load to 1400mA constant current and confirm that the total forward voltage falls inside the 8-12V CC range. The number of LEDs depends on each LED's forward voltage, so the usable series length varies by LED type. If the module expects constant voltage, this driver is not compatible.

Can this driver be used in cooler or warmer indoor environments?

Yes, its rated operating range is -30°C to +60°C. That supports a wide range of indoor ambient conditions, but the IP42 enclosure still means it should be used in protected environments rather than directly exposed wet locations. Environmental fit depends on both temperature and ingress rating.
