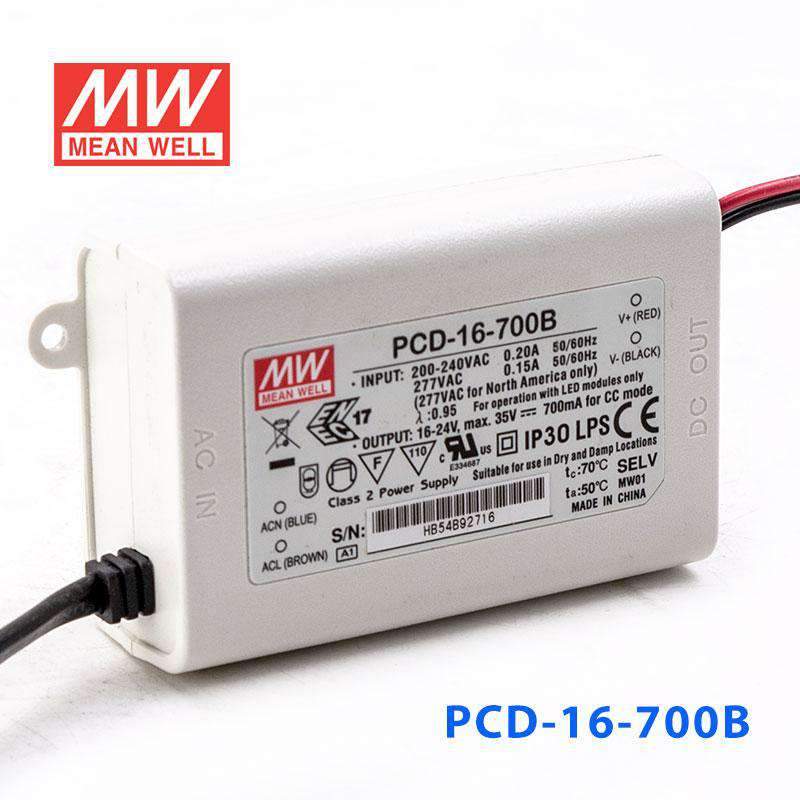

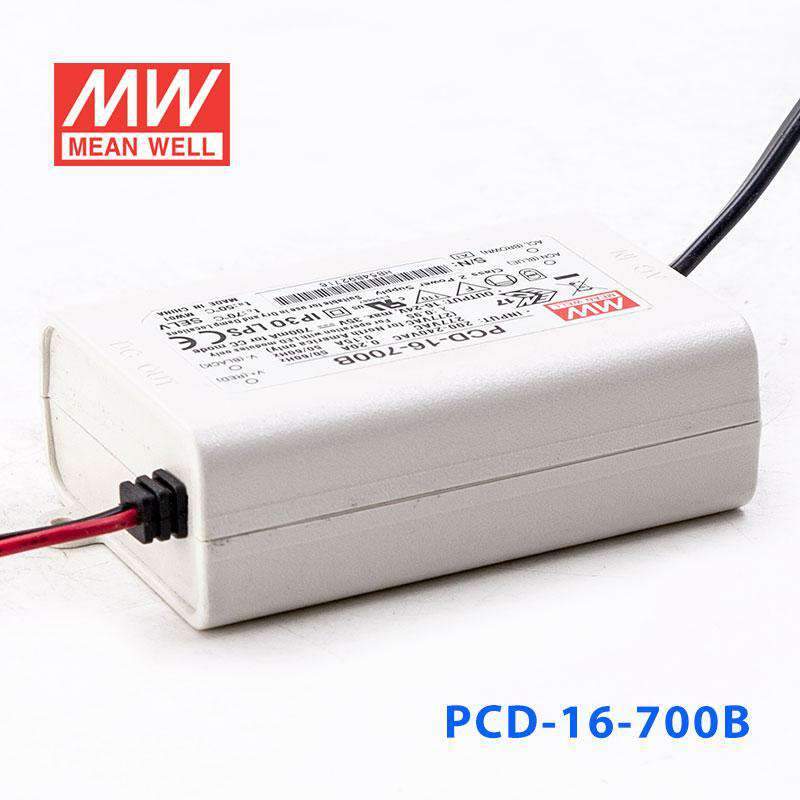

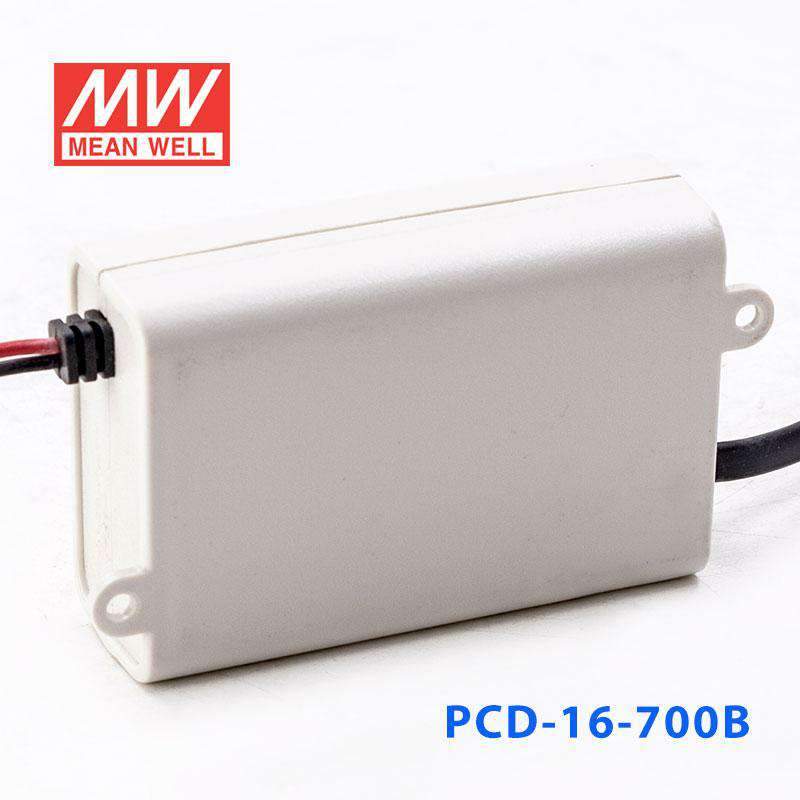

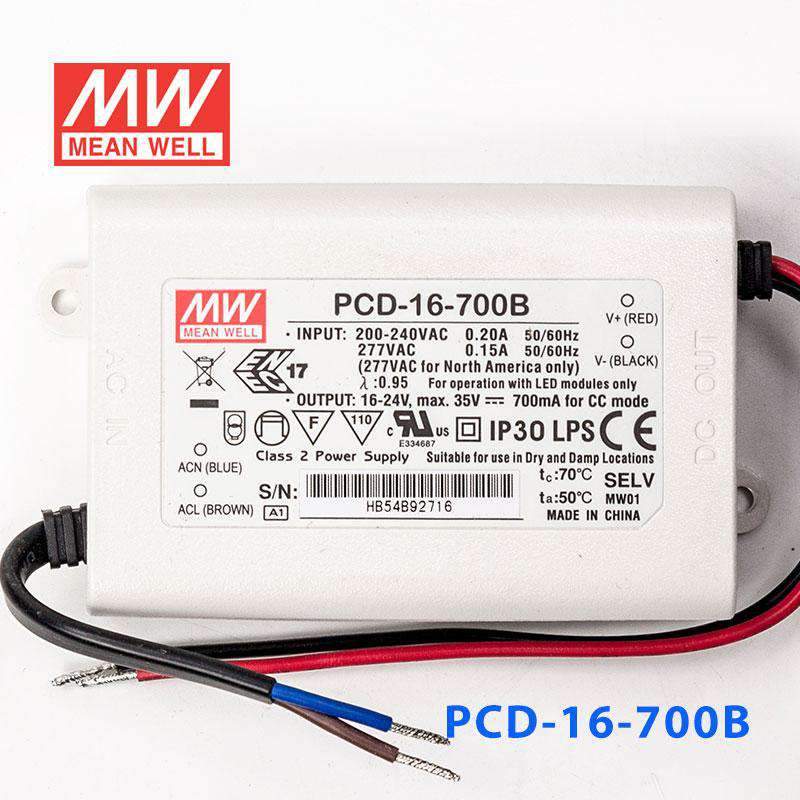

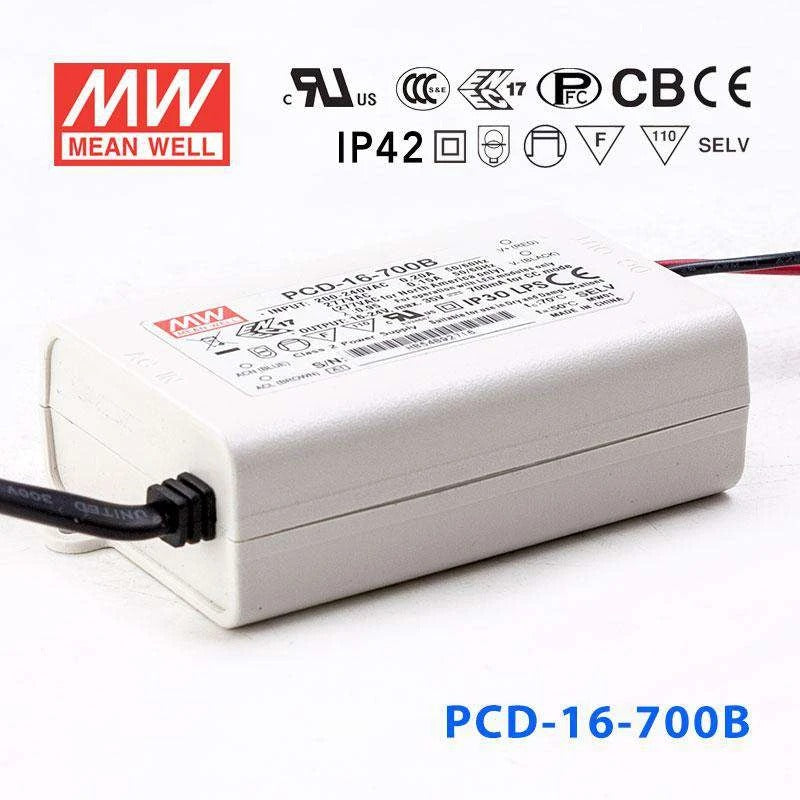

Mean Well PCD-16-700B Power Supply 16W 700mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current

SKU:

PCD-16-700B

Please for Pricing

Notify me when it's back in stock

Description

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers

115VAC or 230VAC input

Protections: Short circuit / Over temperature

The constant current design (CC mode)

Class 2 power unit / Pass LPS

Isolation class II, no FG

Fully isolated plastic case

Cooling by free air convection

Built-in active PFC function

IP30 design

3 years warranty

General Specification

AC input voltage range	115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 10A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Working temperature	-30 ~ + 60ºC (refer to output derating curve)
Safety standards	UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (B-Type only) approved
EMC standards	A-Type: FCC part 18 non-consumer equipment, B-Type: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	84x 57x 29.5

Specifications

Brand

Mean Well
Series

PCD Series
Power Rating

16.8 Watt
Output Voltage

24 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~295V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~60°C
Warranty

3 Year
Length

8.4 cm
Width

5.7 cm
Height

2.95 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the PCD-16-700B be used with 700mA LED downlights?

Yes, if the downlight requires constant current at 700mA and the combined LED forward voltage stays within 16-24V. The driver is rated for 16.8W, so the load needs to remain within that output capacity.

Is this a good fit for signage modules on 180-295VAC input systems?

It can be, provided the signage module assembly is a constant-current 700mA load within the 16-24V constant-current range. This version is specified for 180-295VAC input, which is the main difference from the A version.

Can the PCD-16-700B power a small LED array instead of a constant-voltage strip?

Yes, if the small LED array is built for 700mA constant current and its forward-voltage demand falls between 16V and 24V. It is not intended for constant-voltage LED strips because the output mode is constant current.

What should I check before pairing the PCD-16-700B with LEDs?

Confirm that the LEDs need 700mA constant current and that the total forward voltage stays in the 16-24V constant-current window. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this driver.

Can the PCD-16-700B be used in dusty or damp areas?

The housing is IP42, so it is better suited to indoor or protected environments than directly exposed wet locations. Its operating temperature range is -30C to +60C, which defines the rated temperature window.

Model	Power	Voltage	Current	IP Rating
Mean Well PCD-16-1050B Power Supply 16W 1050mA	16.8W	16V	1.05A	Indoor	View
Mean Well PCD-16-350B Power Supply 16W 350mA	16.8W	48V	0.35A	Indoor	View
Mean Well PCD-16-700A Power Supply 16W 700mA	16.8W	24V	0.7A	Indoor	View
Mean Well PCD-16-350A Power Supply 16W 350mA	16.8W	48V	0.35A	Indoor	View
Mean Well PCD-16-1400B Power Supply 16W 1400mA	16.8W	12V	1.4A	Indoor	View
Mean Well PCD-16-1400A Power Supply 16W 1400mA	16.8W	12V	1.4A	Indoor	View
Mean Well PCD-16-1050A Power Supply 16W 1050mA	16.8W	16V	1.05A	Indoor	View
