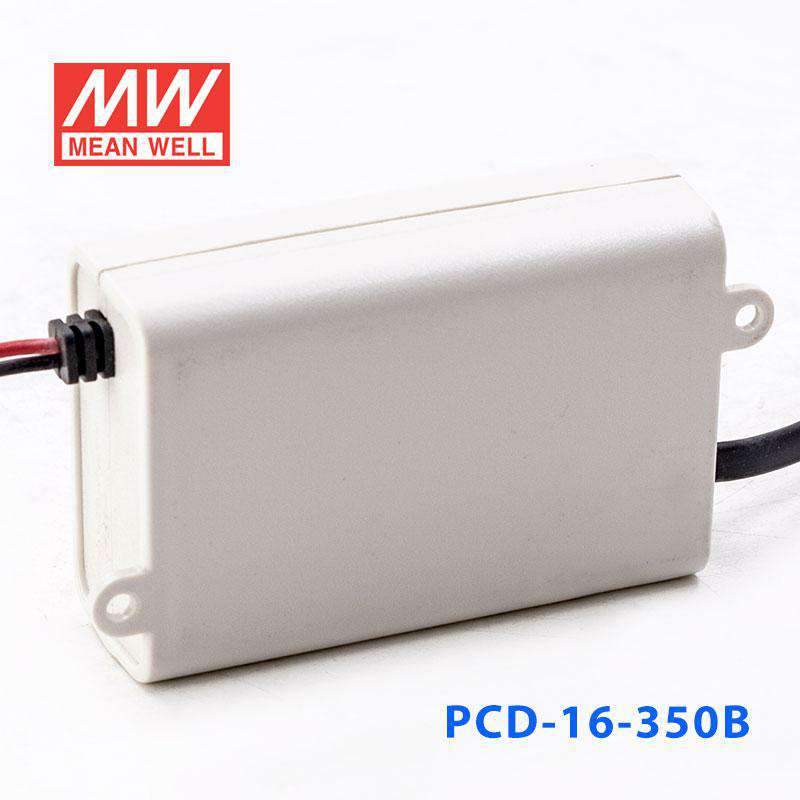

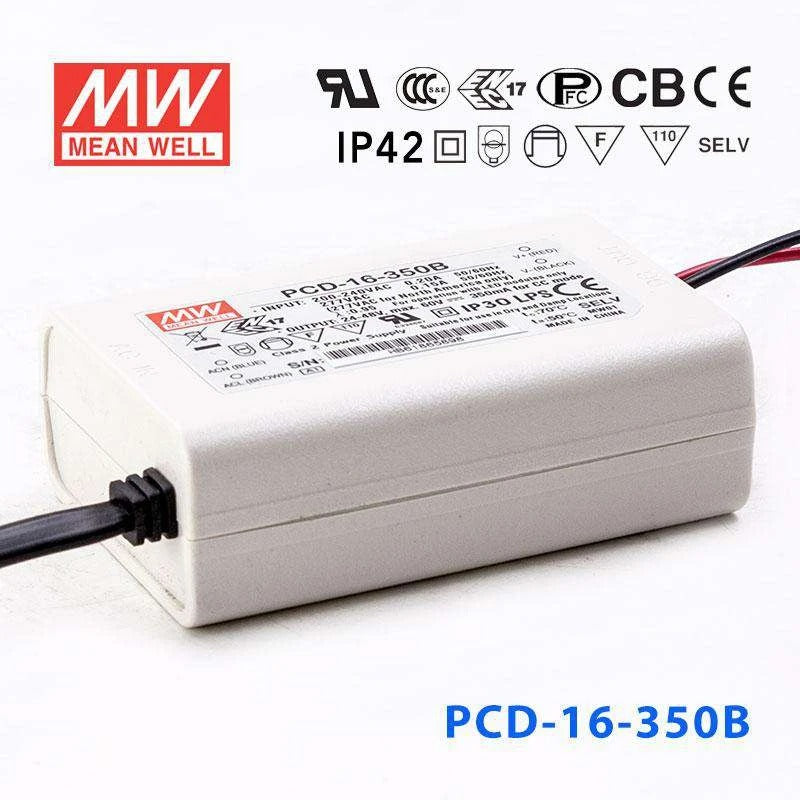

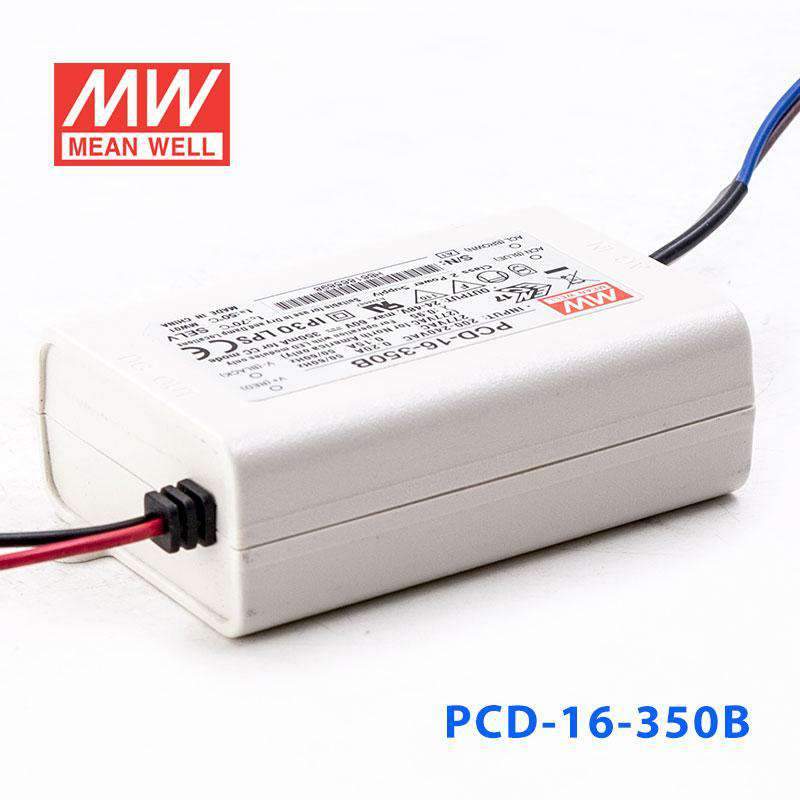

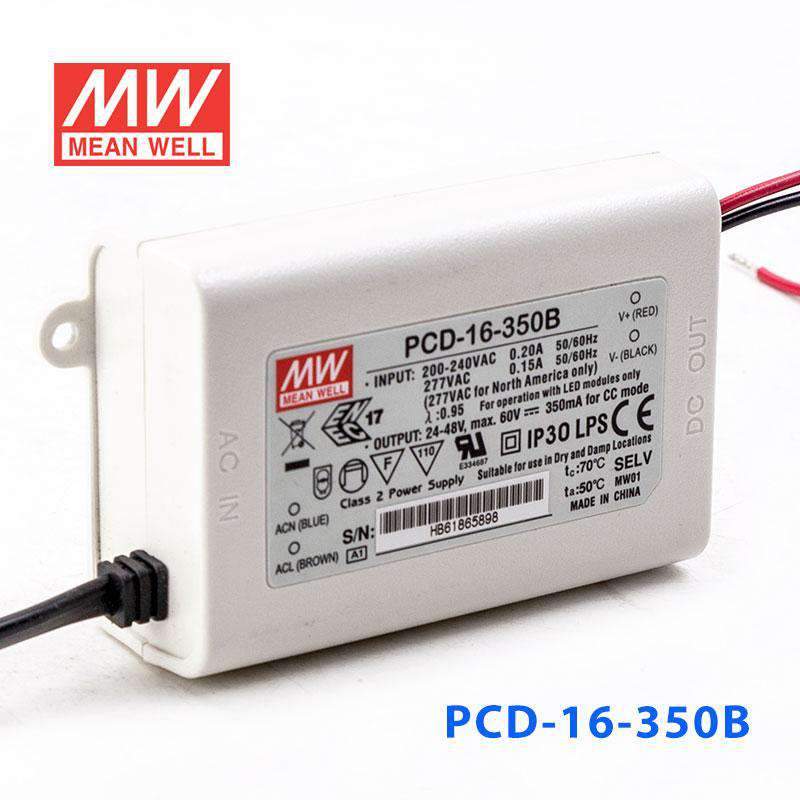

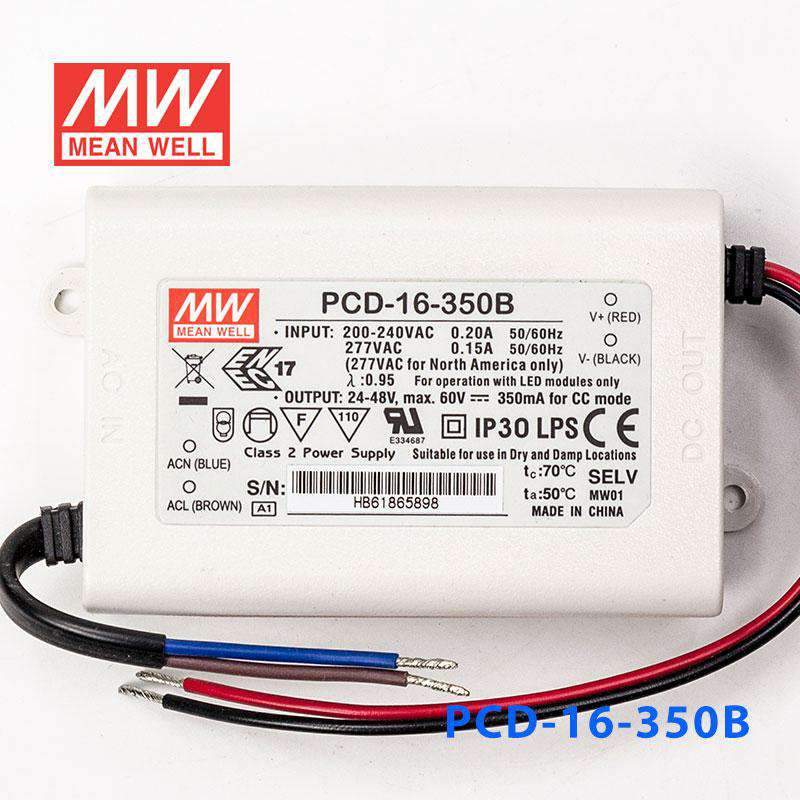

Mean Well PCD-16-350B Power Supply 16W 350mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-16-350B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PCD-16-350B is the model of this series: rated current 350mA, rated power 16.8W, typical efficiency 82%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • 115VAC or 230VAC models available
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-16-350BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
350mA
OPERATING VOLTAGE RANGE
24 ~ 48V
CURRENT ACCURACY
±5.0%
RATED POWER
16.8W
RIPPLE & NOISE (max.)Note.1
4.6Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
60V
SETUP TIME
500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series
THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series
THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
82%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=90μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series
58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series
128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/N62384(for B type only), BIS IS15885(for 350B,700B only),EAC TP TC 004, IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
6624.6K hrs min. Telcordia SR-332 (Bellcore) 906.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
84*57*29.5mm (L*W*H)
PACKING
0.19Kg; 72pcs/14.7Kg/0.92CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-16-350B Mechanical Specification
Mechanical Specification
PCD-16-350B Block Diagram
Block Diagram
PCD-16-350B Derating Curve
Derating Curve
PCD-16-350B Power Factor Characteristic
Power Factor Characteristic
PCD-16-350B EFFICIENCY vs LOAD (PCD-16-350)
EFFICIENCY vs LOAD (PCD-16-350)
PCD-16-350B P C D - 1 6 series
P C D - 1 6 series

Downloads

FAQ

Can the PCD-16-350B power a 350mA LED downlight from 180-295VAC mains?

Yes, if the fixture requires 350mA constant current and its LED load stays within the 24-48V constant current range. This B version is for 180-295VAC input, which is the key input-side difference to watch. Its output power is 16.8W.

Is this model suitable for small LED arrays with a longer series voltage requirement?

Yes, that is where this driver is usually a better fit than lower-voltage constant current models, as long as the array needs 350mA and falls within 24-48V. The higher CC voltage range supports longer series LED arrangements than 8-12V or 12-16V drivers. It remains a constant current driver, not a constant voltage unit.

Can I use the PCD-16-350B for indoor illuminated signage with constant current LED modules?

It can be used for indoor signage applications when the LED modules are designed for 350mA constant current and the full load voltage is within 24-48V. Its IP42 housing makes protected indoor placement more appropriate than exposed outdoor use. TRIAC dimming may also be relevant for compatible dimmed signage or display lighting.

How do I size the LED load for this driver?

Match the load to 350mA constant current and make sure the total LED forward voltage is within the 24-48V CC range. The number of LEDs depends on the forward voltage of each LED, so the acceptable series length changes by LED type. If the load is designed for constant voltage, this is not the right driver.

What kind of environment is the PCD-16-350B intended for?

This model is intended for protected environments, with an IP42 case and an operating temperature range of -30°C to +60°C. That supports a wide range of indoor ambient temperatures, but not direct wet exposure. Environmental suitability depends on both the ingress rating and the ambient conditions.
