Mean Well

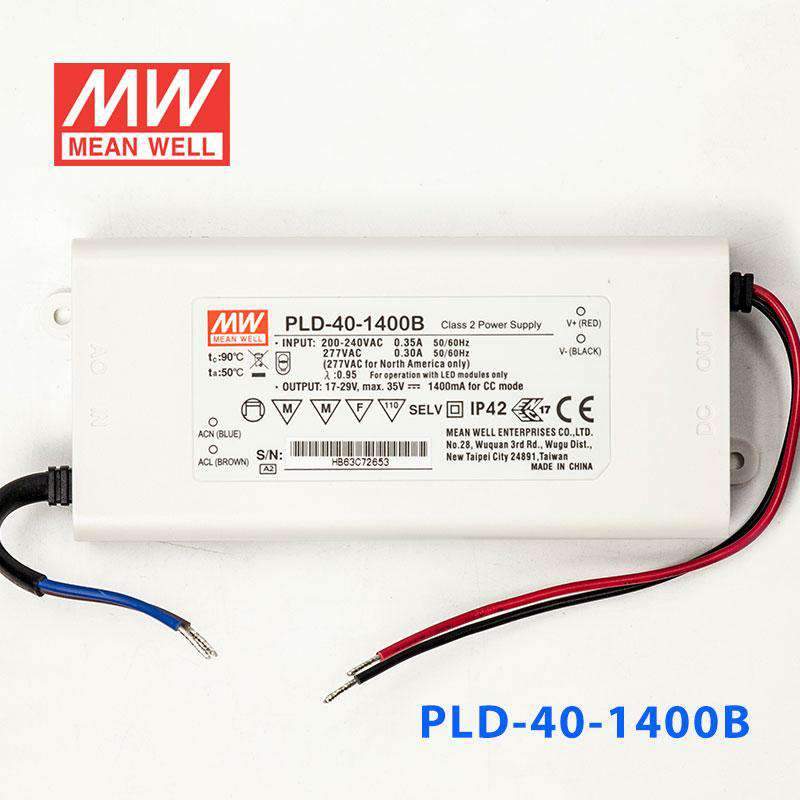

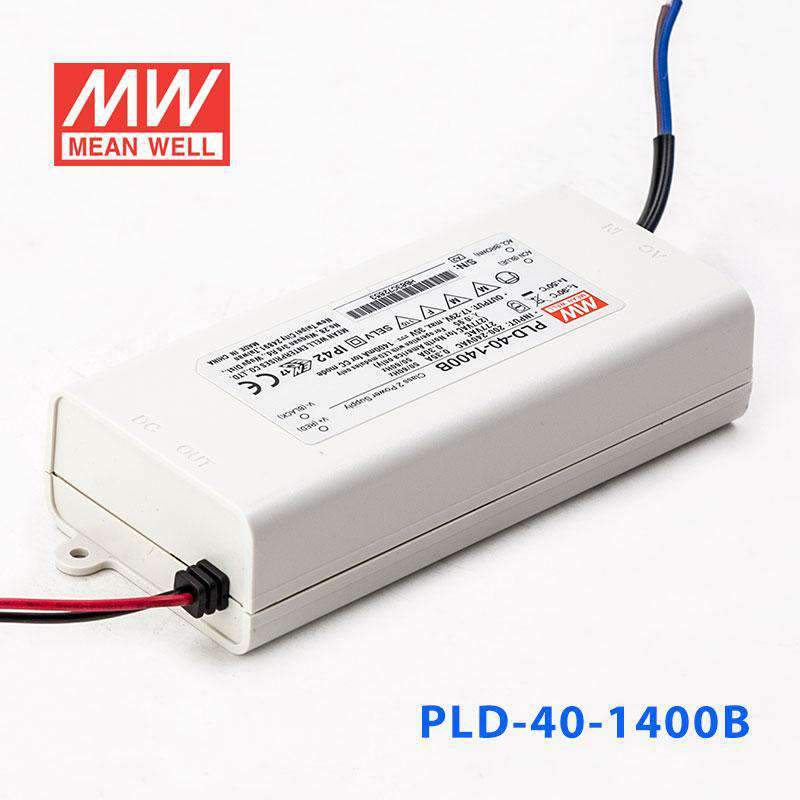

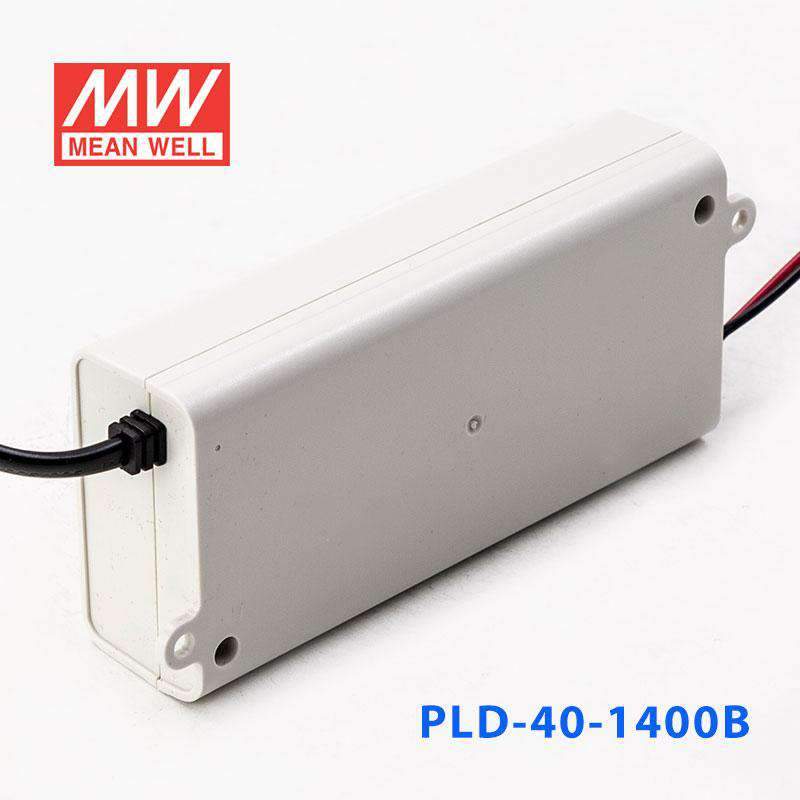

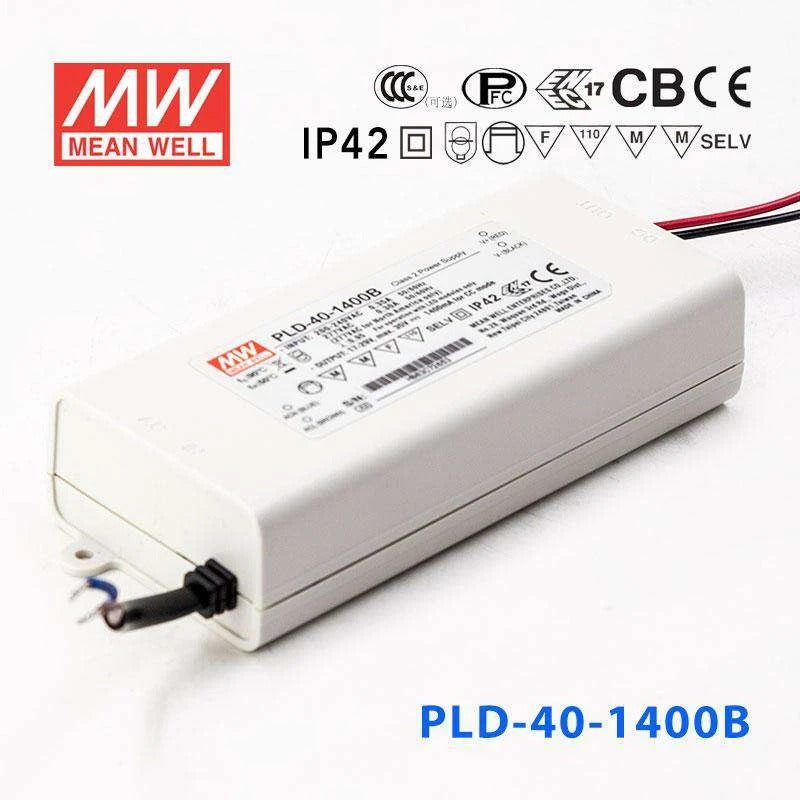

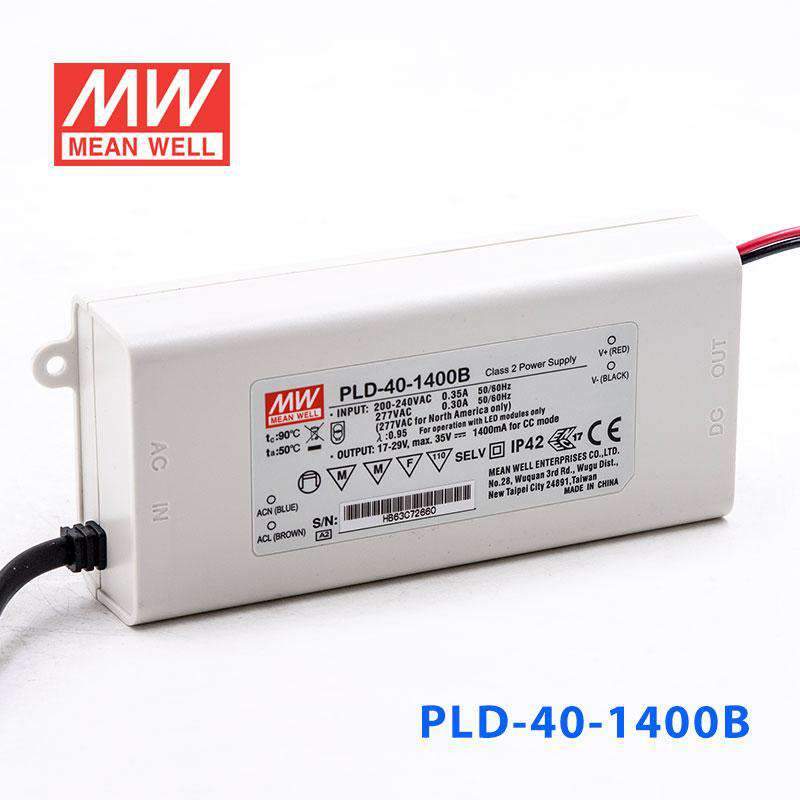

Mean Well PLD-40-1400B Power Supply 40W 1400mA

plastic caseIP42Class II design without FG
SKU PLD-40-1400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-40-1400B is the model of this series: rated current 1400mA, rated power 40.6W, typical efficiency 86%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-40-1400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
17 ~ 29V
CURRENT ACCURACY
±5.0%
RATED POWER
40.6W
RIPPLE & NOISE (max.)Note.1
2.5Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 350B,700B,1050B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4826.5K hrs min. Telcordia SR-332 (Bellcore) ; 865.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.22Kg;30pcs/7.6Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-40-1400B Mechanical Specification
Mechanical Specification
PLD-40-1400B Block Diagram
Block Diagram
PLD-40-1400B Power Factor Characteristic
Power Factor Characteristic
PLD-40-1400B EFFICIENCY vs LOAD (PLD-40-500B)
EFFICIENCY vs LOAD (PLD-40-500B)

Downloads

FAQ

Can I use the PLD-40-1400B for a 1400mA LED downlight?

Yes, it is designed for constant current LED loads at 1400mA. It matches downlights whose total forward voltage falls inside the 17-29V CC range and whose total load stays within 40.6W.

Is the PLD-40-1400B a fit for compact COB arrays?

It can be used with compact COB or small LED arrays that require 1400mA constant current drive. The LED load must have a combined forward voltage between 17V and 29V, and it is not intended for constant voltage products.

Can this model power constant current signage modules?

Yes, provided the signage modules are specified for 1400mA constant current operation. The full module string must remain within the 17-29V CC range and below the 40.6W output level.

Is the PLD-40-1400B suitable for indoor fixtures exposed to cooler or warmer conditions?

The driver is rated for operation from -30°C to +50°C, which supports a wide indoor temperature range. Its IP42 housing is intended for protected environments rather than direct outdoor exposure or washdown areas.

What determines whether my LEDs are compatible with the PLD-40-1400B?

Compatibility depends on using a constant current 1400mA LED load whose total forward voltage sits within the 17-29V CC range. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.

What is the main difference between the PLD-40-1400B and nearby PLD options?

The PLD-40-1400B outputs 1400mA across 17-29V and is rated at 40.6W. In the same series, PLD-40-1050B is 1050mA at 22-38V and 39.9W, while PLD-40-1750B is 1750mA at 13-23V and 40.25W.
