Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

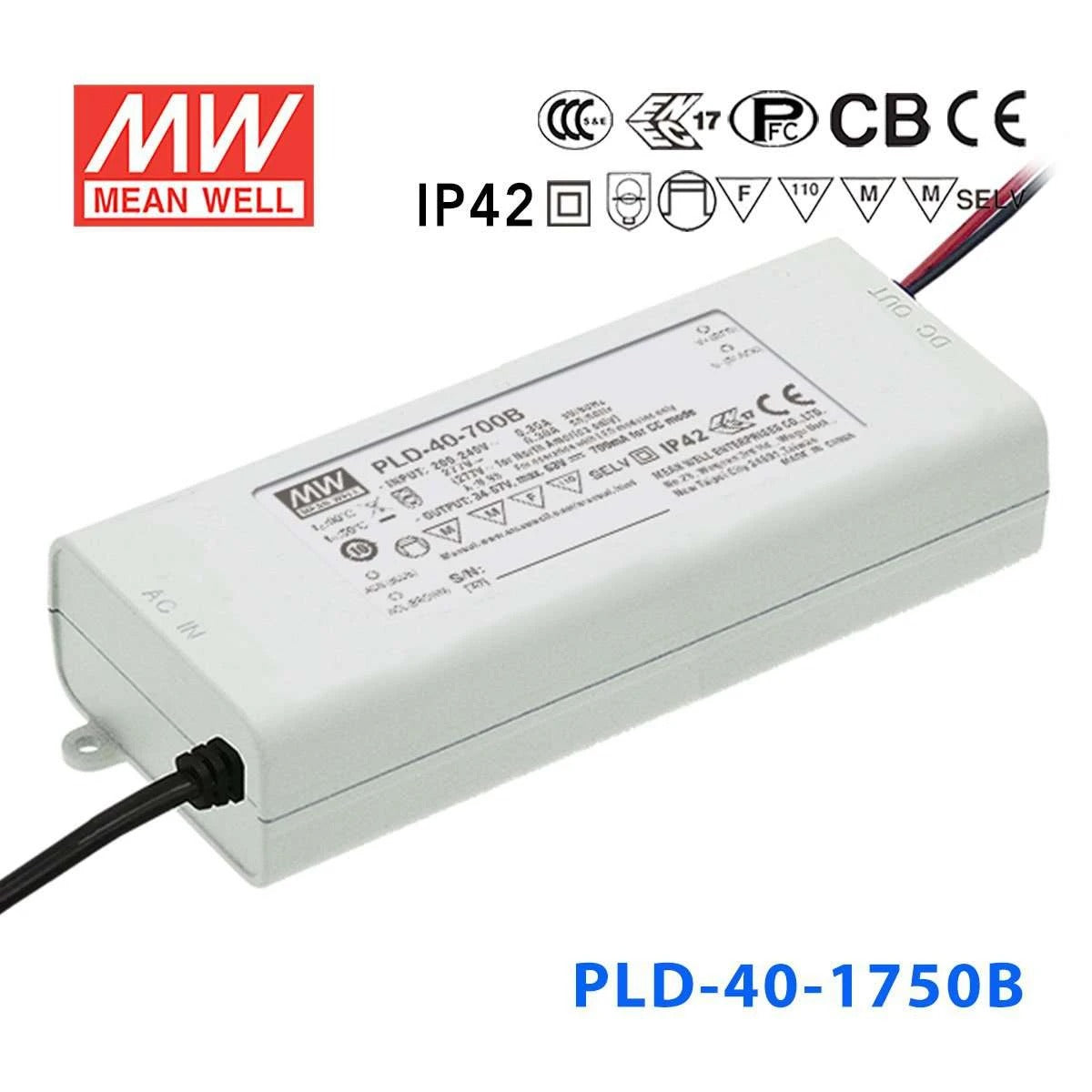

Mean Well PLD-40-1750B Power Supply 40W 1750mA

plastic caseIP42Class II design without FG

SKU:

PLD-40-1750B

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PLD-40 is a 40W Mean Well power converter (input range: 70~108V).

Key Features

✓ Input voltage range: 70~108V
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42
✓ 3 years warranty

Frequently Asked Questions

Can the PLD-40-1750B be used for a high-current LED downlight?

Yes, this driver is intended for constant current LED loads at 1750mA. It fits downlights whose total forward voltage is within the 13-23V CC range and whose total power draw stays within 40.25W.

Is the PLD-40-1750B suitable for dense small LED arrays?

It can be a match for dense small LED arrays that require 1750mA constant current drive. The array's combined forward voltage must stay between 13V and 23V, and it should not be treated as a constant voltage source.

Can I use this driver with compact constant current signage modules?

Yes, if the signage modules are designed for 1750mA constant current operation. The overall LED load must remain inside the 13-23V CC output window and within the 40.25W power rating.

Is the PLD-40-1750B intended for outdoor exposed locations?

No, the IP42 enclosure is better suited to protected indoor use than fully exposed outdoor conditions. It is rated for operating temperatures from -30°C to +50°C, so temperature range is broad even though ingress protection is limited.

How do I know if my LED load will work with the PLD-40-1750B?

This driver supplies constant current at 1750mA with a CC voltage range of 13-23V. The number of LEDs depends on each LED's forward voltage, so the correct match is based on the total forward voltage of the load rather than a stated LED count.

How does the PLD-40-1750B differ from other 40W PLD models?

The PLD-40-1750B provides 1750mA across 13-23V with 40.25W output. Other 40W versions include PLD-40-1400B at 1400mA, 17-29V, 40.6W; PLD-40-1050B at 1050mA, 22-38V, 39.9W; and PLD-40-700B at 700mA, 34-57V, 39.9W.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLD-40-700B Power Supply 40W 700mA	39.9W	57V	0.7A	Indoor	View
Mean Well PLD-40-500B Power Supply 40W 500mA	40W	80V	0.5A	Indoor	View
Mean Well PLD-40-350B Power Supply 40W 350mA	37.8W	108V	0.35A	Indoor	View
Mean Well PLD-40-1400B Power Supply 40W 1400mA	40.6W	29V	1.4A	Indoor	View
Mean Well PLD-40-1050B Power Supply 40W 1050mA	39.9W	38V	1.05A	Indoor	View
