Mean Well

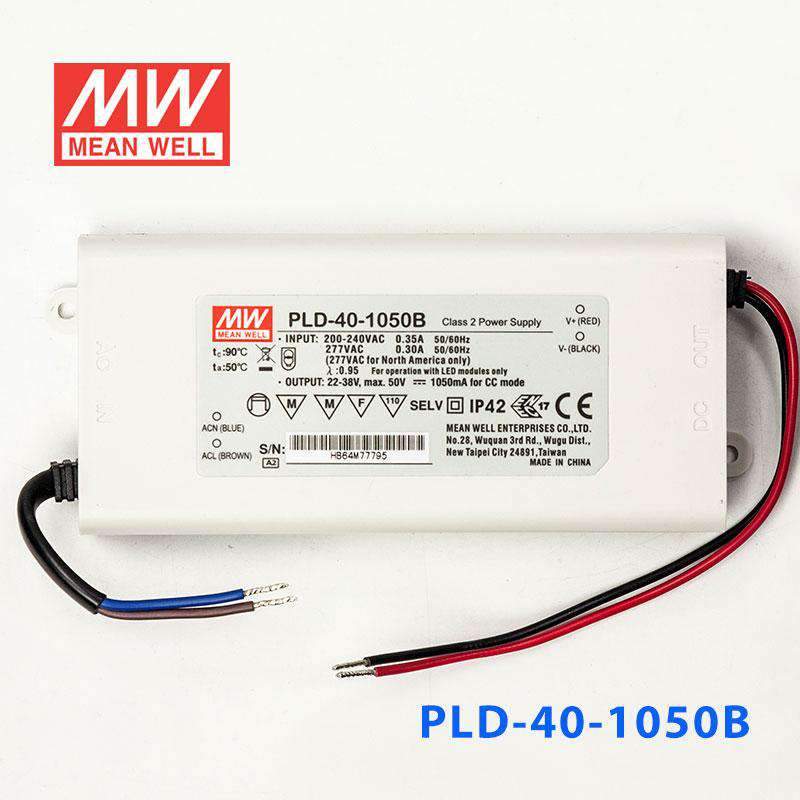

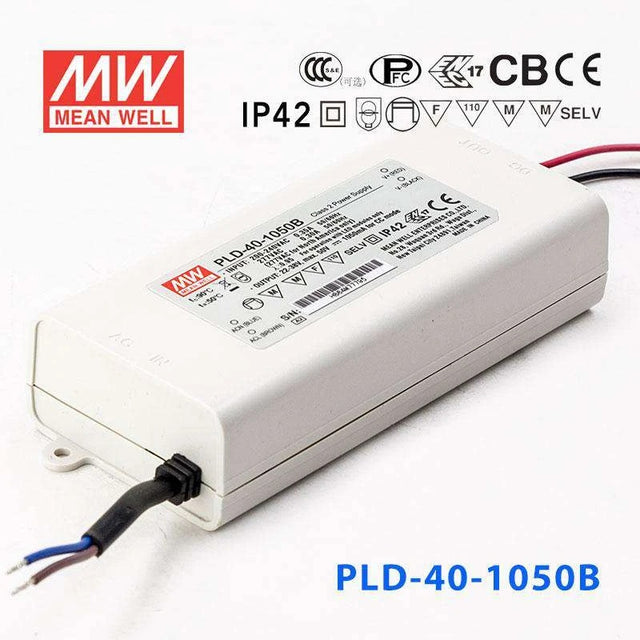

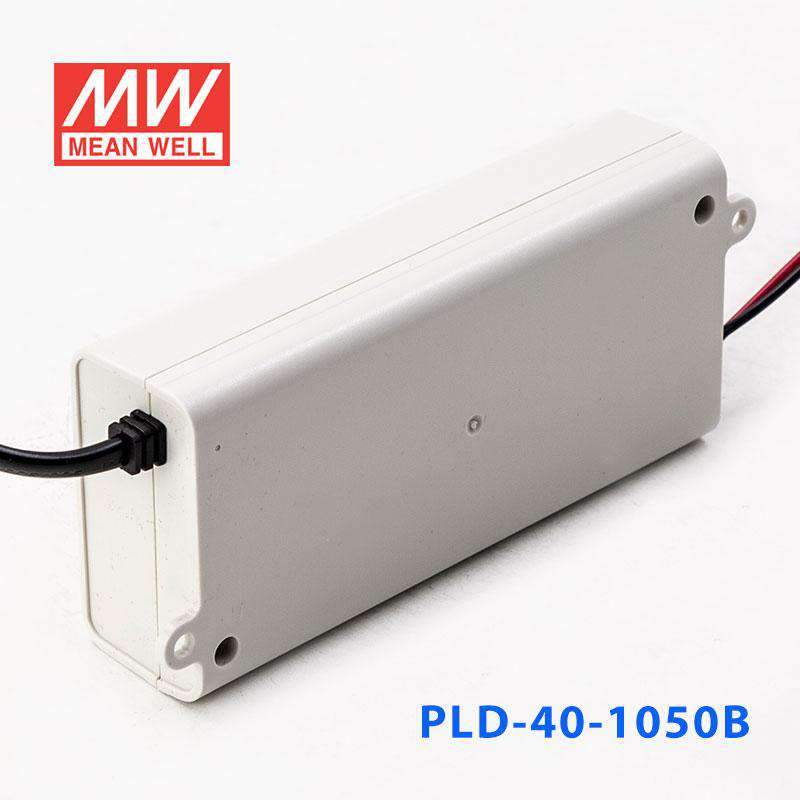

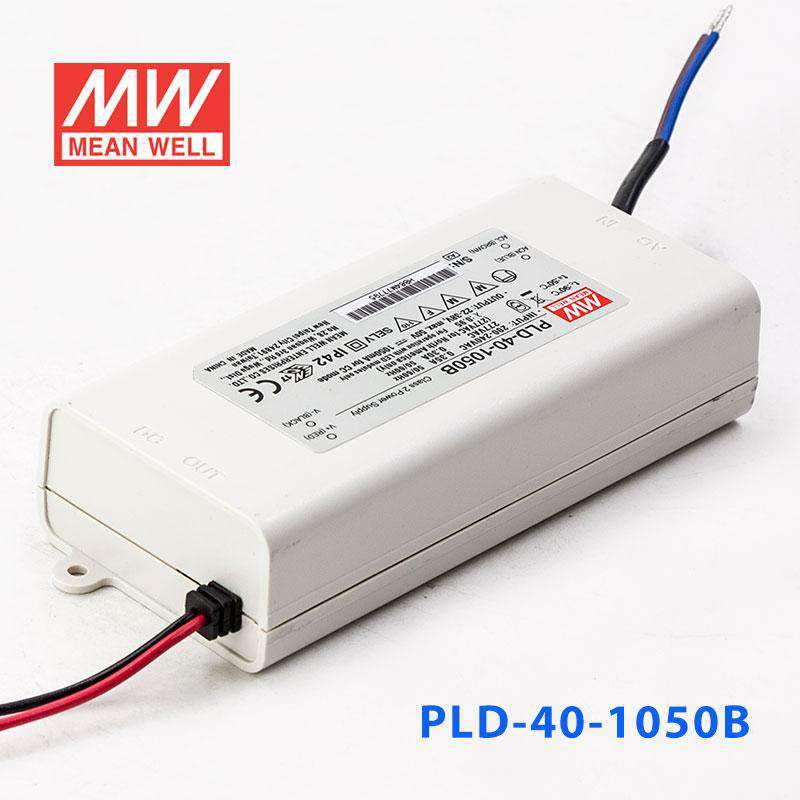

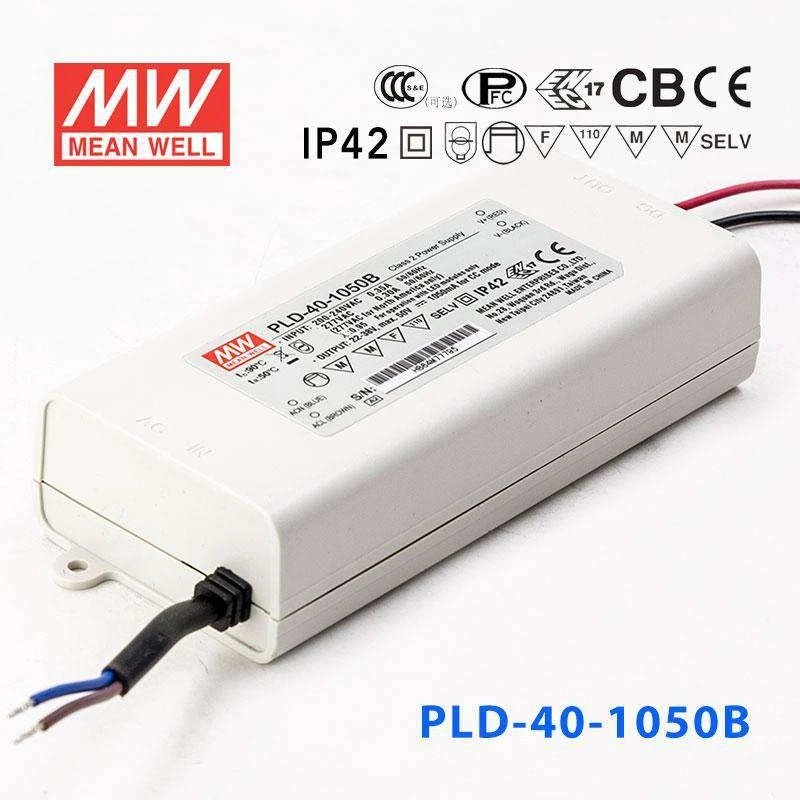

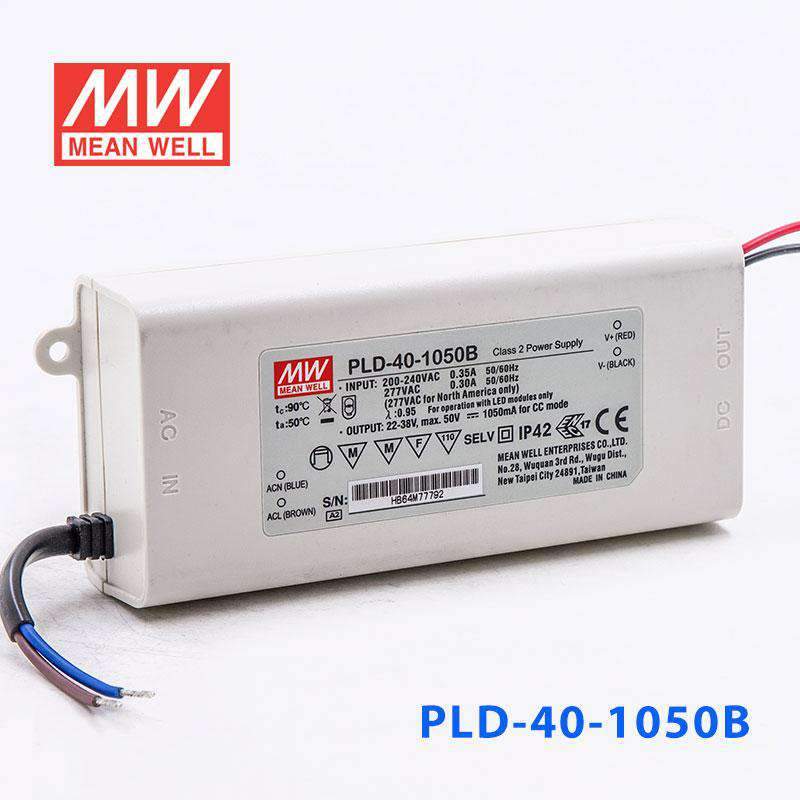

Mean Well PLD-40-1050B Power Supply 40W 1050mA

plastic caseIP42Class II design without FG
SKU PLD-40-1050B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-40-1050B is the model of this series: rated current 1050mA, rated power 39.9W, typical efficiency 87%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-40-1050BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
22 ~ 38V
CURRENT ACCURACY
±5.0%
RATED POWER
39.9W
RIPPLE & NOISE (max.)Note.1
2.6Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
50V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 350B,700B,1050B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4826.5K hrs min. Telcordia SR-332 (Bellcore) ; 865.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.22Kg;30pcs/7.6Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-40-1050B Mechanical Specification
Mechanical Specification
PLD-40-1050B Block Diagram
Block Diagram
PLD-40-1050B Power Factor Characteristic
Power Factor Characteristic
PLD-40-1050B EFFICIENCY vs LOAD (PLD-40-500B)
EFFICIENCY vs LOAD (PLD-40-500B)

Downloads

FAQ

Can the PLD-40-1050B be used for a 1050mA LED downlight?

Yes, this driver is built for constant current LED loads at 1050mA. It fits downlights whose total forward voltage is within the 22-38V CC range and whose load remains within the 39.9W rating.

Is the PLD-40-1050B suitable for higher-power small LED arrays?

It can be a fit for small LED arrays that need 1050mA constant current rather than constant voltage input. The array's combined forward voltage must stay between 22V and 38V, with total power up to 39.9W.

Can this driver be used in signage with constant current LED modules?

Yes, if the signage modules are designed for constant current operation at 1050mA. It should not be used in place of a constant voltage supply, and the load must stay within the 22-38V CC window.

Is the PLD-40-1050B appropriate for protected indoor environments?

Its IP42 rating makes it better suited for protected indoor locations than exposed outdoor use. The rated operating temperature is -30°C to +50°C (see the derating curve), which supports a broad range of indoor commercial and industrial fixture conditions.

How do I check compatibility with the PLD-40-1050B?

This model provides 1050mA constant current with a CC output range of 22-38V. The number of LEDs depends on each LED's forward voltage, so compatibility depends on the total forward voltage of the LED load, not a fixed LED count.

How does the PLD-40-1050B compare with other 40W PLD drivers?

The PLD-40-1050B delivers 1050mA with a 22-38V CC range and 39.9W output. Other 40W siblings include PLD-40-1400B at 1400mA, 17-29V, 40.6W; PLD-40-1750B at 1750mA, 13-23V, 40.25W; PLD-40-700B at 700mA, 34-57V, 39.9W; PLD-40-500B at 500mA, 45-80V, 40W; and PLD-40-350B at 350mA, 70-108V, 37.8W.
