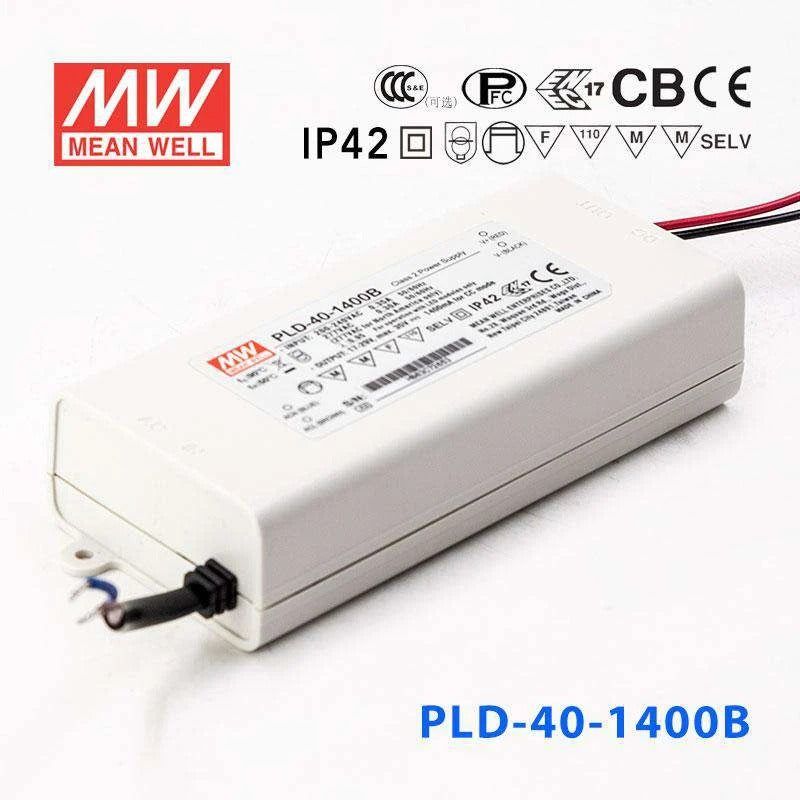

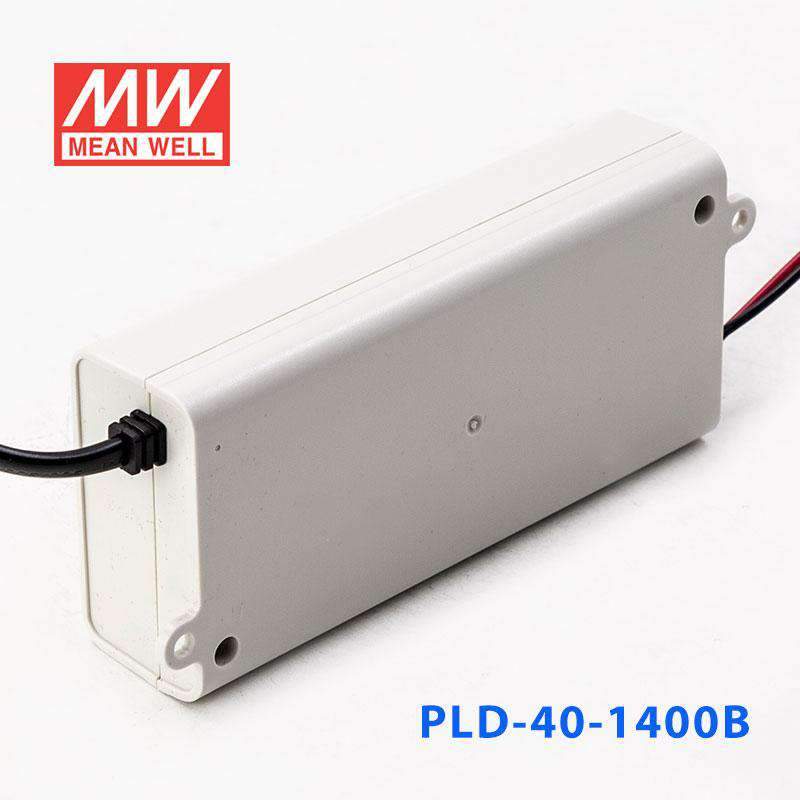

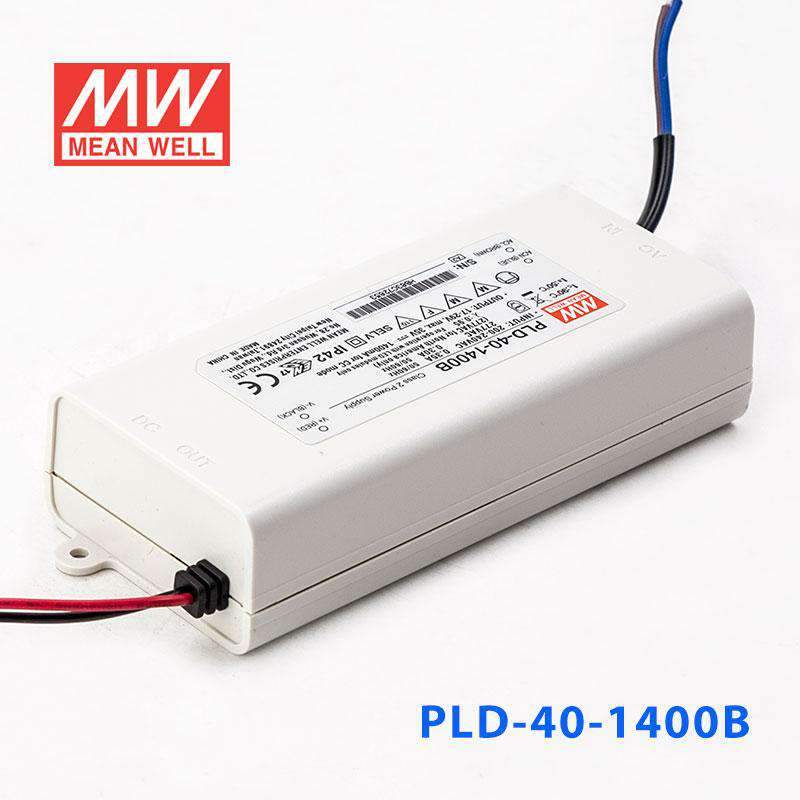

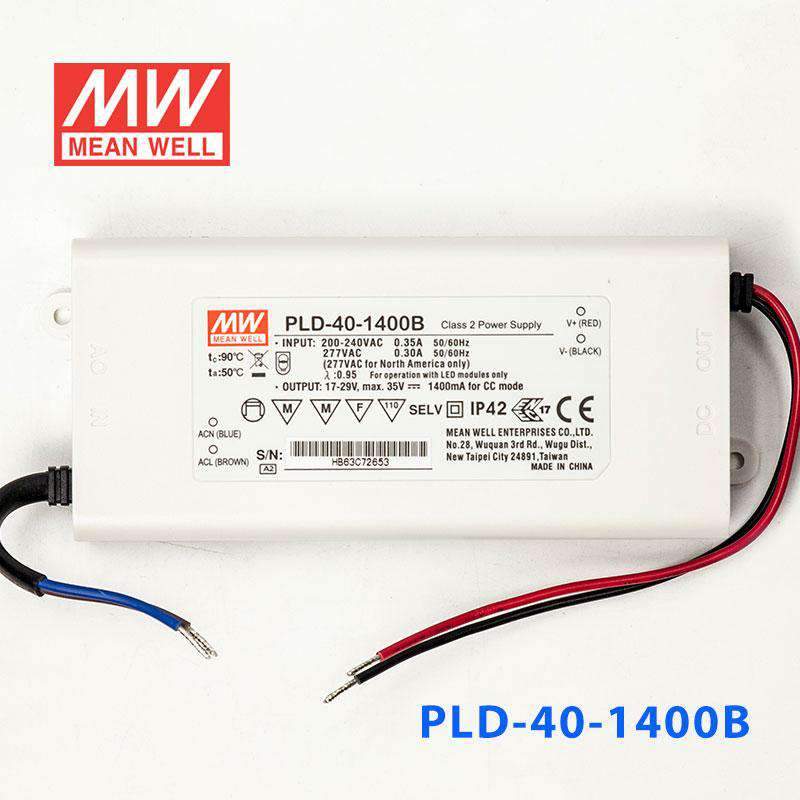

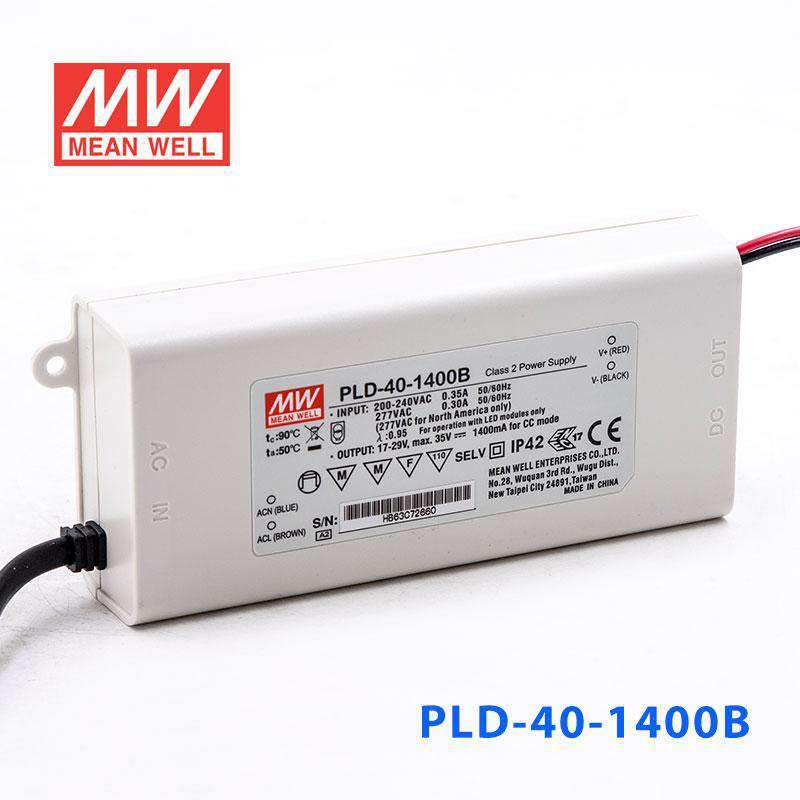

Mean Well PLD-40-1400B Power Supply 40W 1400mA

plastic case, IP42, Class II design without FG
SKU:
PLD-40-1400B

|

Description

Features

115VAC or 230VAC input
Built-in active PFC function
Fully isolated plastic case
Constant current design
IP42 design
Class II power unit, no FG
Low cost
Protections: Short circuit / Over temperature
Suitable for indoor LED lighting applications
Cooling by free air convection
3 years warranty

General Specification

AC input voltage range 230VAC (180 ~ 295VAC)
AC inrush current (max.) Cold start, 25A at 230VAC
Withstand voltage I / P - O / P: 3.75 k VAC
Short circuit protection Hiccup mode, auto-recovery
Over Temp. Protection 95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature -30 ~ + 50ºC
Safety standards ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input H03VVH2-F 0.75mm² x2C (7.5cm)
Connection Output UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm) 128x 60x 31.5

Specifications

  • Brand
    Mean Well
  • Series
    PLD Series
  • Power Rating
    40.6 Watt
  • Output Voltage
    29 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    180V~295V
  • Standards Met
    CB,CE,cUL,EAC,ENEC,FCC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~50°C
  • Warranty
    3 Year
  • Length
    12.7 cm
  • Width
    6 cm
  • Height
    3.15 cm
  • Weight
    0.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8421032067371, "variants" :[{ "context":"default", "variant_id": 45622458482987, "sku":"PLD-40-1400B", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

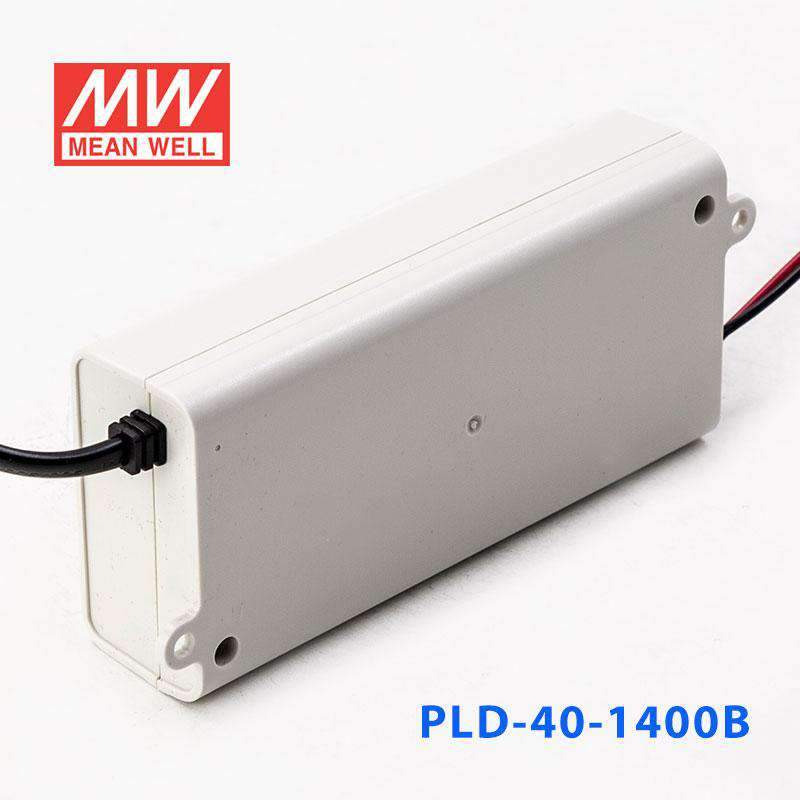

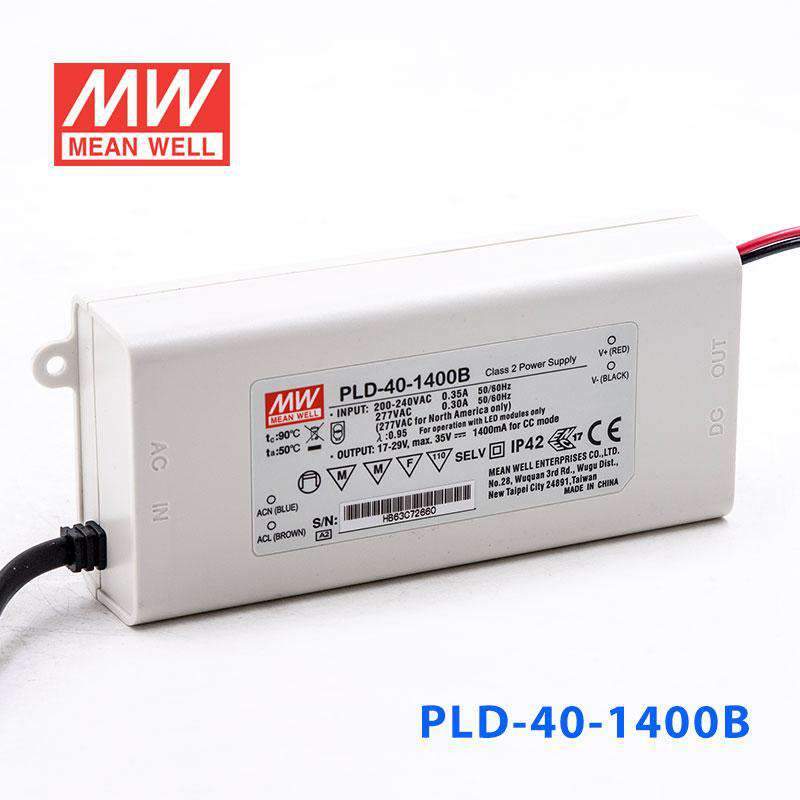

Mean Well PLD-40-1400B Power Supply 40W 1400mA
