Mean Well

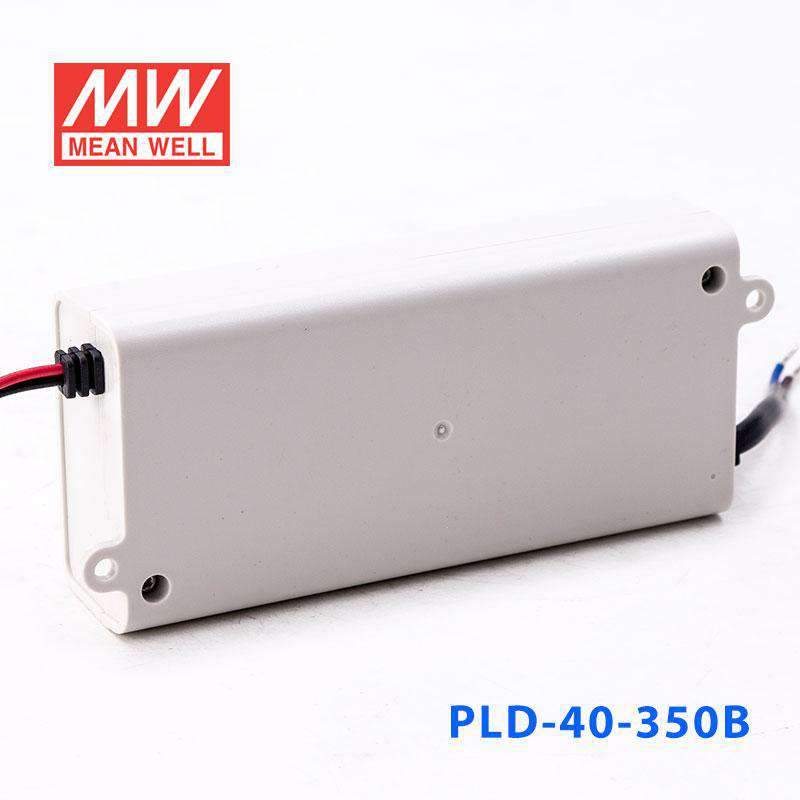

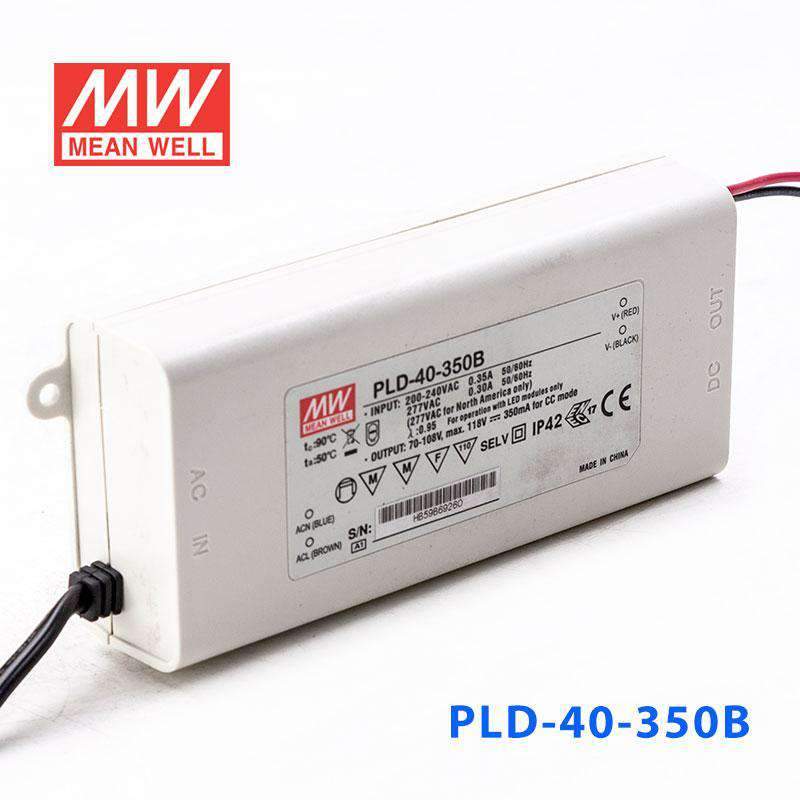

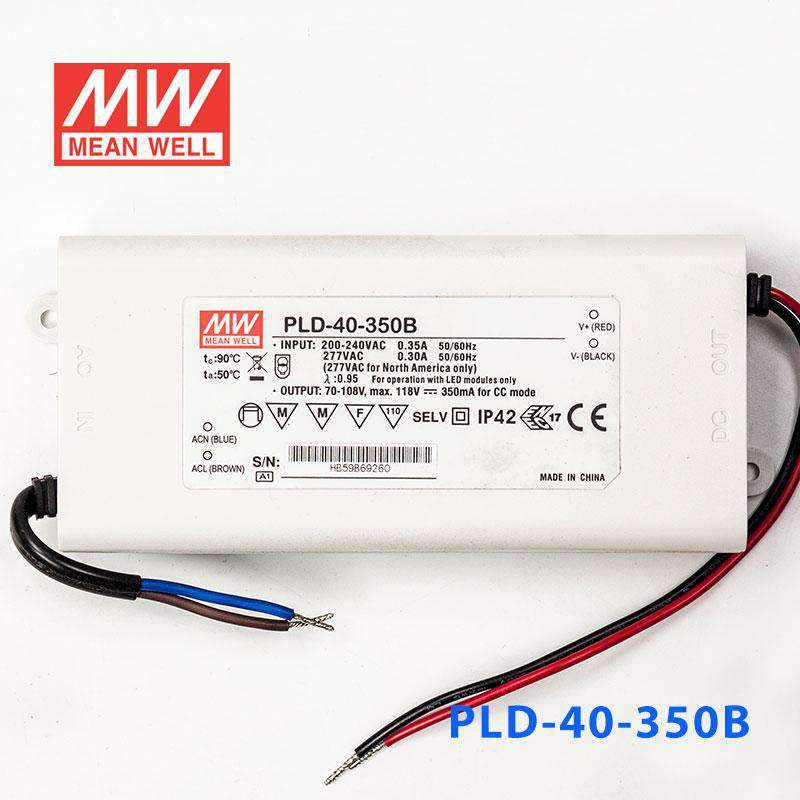

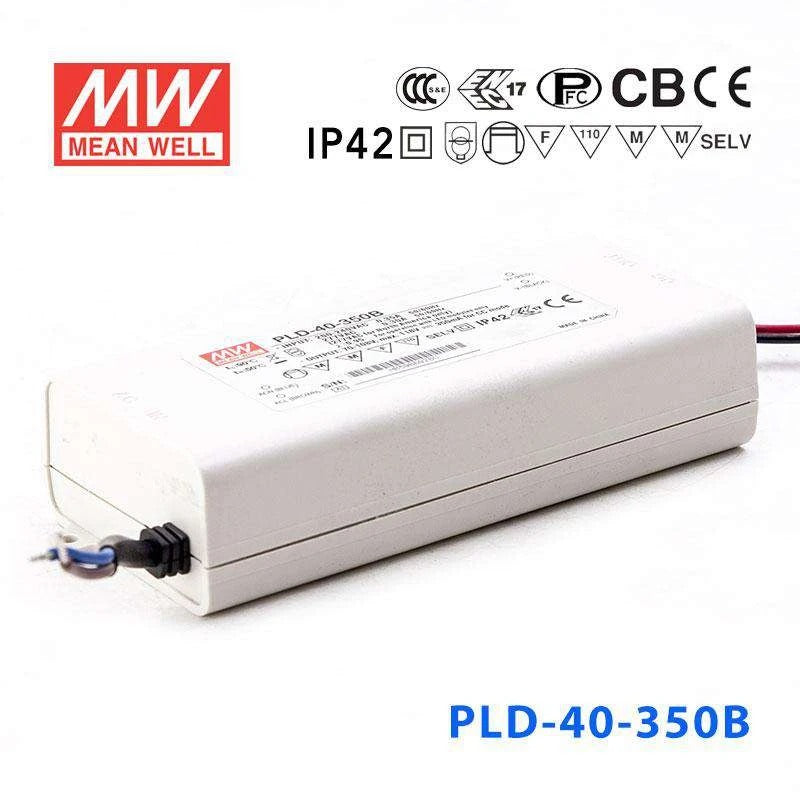

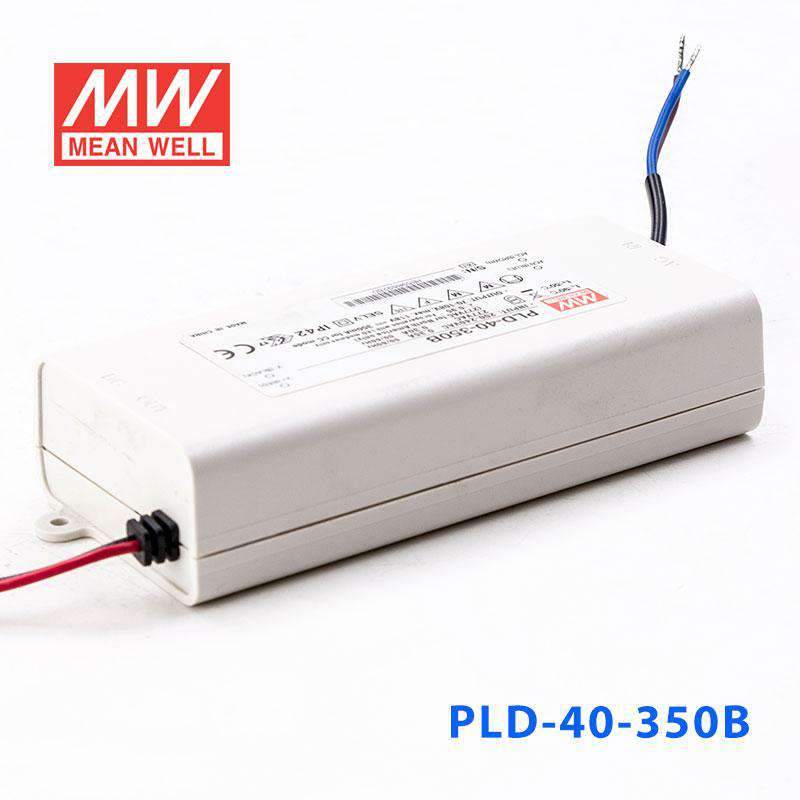

Mean Well PLD-40-350B Power Supply 40W 350mA

plastic caseIP42Class II design without FG
SKU PLD-40-350B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PLD-40-350B is the model of this series: rated current 350mA, rated power 37.8W, typical efficiency 88%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-40-350BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
350mA
OPERATING VOLTAGE RANGE
70 ~ 108V
CURRENT ACCURACY
±5.0%
RATED POWER
37.8W
RIPPLE & NOISE (max.)Note.1
9.5Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
118V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 350B,700B,1050B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4826.5K hrs min. Telcordia SR-332 (Bellcore) ; 865.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.22Kg;30pcs/7.6Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-40-350B Mechanical Specification
Mechanical Specification
PLD-40-350B Block Diagram
Block Diagram
PLD-40-350B Power Factor Characteristic
Power Factor Characteristic
PLD-40-350B EFFICIENCY vs LOAD (PLD-40-500B)
EFFICIENCY vs LOAD (PLD-40-500B)

Downloads

FAQ

Can I use the PLD-40-350B for LED downlights?

Yes, if the downlight is designed for constant current operation at 350mA and the LED load falls within the 70-108V constant current range. This driver delivers up to 37.8W, so it is better suited to higher-forward-voltage downlight arrays than low-voltage constant voltage products.

Is the PLD-40-350B suitable for LED signage modules?

It can work for signage modules that are built as a constant current 350mA load and stay within the 70-108V CC output range. It is not a constant voltage driver, so it should not be matched to signage products that expect a fixed voltage output.

Can this driver power a small LED array with a long series string?

Yes, this model is a fit for small LED arrays that need 350mA constant current and have a combined forward voltage within 70-108V. The 108V upper end of its CC range makes it more appropriate for longer series LED loads than lower-voltage constant current drivers in the same family.

Is the PLD-40-350B a good replacement for a 350mA constant current driver in an indoor fixture?

It is a reasonable replacement when the original driver was also constant current at 350mA and the fixture's LED load operates in the 70-108V range. You also need to stay within the 37.8W rating and the physical size of 128 x 60 x 31.5 mm.

How do I know if my LED load is compatible with the PLD-40-350B?

Compatibility depends on matching the output current and the driver's constant current voltage window. This unit supplies 350mA over 70-108V, and the number of LEDs depends on each LED's forward voltage, so it should be used with constant current loads rather than constant voltage strips or modules.

Is the PLD-40-350B suitable for damp or dusty locations?

It is IP42 approved, rated for -30°C to +50°C (see the derating curve) and 20-95% RH non-condensing, so it fits protected indoor environments without condensation. It is not intended for fully exposed outdoor conditions where a higher IP rating would normally be required.
