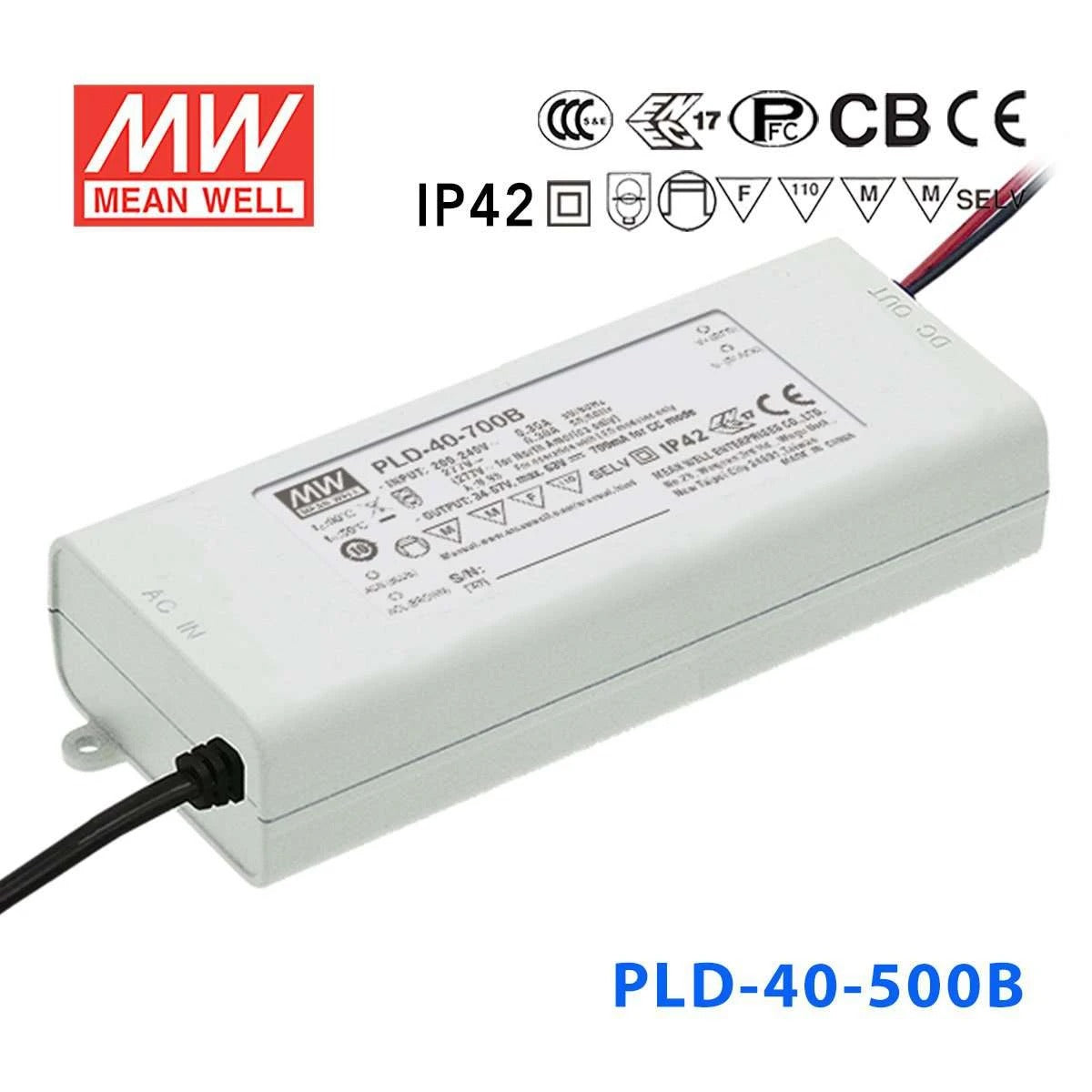

Mean Well PLD-40-500B Power Supply 40W 500mA

plastic caseIP42Class II design without FG
SKU PLD-40-500B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-40-500B is the model of this series: rated current 500mA, rated power 40W, typical efficiency 88%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-40-500BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
500mA
OPERATING VOLTAGE RANGE
45 ~ 80V
CURRENT ACCURACY
±5.0%
RATED POWER
40W
RIPPLE & NOISE (max.)Note.1
5.0Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
100V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 350B,700B,1050B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4826.5K hrs min. Telcordia SR-332 (Bellcore) ; 865.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.22Kg;30pcs/7.6Kg/0.58CUFT
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-40-500B Mechanical Specification
Mechanical Specification
PLD-40-500B Block Diagram
Block Diagram
PLD-40-500B Power Factor Characteristic
Power Factor Characteristic
PLD-40-500B EFFICIENCY vs LOAD (PLD-40-500B)
EFFICIENCY vs LOAD (PLD-40-500B)

Downloads

FAQ

Can I use the PLD-40-500B for a constant current LED downlight?

Yes, if the downlight requires 500mA constant current and the LED load stays within the 45-80V CC range. With a 40W rating, it suits mid-voltage downlight assemblies better than constant voltage LED products.

Is the PLD-40-500B suitable for signage lighting modules?

It can be used for signage modules that are specified for constant current 500mA operation and fall within the 45-80V output range. It should not be used as a substitute for a constant voltage supply because this model regulates current, not fixed voltage.

Will the PLD-40-500B work for a compact LED array?

Yes, for a small LED array that is designed around 500mA constant current and a total forward voltage between 45V and 80V. The 40W power level gives more headroom than lower-power drivers when the array voltage and current match this model.

Can the PLD-40-500B replace another 500mA LED driver in a commercial light?

It can, provided the existing light uses a constant current 500mA driver and the LED load is within the 45-80V operating window. The replacement check should also include the 40W rating and the housing size of 128 x 60 x 31.5 mm.

What makes an LED load compatible with the PLD-40-500B?

The load must require 500mA constant current and operate within the 45-80V constant current range. The exact number of LEDs depends on each LED's forward voltage, which is why this driver is matched by current and voltage window rather than by a fixed LED count.

Can the PLD-40-500B be used in harsher indoor conditions?

It is IP42 approved and rated for -30°C to +50°C (see the derating curve) and 20-95% RH non-condensing, so it suits protected indoor use without condensation. It is not intended as an exposed outdoor driver, so the environment should match the IP42 protection level.
