Mean Well

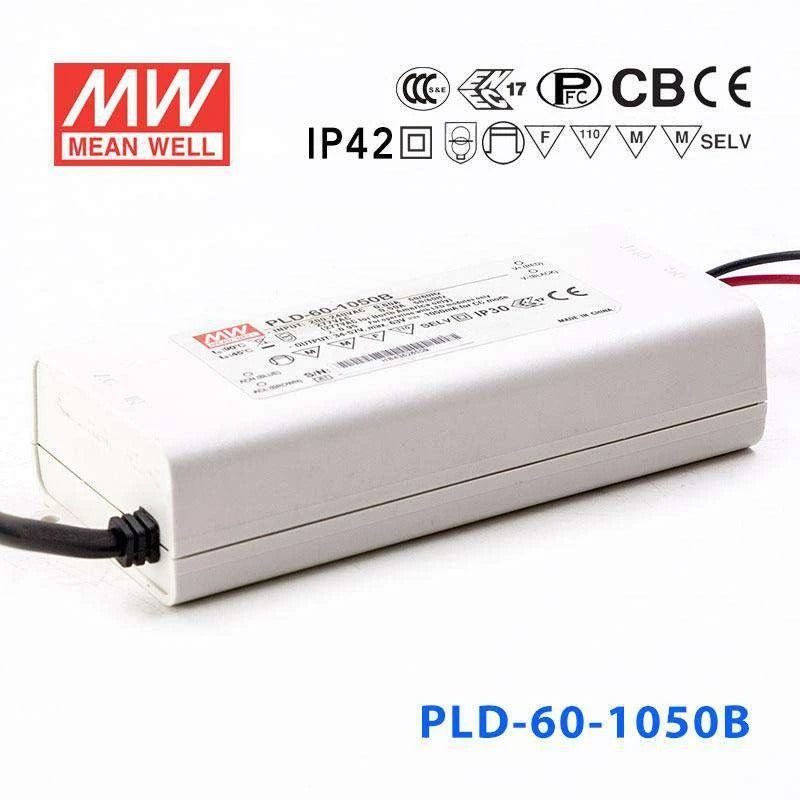

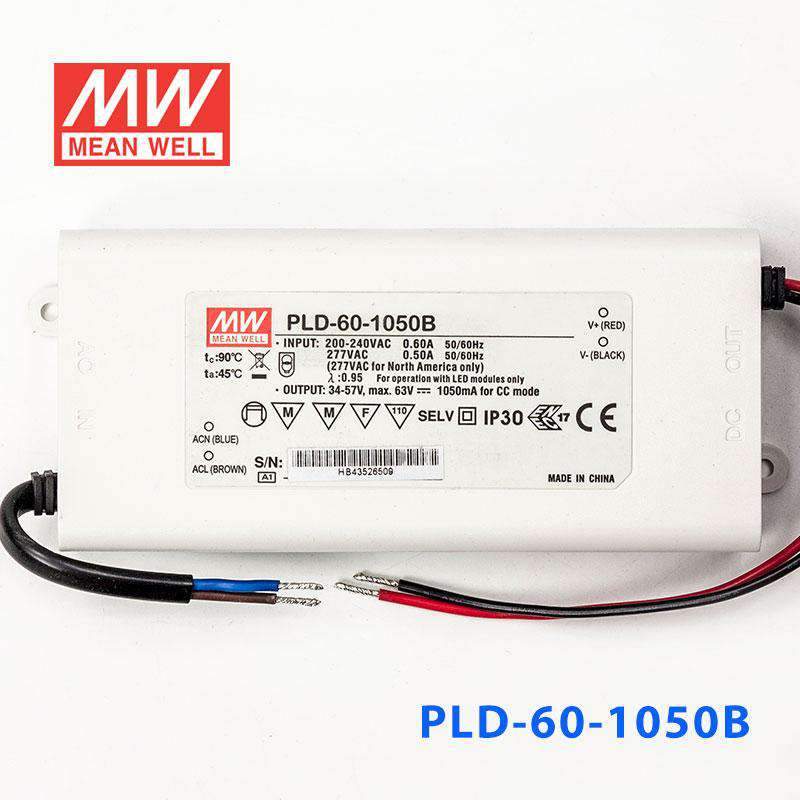

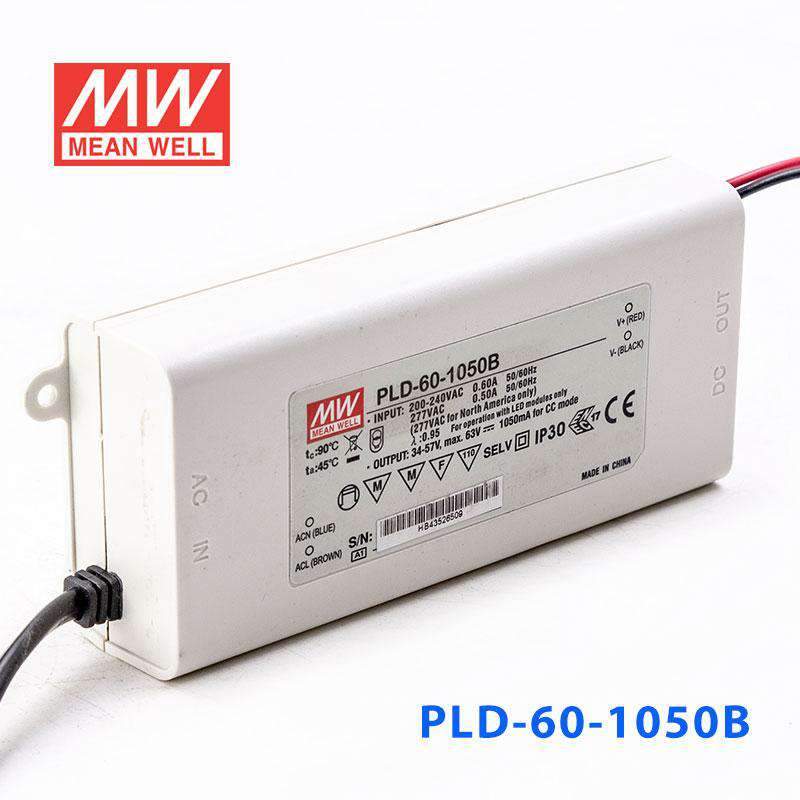

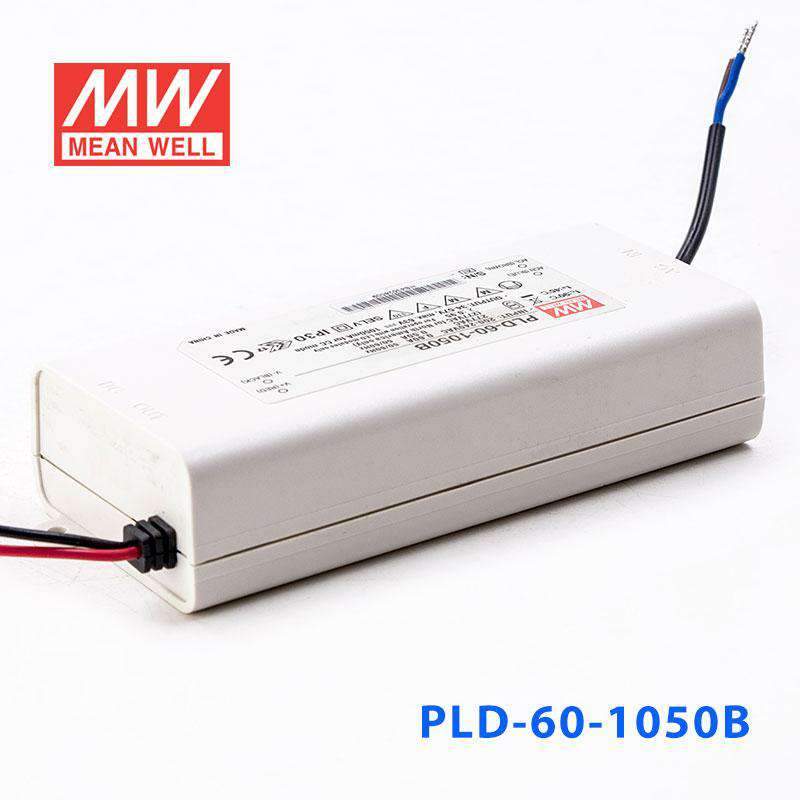

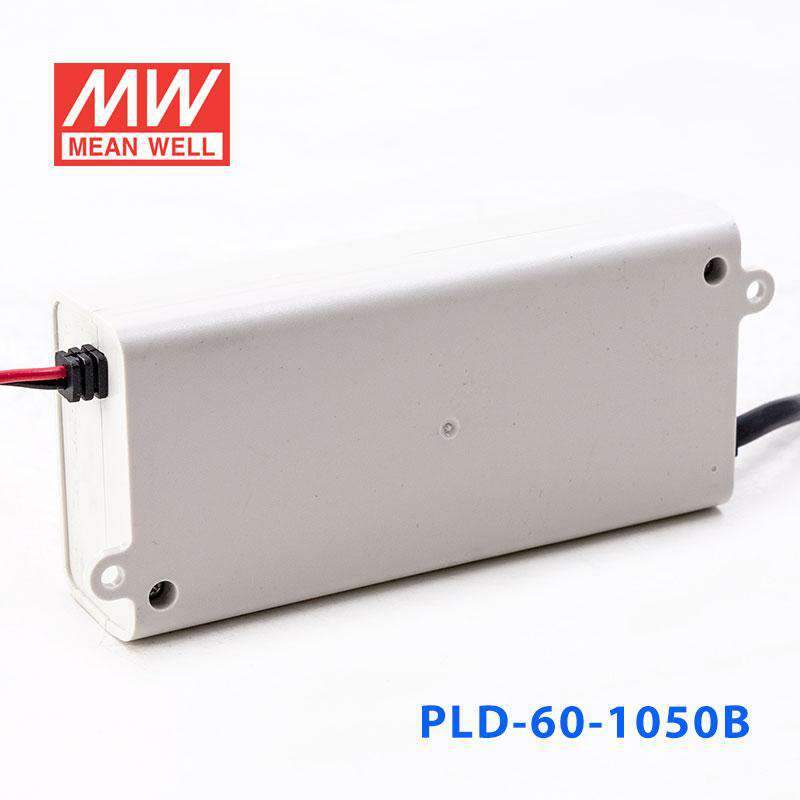

Mean Well PLD-60-1050B Power Supply 60W 1050mA

plastic caseIP42Class II design without FG
SKU PLD-60-1050B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-1050B is the model of this series: rated current 1050mA, rated power 59.85W, typical efficiency 87%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-1050BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1050mA
OPERATING VOLTAGE RANGE
34 ~ 57V
CURRENT ACCURACY
±5.0%
RATED POWER
59.85W
RIPPLE & NOISE (max.)Note.1
3.8Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
63V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-1050B Mechanical Specification
Mechanical Specification
PLD-60-1050B Block Diagram
Block Diagram
PLD-60-1050B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-1050B for a high-output LED downlight?

Yes, if the downlight requires 1050mA constant current and the LED load is within the 34-57V CC range. With a 59.85W rating, it is intended for higher-power downlight assemblies that need around 60W of drive.

Is the PLD-60-1050B suitable for LED signage modules or light engines?

It can be used where the LED module is designed for 1050mA constant current and operates between 34V and 57V. It is not a constant voltage supply, so it should only be paired with constant current LED loads.

Will this driver work for a small LED array with more power demand?

Yes, for a small LED array that needs 1050mA and stays within the 34-57V operating window. The 59.85W rating provides ample output capacity for arrays in this current class.

Can the PLD-60-1050B replace a 1050mA constant current driver in an indoor luminaire?

It can if the original driver also supplied 1050mA constant current and the fixture's LED forward voltage falls within 34-57V. You should also confirm the 128.0 x 60.0 x 31.5 mm dimensions and the 59.85W power level against the existing design.

How do I check LED compatibility with the PLD-60-1050B?

The LED load must be designed for 1050mA constant current and operate inside the 34-57V CC voltage range. The exact number of LEDs depends on each LED's forward voltage, so this driver is sized by current and voltage window rather than by a fixed LED count.

Is the PLD-60-1050B suitable for indoor environments with moderate moisture or dust?

It is IP42 rated with an operating temperature range of -30°C to +45°C (see the derating curve), so it fits indoor applications with limited environmental exposure. It is not intended for direct outdoor exposure or washdown conditions.
