Mean Well

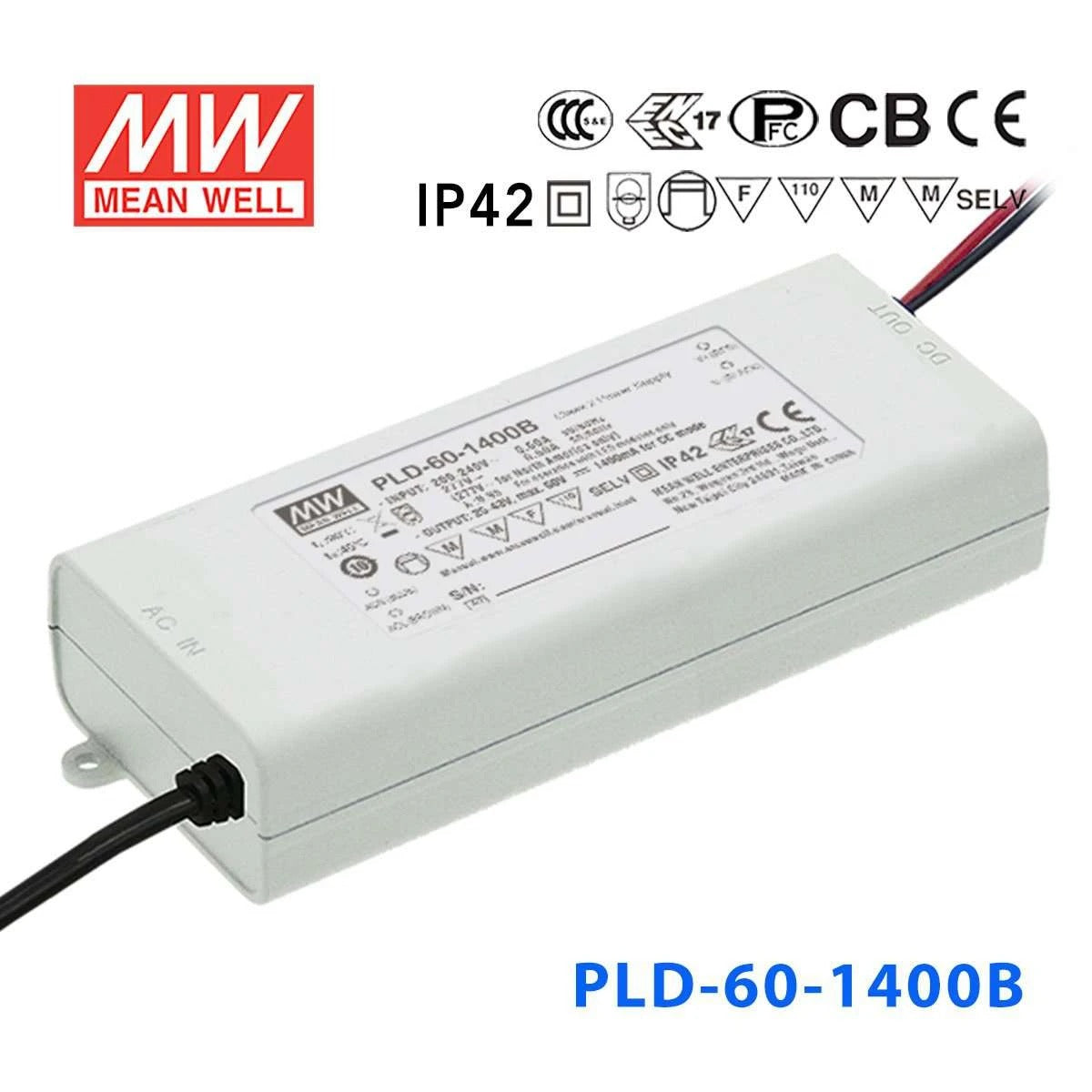

Mean Well PLD-60-1400B Power Supply 60W 1400mA

plastic caseIP42Class II design without FG
SKU PLD-60-1400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-1400B is the model of this series: rated current 1400mA, rated power 60.2W, typical efficiency 86%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-1400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1400mA
OPERATING VOLTAGE RANGE
25 ~ 43V
CURRENT ACCURACY
±5.0%
RATED POWER
60.2W
RIPPLE & NOISE (max.)Note.1
3.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
50V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-1400B Mechanical Specification
Mechanical Specification
PLD-60-1400B Block Diagram
Block Diagram
PLD-60-1400B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-1400B for a high-current LED downlight?

Yes, if the downlight is specified for 1400mA constant current and the LED load falls within the 25-43V CC range. This driver is rated at 60.2W, so it is aimed at higher-output downlight assemblies in a lower-voltage, higher-current range.

Is the PLD-60-1400B suitable for constant current signage modules?

It can work for signage modules or light engines that require 1400mA constant current and operate from 25V to 43V. It should not be used for constant voltage LED products because this unit regulates current rather than providing a fixed DC voltage.

Will the PLD-60-1400B run a compact LED array with higher current demand?

Yes, for a small LED array that is designed for 1400mA and has a combined forward voltage within 25-43V. The 60.2W output suits arrays that need more drive current while staying in a lower-voltage constant current window.

Can this model replace a 1400mA driver in an indoor commercial fixture?

It can, as long as the original driver was also a 1400mA constant current unit and the LED load operates between 25V and 43V. The physical size of 128.0 x 60.0 x 31.5 mm and the 60.2W rating should also be checked before substitution.

How do I size an LED load for the PLD-60-1400B?

The load must require 1400mA constant current and fit within the 25-43V CC voltage range. The number of LEDs depends on each LED's forward voltage, so compatibility is based on current and voltage range instead of a fixed LED quantity.

Can the PLD-60-1400B be used in indoor areas with temperature swings?

Yes, it is rated for -30°C to +45°C (see the derating curve) and carries an IP42 rating. That makes it suitable for indoor environments with moderate temperature variation, but not for fully exposed outdoor or high-water-ingress locations.
