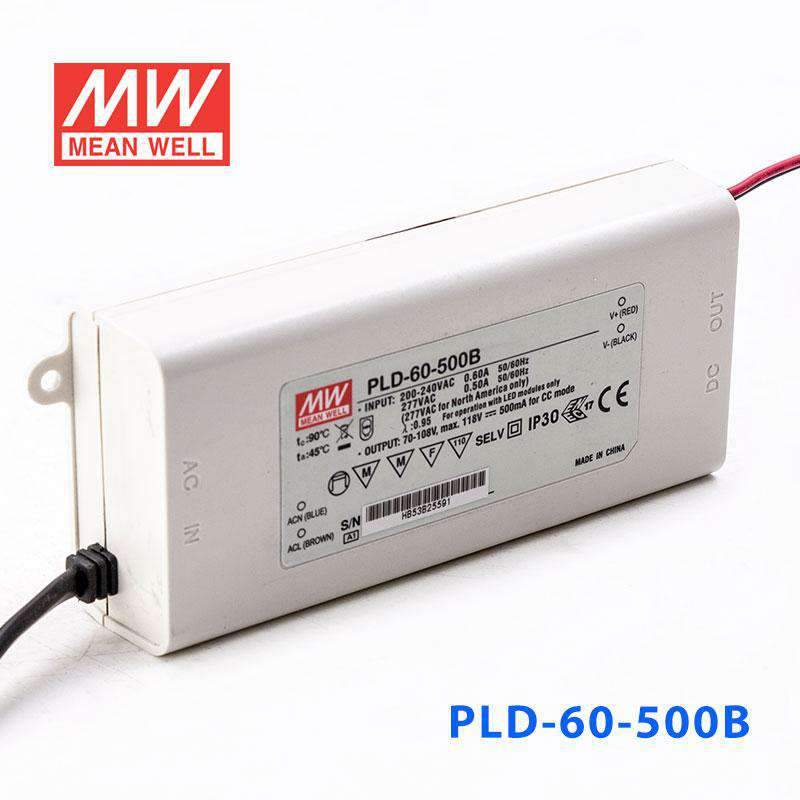

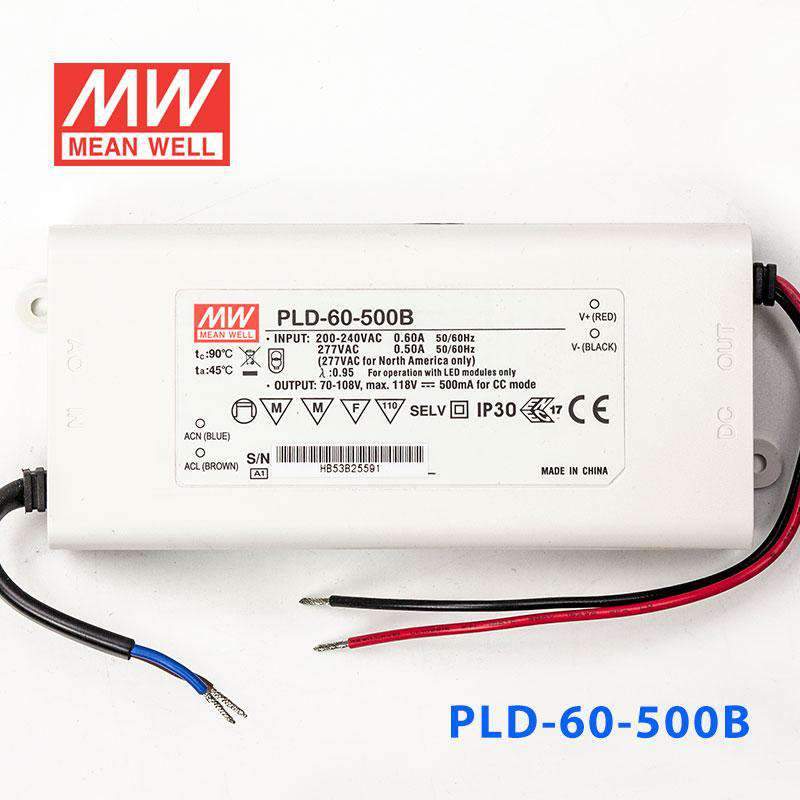

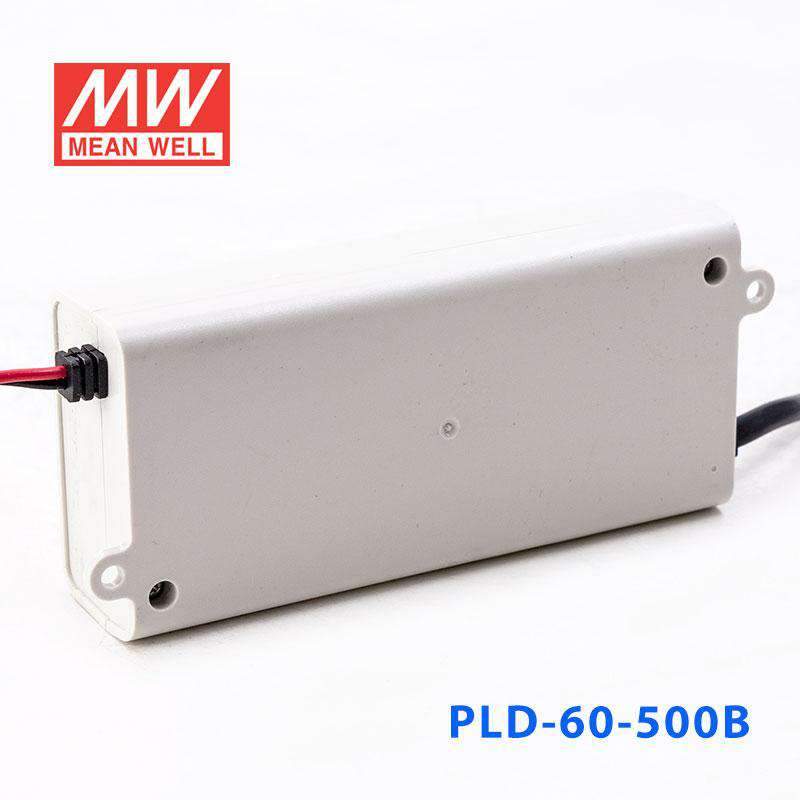

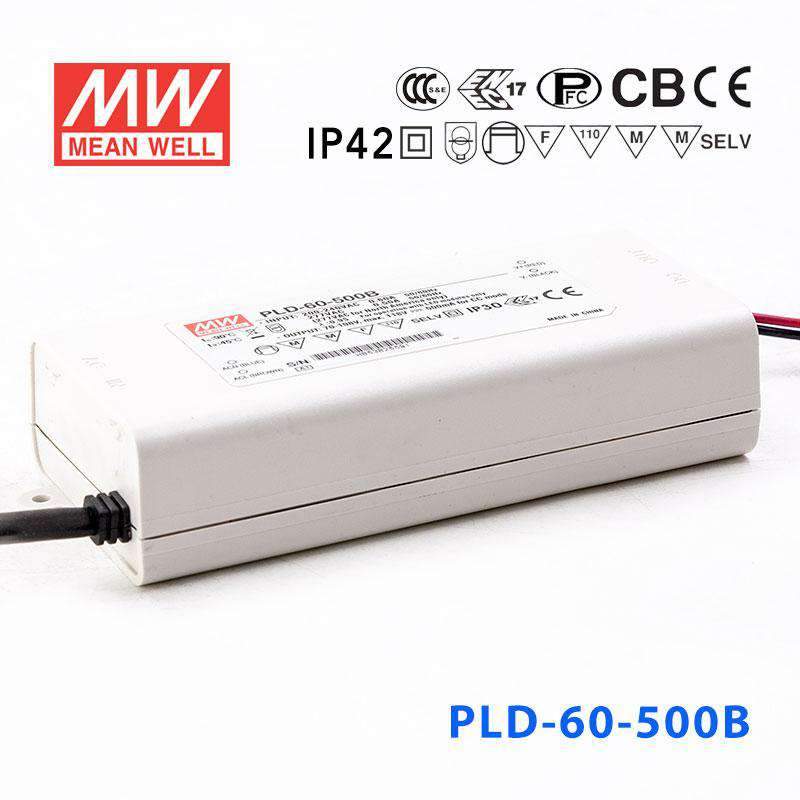

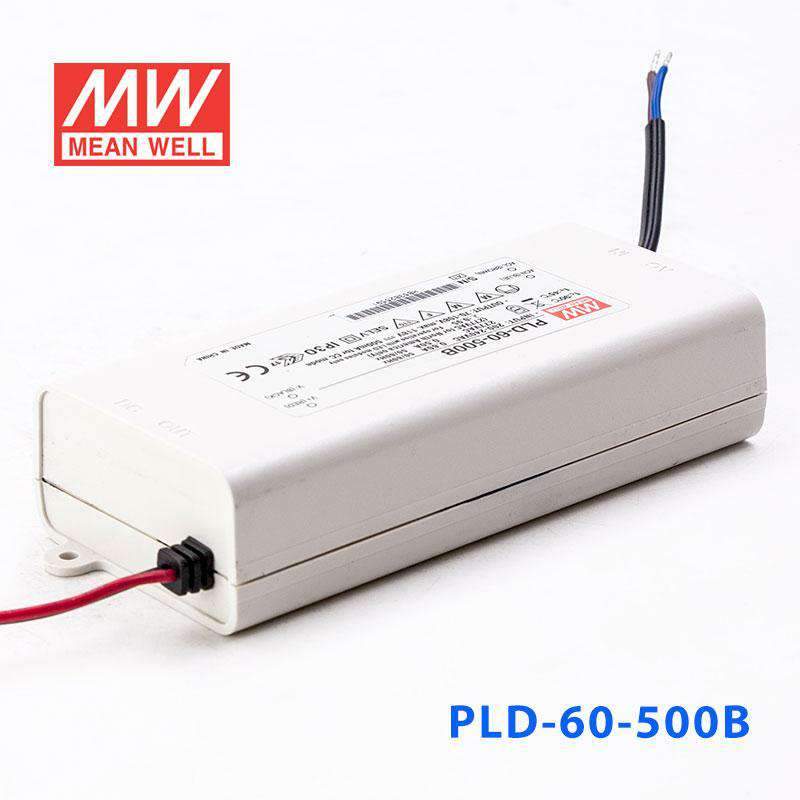

Mean Well PLD-60-500B Power Supply 60W 500mA

plastic caseIP42Class II design without FG
SKU PLD-60-500B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-500B is the model of this series: rated current 500mA, rated power 54W, typical efficiency 88%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-500BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
500mA
OPERATING VOLTAGE RANGE
70 ~ 108V
CURRENT ACCURACY
±5.0%
RATED POWER
54W
RIPPLE & NOISE (max.)Note.1
10.2Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
118V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-500B Mechanical Specification
Mechanical Specification
PLD-60-500B Block Diagram
Block Diagram
PLD-60-500B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-500B for LED downlights with a long series string?

Yes, this model fits constant current downlight assemblies that require 500mA and need a higher forward voltage, because its output range is 70-108V. That makes it more appropriate for longer series LED strings than low-voltage, high-current light engines.

Is the PLD-60-500B suitable for signage modules with higher total forward voltage?

It can be, if the signage modules are arranged as a constant current 500mA load and the full LED load falls within 70-108V. It is not a constant voltage driver, so it should not be used as a substitute for a fixed-voltage signage power supply.

Would this driver work for a small LED array built as a high-voltage series load?

Yes, when the array is designed for 500mA constant current operation and the total forward voltage sits within 70-108V. Its 54W rating supports higher-voltage constant current arrays rather than low-voltage constant current boards.

How can I tell if the PLD-60-500B matches my LED load?

The PLD-60-500B provides 500mA constant current with a 70-108V output range. The LED load must be designed for constant current use, and the number of LEDs in series depends on each LED's forward voltage instead of a fixed LED quantity.

Is the PLD-60-500B acceptable for enclosed indoor fixtures?

It is generally suited to protected indoor applications, with an operating temperature range of -30°C to +45°C (see the derating curve) and an IP42 rating. IP42 does not indicate full weatherproofing, so enclosed or sheltered locations are a better match than exposed outdoor use.
