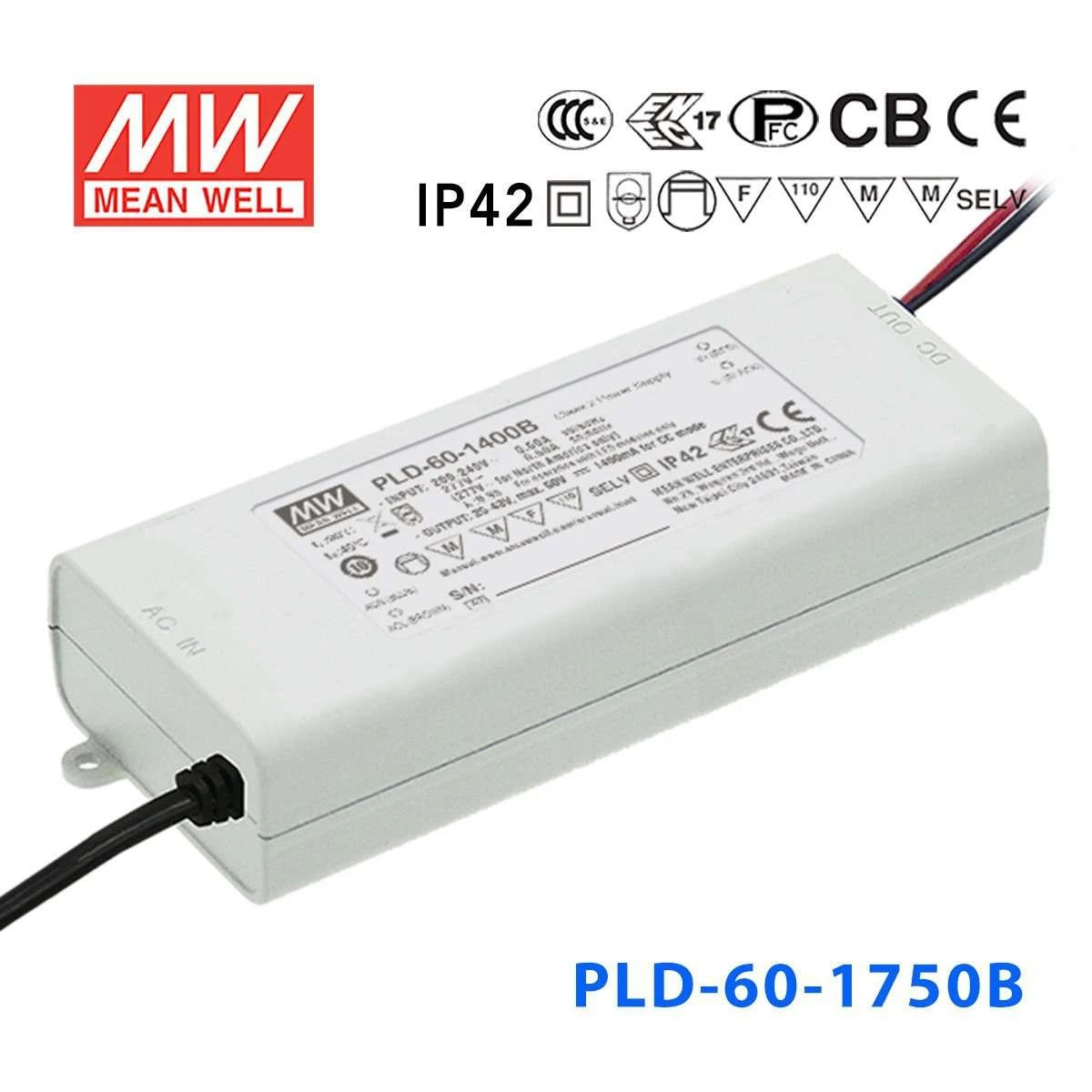

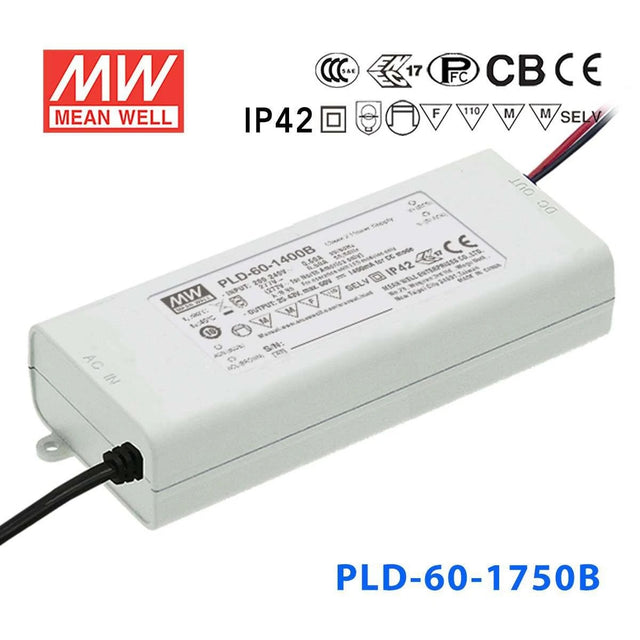

Mean Well PLD-60-1750B Power Supply 60W 1750mA
Please Login for Pricing
Description
Description
Features
| 230VAC input |
| Built-in active PFC function |
| Fully isolated plastic case |
| Constant current design |
| IP42 design |
| Class II power unit, no FG |
| Low cost |
| Protections: Short circuit / Over temperature |
| Suitable for indoor LED lighting applications |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 230VAC (180 ~ 295VAC) |
| AC inrush current (max.) | Cold start, 25A at 230VAC |
| Withstand voltage | I / P - O / P: 3.75 k VAC |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over Temp. Protection | Shut down o / p voltage, auto-recover |
| Working temperature | -30 ~ + 45ºC |
| Safety standards | ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | H03VVH2-F 0.75mm² x2C (7.5cm) |
| Connection Output | UL1430 18AWGx2C (15cm) |
| Dimension (LxWxH) (mm) | 128x 60x 31.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating59.5 Watt
-
Output Voltage34 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~295V
-
Standards MetCB,CE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~45°C
-
Warranty3 Year
-
Length12.8 cm
-
Width6 cm
-
Height3.15 cm
-
Weight0.34 kg
