Mean Well

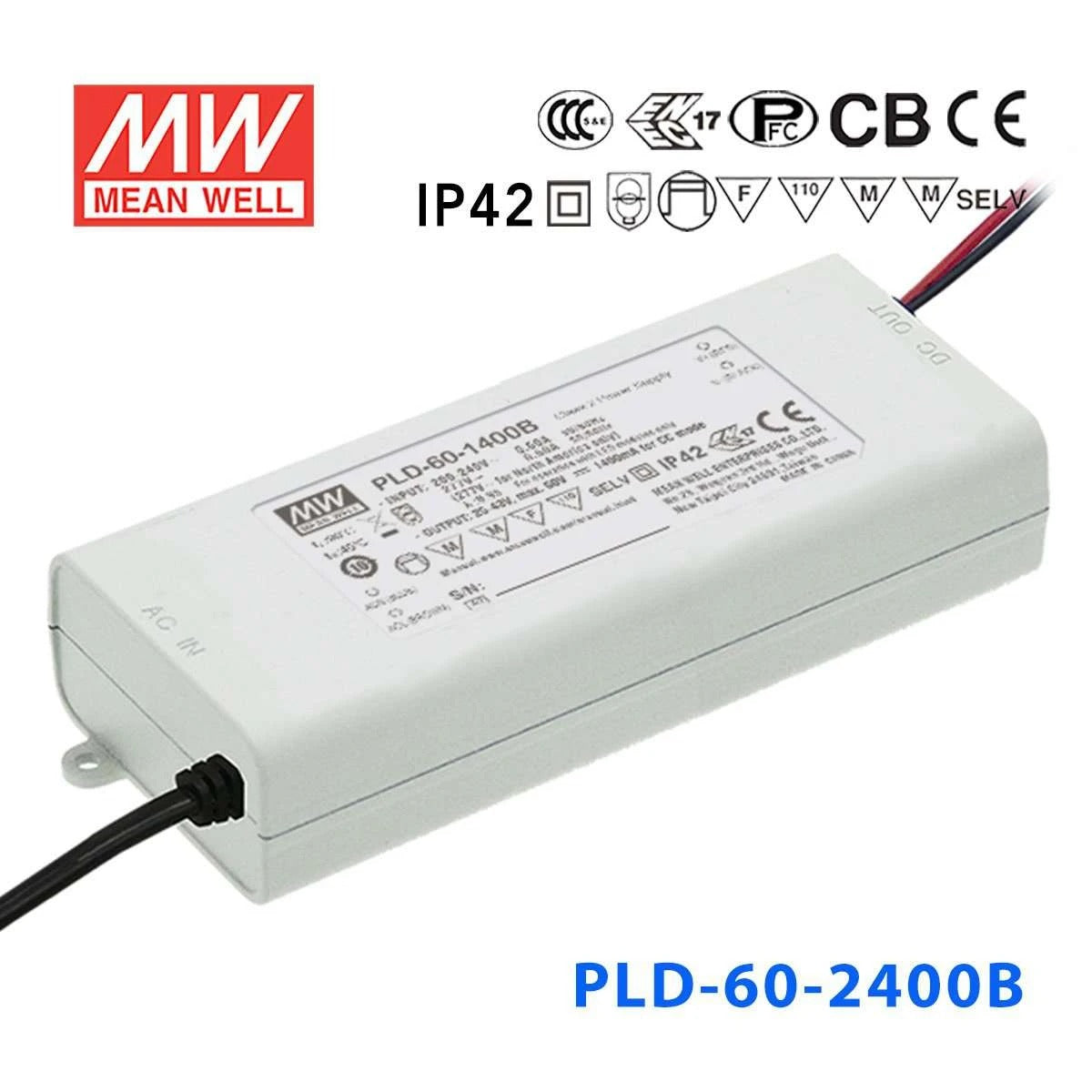

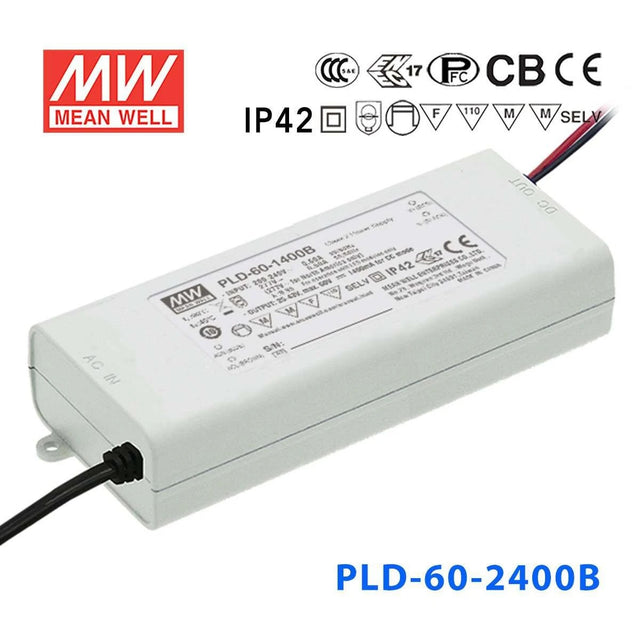

Mean Well PLD-60-2400B Power Supply 60W 2400mA

plastic caseIP42Class II design without FG
SKU PLD-60-2400B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-2400B is the model of this series: rated current 2400mA, rated power 60W, typical efficiency 86%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-2400BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
2400mA
OPERATING VOLTAGE RANGE
15 ~ 25V
CURRENT ACCURACY
±5.0%
RATED POWER
60W
RIPPLE & NOISE (max.)Note.1
2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-2400B Mechanical Specification
Mechanical Specification
PLD-60-2400B Block Diagram
Block Diagram
PLD-60-2400B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-2400B for a very high-current LED downlight?

Yes, this driver is intended for constant current LED loads that require 2400mA and operate within 15-25V. That profile fits compact high-output downlight engines more than longer, higher-voltage LED strings.

Is the PLD-60-2400B suitable for compact signage light engines?

It can be suitable for compact constant current signage light engines that need 2400mA and stay within a 15-25V forward voltage range. It is not a constant voltage supply, so it should not be matched to signage products designed around a fixed DC voltage input.

Would this driver fit a small dense LED array?

Yes, when the array is designed for 2400mA constant current operation and its electrical demand falls within 15-25V. With 60W available, it is aimed at high-output compact arrays rather than low-current multi-string products.

How do I verify whether my LEDs will work with the PLD-60-2400B?

This is a 2400mA constant current driver with a 15-25V constant current output range. The LED load must be specified for constant current use, and the number of LEDs that can be used in series depends on each LED's forward voltage rather than a stated LED count.

Is the PLD-60-2400B meant for outdoor exposure?

Its IP42 rating indicates limited ingress protection, so it is better suited to protected indoor or sheltered applications instead of direct weather exposure. The unit operates from -30°C to +45°C (see the derating curve) at 20-95% RH non-condensing.
