Mean Well

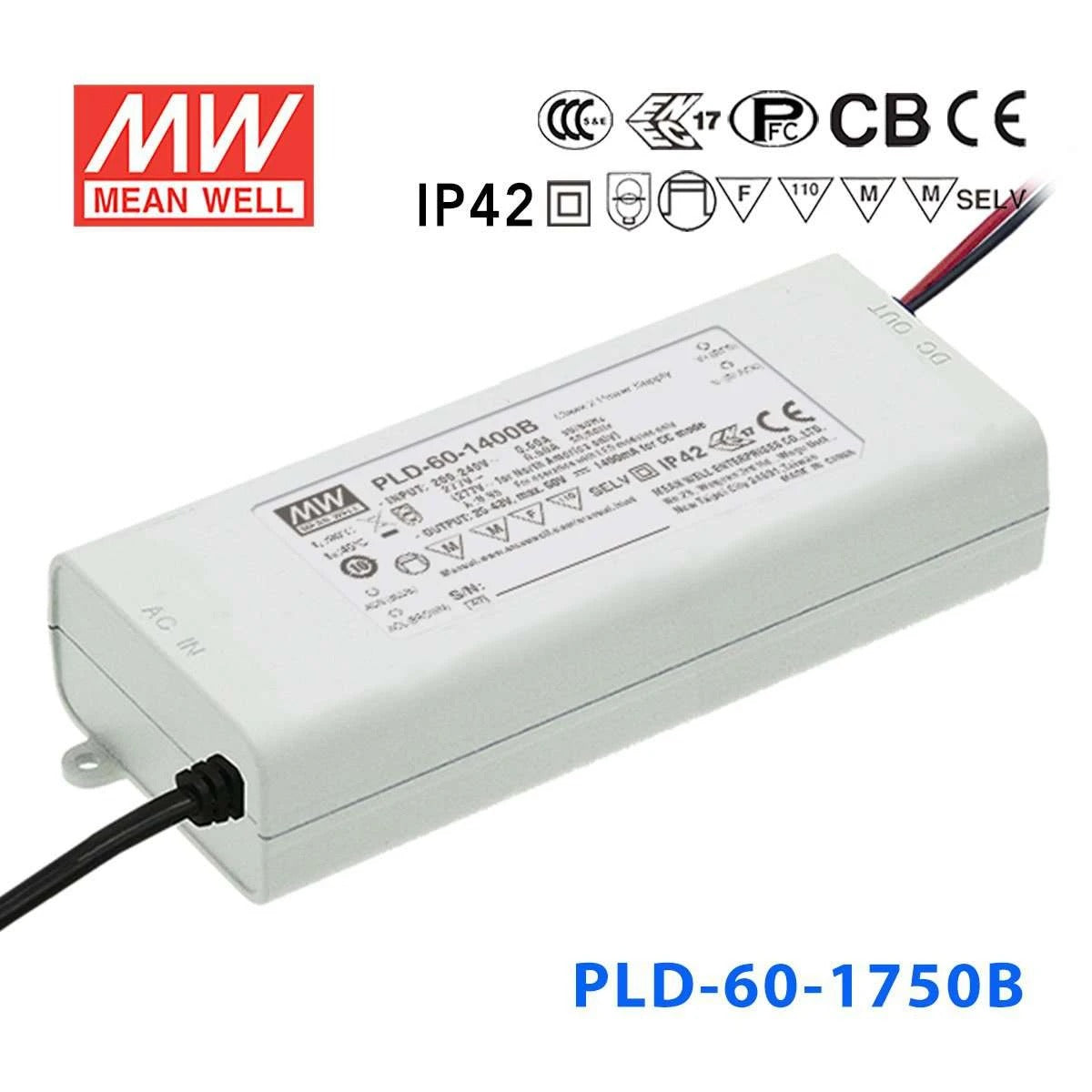

Mean Well PLD-60-1750B Power Supply 60W 1750mA

plastic caseIP42Class II design without FG
SKU PLD-60-1750B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-1750B is the model of this series: rated current 1750mA, rated power 59.5W, typical efficiency 86%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-1750BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1750mA
OPERATING VOLTAGE RANGE
20 ~ 34V
CURRENT ACCURACY
±5.0%
RATED POWER
59.5W
RIPPLE & NOISE (max.)Note.1
3.3Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
50V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-1750B Mechanical Specification
Mechanical Specification
PLD-60-1750B Block Diagram
Block Diagram
PLD-60-1750B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-1750B for a high-output LED downlight?

Yes, this model is suited to constant current LED downlights that require 1750mA and operate within a 20-34V constant current output range. Its 59.5W rating makes it a fit for higher-power downlight assemblies rather than low-power constant voltage lighting.

Is the PLD-60-1750B a good choice for LED signage modules?

It can be used for signage modules when the module string is designed for constant current operation at 1750mA and falls within 20-34V. It is not a constant voltage power supply, so it should be matched to constant current signage loads rather than 12V or 24V constant voltage modules.

Can this driver run a small LED array for architectural or display lighting?

Yes, if the LED array is a constant current load rated for 1750mA and its forward voltage stays within the 20-34V range. With 59.5W available, it is better suited to compact higher-power arrays than low-current indicator or decorative arrays.

How do I know if the PLD-60-1750B is compatible with my LEDs?

This is a constant current driver with a 1750mA output and a 20-34V constant current range. Compatibility depends on your LED load being designed for constant current operation, and the number of LEDs in series depends on each LED's forward voltage rather than a fixed LED count.

Is the PLD-60-1750B suitable for damp or enclosed locations?

It is IP42 rated, so it has limited protection against ingress and is generally better suited to indoor applications where direct water exposure is not expected; working humidity is 20-95% RH non-condensing. Its operating temperature range is -30°C to +45°C (see the derating curve), which helps for protected locations that still see cold or moderately warm conditions.
