Mean Well

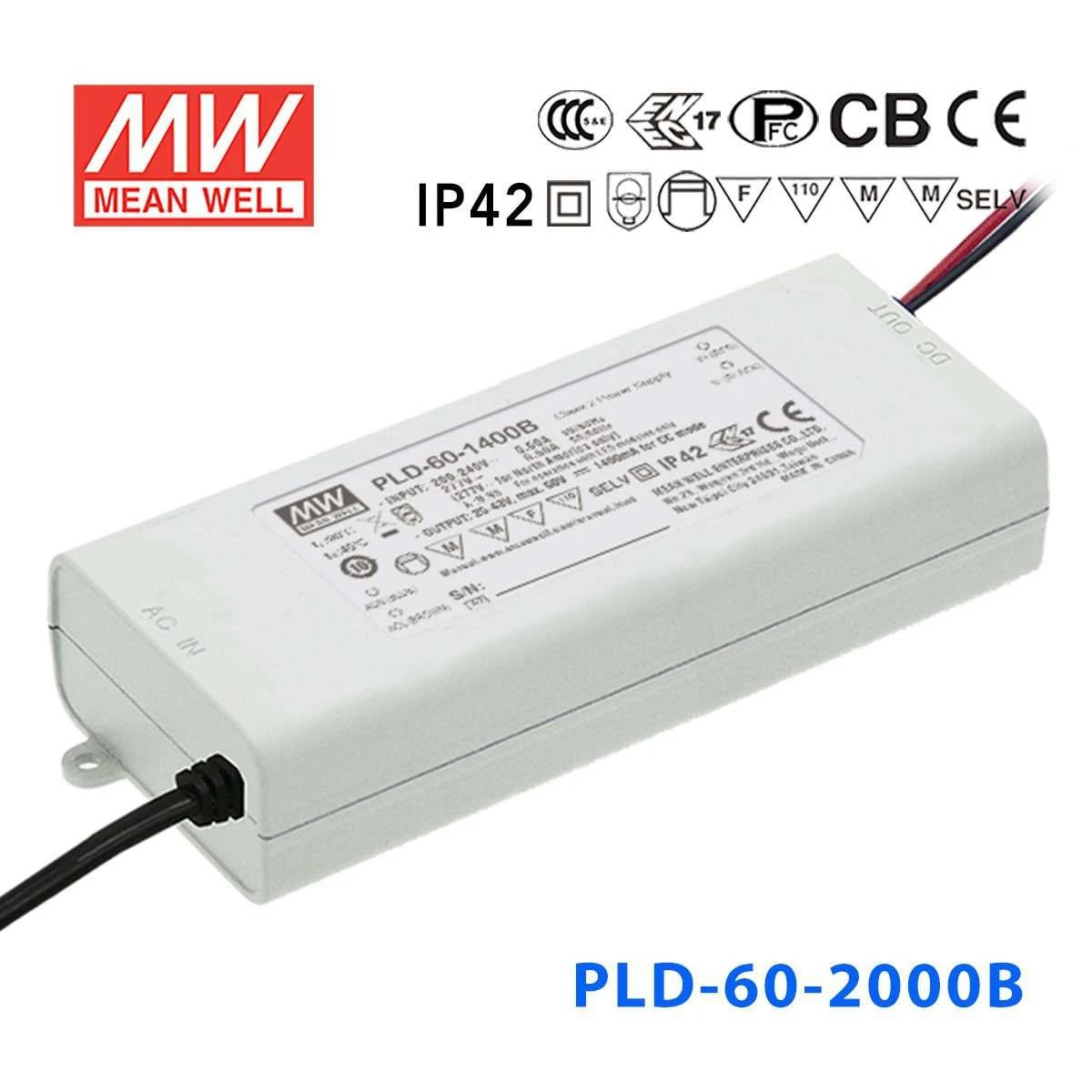

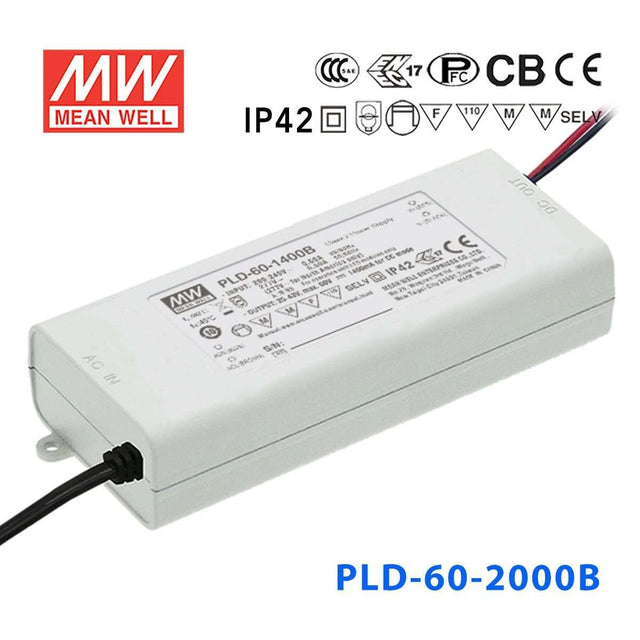

Mean Well PLD-60-2000B Power Supply 60W 2000mA

plastic caseIP42Class II design without FG
SKU PLD-60-2000B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-2000B is the model of this series: rated current 2000mA, rated power 60W, typical efficiency 86%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-2000BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
2000mA
OPERATING VOLTAGE RANGE
18 ~ 30V
CURRENT ACCURACY
±5.0%
RATED POWER
60W
RIPPLE & NOISE (max.)Note.1
2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-2000B Mechanical Specification
Mechanical Specification
PLD-60-2000B Block Diagram
Block Diagram
PLD-60-2000B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-2000B for a COB LED downlight?

Yes, this driver is appropriate for COB or integrated LED downlights that need a constant 2000mA output and operate within an 18-30V constant current range. Its 60W rating makes it relevant for higher-output fixtures rather than small constant voltage lamps.

Will the PLD-60-2000B work for compact LED signage assemblies?

It can, provided the signage assembly is designed as a constant current 2000mA load and the total forward voltage stays between 18V and 30V. It is not intended for standard constant voltage signage products that expect a fixed DC voltage source.

Is this driver appropriate for a small high-brightness LED array?

Yes, for small high-brightness LED arrays that are specified for 2000mA constant current operation within 18-30V. The 60W output supports more demanding arrays, but the load still has to be matched to constant current rather than constant voltage operation.

How should I check LED compatibility for the PLD-60-2000B?

This model delivers 2000mA constant current with an 18-30V output range. The LED load must be a constant current design, and the usable number of LEDs in series depends on the forward voltage of each LED instead of any fixed series count.

Can the PLD-60-2000B be used in harsher indoor conditions?

Its operating temperature range is -30°C to +45°C (see the derating curve), which supports protected indoor environments with a wide ambient range. The unit is IP42 rated, so it is better suited to dry or lightly exposed areas than wet locations.
