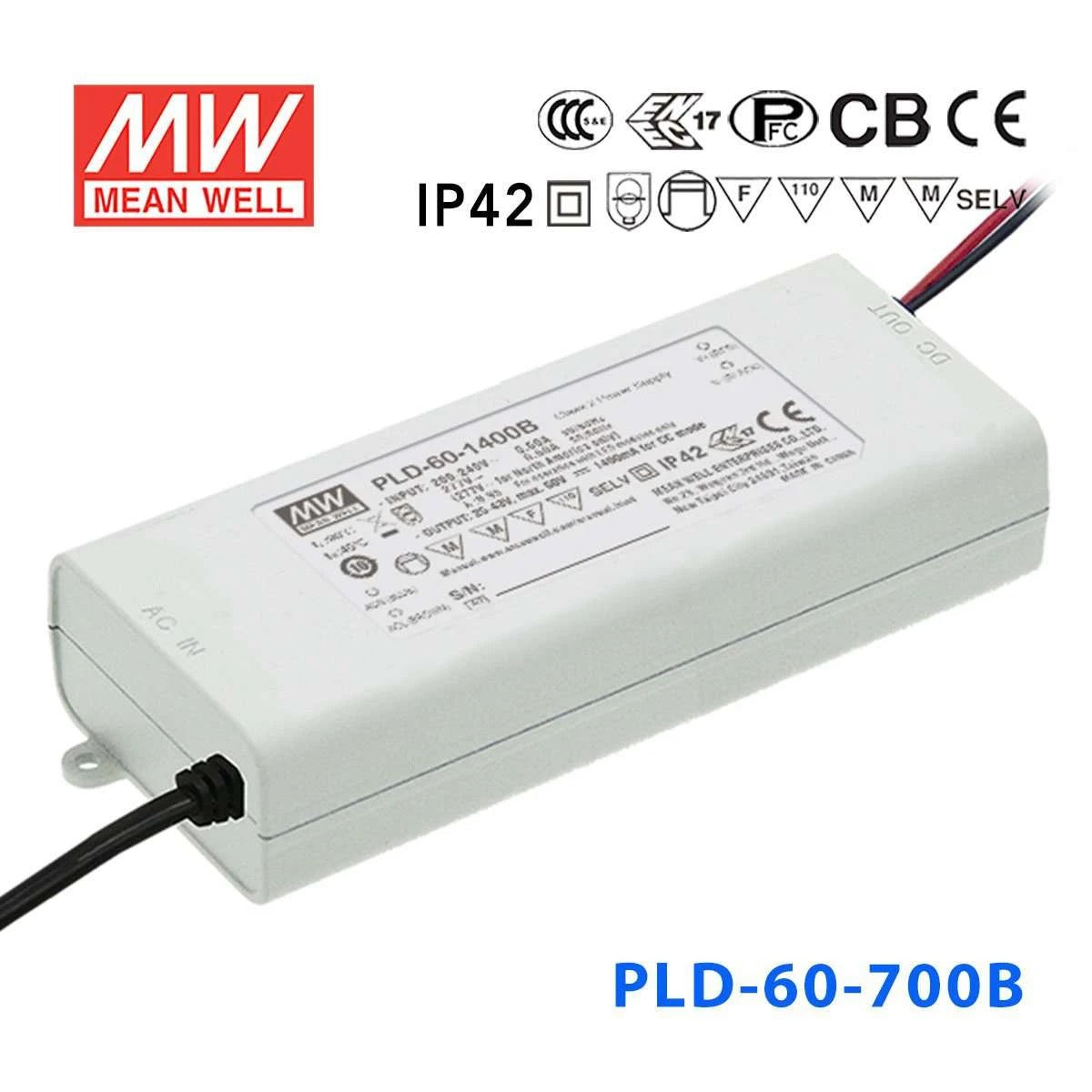

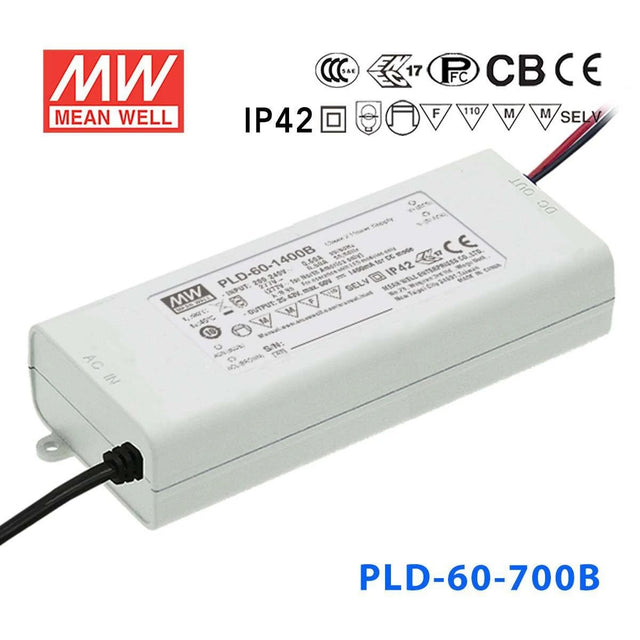

Mean Well PLD-60-700B Power Supply 60W 700mA

plastic caseIP42Class II design without FG
SKU PLD-60-700B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PLD-60-700B is the model of this series: rated current 700mA, rated power 60.2W, typical efficiency 87%.

Features

  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PLD-60-700BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
700mA
OPERATING VOLTAGE RANGE
50 ~ 86V
CURRENT ACCURACY
±5.0%
RATED POWER
60.2W
RIPPLE & NOISE (max.)Note.1
5.6Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
100V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PLD-60-500B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.)
COLD START 25A (twidth=60μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +45℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885(for 700B,1050B,1400B only), EAC TP TC 004, IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B, EAC TP TC 020

OTHERS

MTBF
4642.1K hrs min. Telcordia SR-332 (Bellcore) ; 458.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.34Kg;30pcs/11.2Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PLD-60-700B Mechanical Specification
Mechanical Specification
PLD-60-700B Block Diagram
Block Diagram
PLD-60-700B Power Factor Characteristic
Power Factor Characteristic

Downloads

FAQ

Can I use the PLD-60-700B for an LED downlight that uses a higher series voltage?

Yes, this driver is a fit for constant current LED downlights that require 700mA and operate within a 50-86V range. Its 60.2W capacity and higher voltage range make it better suited to longer series LED configurations than lower-voltage, high-current modules.

Is the PLD-60-700B suitable for LED signage modules arranged in series?

It can be used for signage modules when the full module string is a 700mA constant current load within 50-86V. It is not a constant voltage supply, so it should be paired only with signage assemblies designed for constant current operation.

Would the PLD-60-700B work with a small LED array for display or architectural lighting?

Yes, if the array is specified for 700mA constant current and its total forward voltage falls between 50V and 86V. This model is better aligned with higher-voltage series arrays than compact low-voltage LED boards.

How do I check compatibility for the PLD-60-700B?

This driver outputs 700mA constant current over a 50-86V constant current range. Your LED load must be a constant current design, and the number of LEDs you can place in series depends on the forward voltage of each LED rather than a fixed LED count.

Can the PLD-60-700B handle colder or moderately warm indoor environments?

Its rated operating temperature range is -30°C to +45°C (see the derating curve), which covers many protected indoor and sheltered applications. The unit is IP42 rated, so it is better for environments where direct water exposure is not expected.
