Mean Well

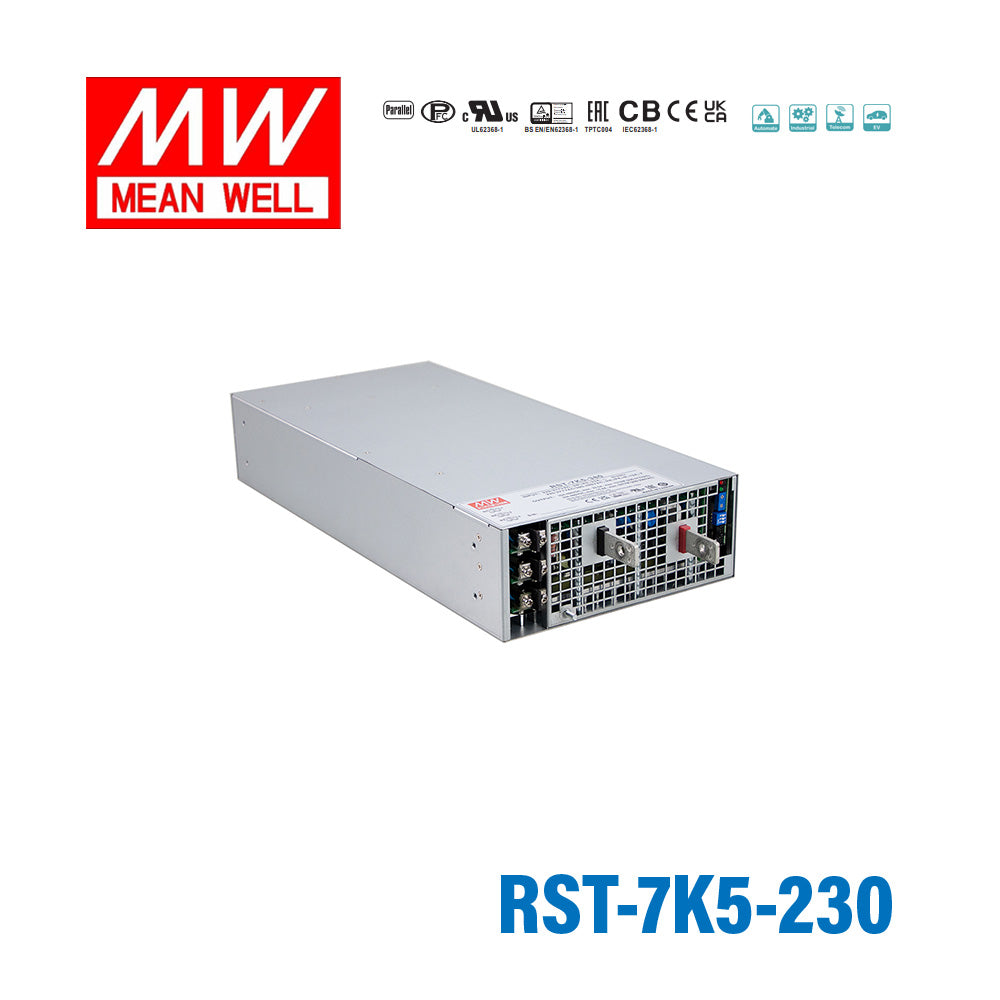

Mean Well RST-7K5-230 High Power AC/DC Power Supply 7452W, 3 Phase Input, 230V Output 32.4A

up to 95% efficiencywide voltage adjustment range 1~120%active current sharing up to 4 units(28.5KW)
SKU RST-7K5-230
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
|

The Mean Well RST-7K5-230 is a 7,452W three-phase AC/DC power supply delivering 230V DC at up to 32.4A. It is built for high-current industrial loads — plating, charging, heating and test systems — and units can be paralleled for greater capacity.

It accepts three-phase 196~305VAC input with a power factor above 0.98 at full load, operates from -30°C to 70°C with forced-air cooling and carries CB, CE, EAC and EN approvals, and includes constant-current limiting, over-voltage and over-temperature protection. Backed by a 5-year warranty.

Key Features

  • ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
  • ✓High efficiency up to 95%
  • ✓Water / forced air cooling selectable
  • ✓Output voltage and constant current level programmable
  • ✓Wide voltage adjustment range 1~120%
  • ✓Active current sharing up to 4 units(28.5KW)
  • ✓Built-in remote ON-OFF control / Alarm signal
  • ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
  • ✓5 years warranty
