Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

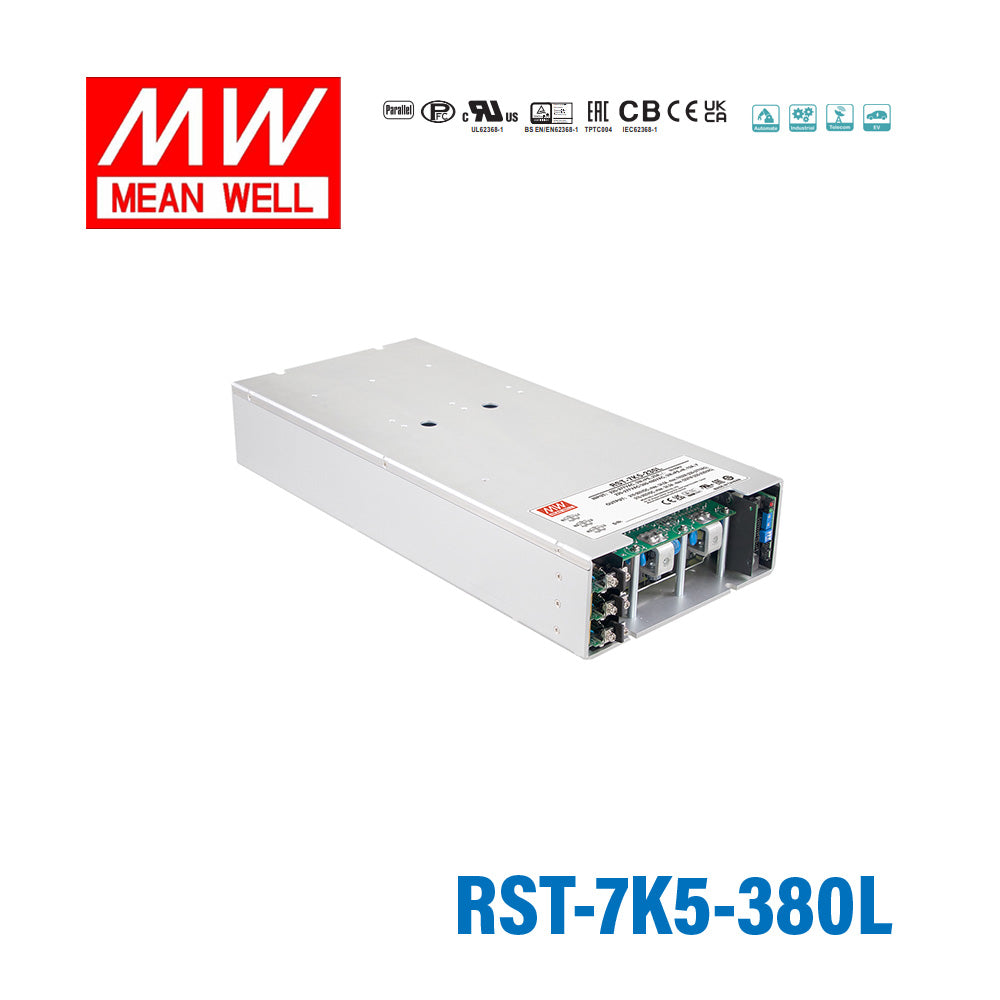

Mean Well RST-7K5-380L High Power AC/DC Power Supply 7515W, 3 Phase Input, 380V Output, Water Cooling

Name: Mean Well RST-7K5-380L High Power AC/DC Power Supply 7515W, 3 Phase Input, 380V Output, Water Cooling
Brand: Mean Well
SKU: RST-7K5-380L
Price: 5001.0 NZD
Availability: InStock

up to 95% efficiency, wide voltage adjustment range 1~120%, active current sharing up to 4 units(28.5KW)

Please for Pricing

Notify me when it's back in stock

Description

Features:

3ψ 3-wire / △196~~305VAC or 3ψ 4-wire / Y 340~~530VAC
High efficiency up to 95%
Water / forced air cooling selectable
Output voltage and constant current level programmable
Wide voltage adjustment range 1~120%
Active current sharing up to 4 units(28.5KW)
Built-in remote ON-OFF control / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

General Specification

AC input voltage range

3ψ 3W/ △196~~305VAC or 3ψ 4W/Y 340~~530VAC

AC inrush current (max.)

75A/230VAC(3ψ 3-wire / △) 50A/400VAC(3ψ 4-wire / Y)

Overload protection

100 ~ 107% of rated current

Protection type: Constant current limiting, unit will shut down after 5 seconds. re-power on to recover

Over-voltage protection

| 145 ~ 166V | 273 ~ 312V | 420 ~ 480V |

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC

Working temperature

-30 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

460x216x83.5mm

Specifications

Brand

Mean Well
Series

RST Series
Power Rating

7515 Watt
Output Voltage

380 Volt
Rated Current

19.77 Ampere
Input Voltage

196V~305V
Standards Met

CB,CE,EAC,EN
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

46 cm
Width

21.6 cm
Height

8.35 cm
Weight

12 kg
