Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

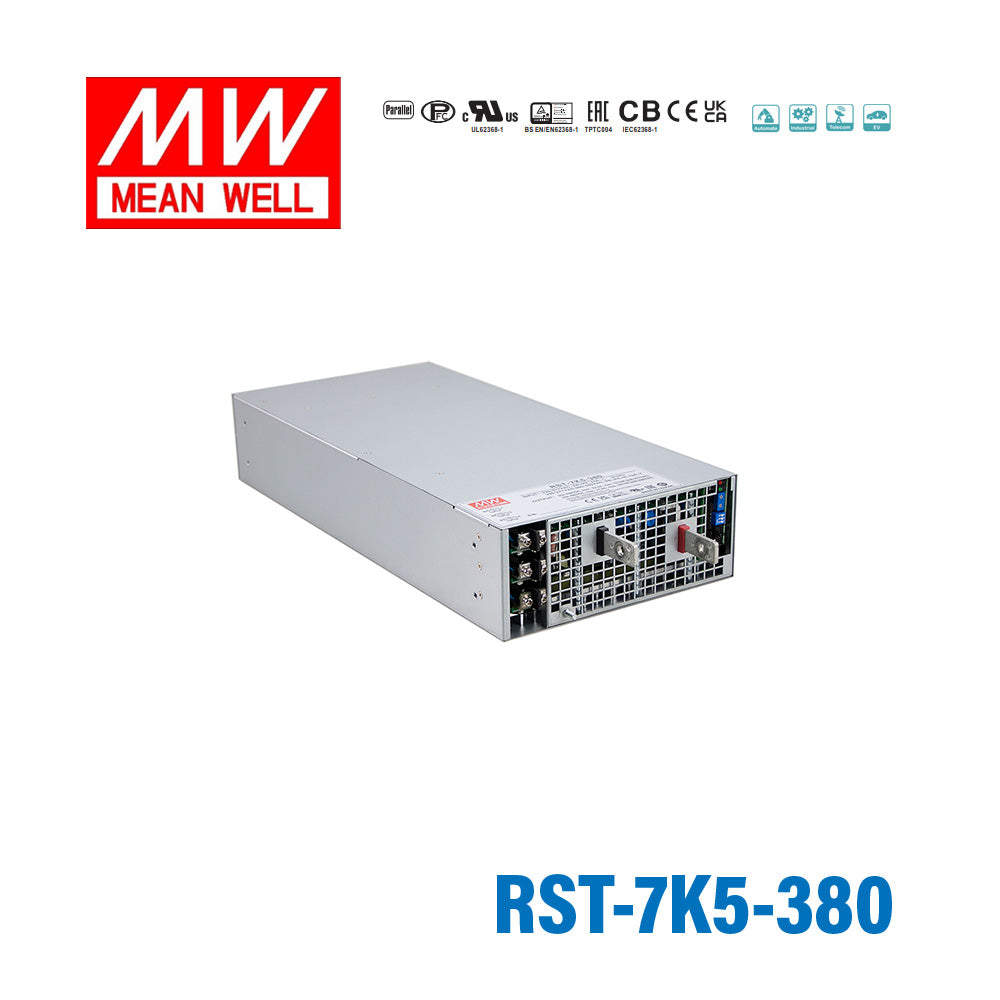

Mean Well RST-7K5-380 High Power AC/DC Power Supply 7515W, 3 Phase ...
Please Login for Pricing
Description
Description
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7515 Watt
-
Output Voltage380 Volt
-
Rated Current19.77 Ampere
-
Input Voltage196V~305V
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length46 cm
-
Width21.1 cm
-
Height8.35 cm
-
Weight12 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of applications is the Mean Well RST-7K5-380 designed for?
The RST-7K5-380 is a high power AC/DC enclosed power supply intended for industrial and other demanding B2B applications that require very high wattage and a 380V DC output. With a 7515W power rating, it fits projects where standard lower-power supplies are not sufficient.
What are the key electrical ratings of the RST-7K5-380?
This model is rated for 7515W output power with a nominal 380V output and 19.77A rated current. It uses a 3-phase input and is specified for either 3-phase 3-wire 196-305VAC or 3-phase 4-wire 340-530VAC input ranges.
Does the RST-7K5-380 support output adjustment or programmability?
Yes. Mean Well specifies that the output voltage and constant current level are programmable on the RST-7K5-380. It also has a wide voltage adjustment range of 1-120%, which gives more flexibility than fixed-output high power supplies.
How efficient is the Mean Well RST-7K5-380?
The RST-7K5-380 is rated for efficiency up to 95%. That makes it a strong fit for high power applications where conversion efficiency and reduced energy loss are important considerations.
Can this power supply be used in higher-capacity parallel power systems?
Yes. The RST-7K5-380 supports active current sharing for up to 4 units, with a stated combined capacity of up to 28.5KW. This makes it suitable for larger systems that need scalable power from multiple matched units.
What cooling options are available on the RST-7K5-380?
This model supports selectable water cooling or forced air cooling. That gives buyers more flexibility when choosing a power supply for environments where thermal management requirements vary.
What environmental range and protection features does this model offer?
The RST-7K5-380 is specified for operation from -30°C to 70°C. It also includes short circuit, overload, over voltage, over temperature, and fan fail protection, along with built-in alarm signal support and a 5-year warranty.
