Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

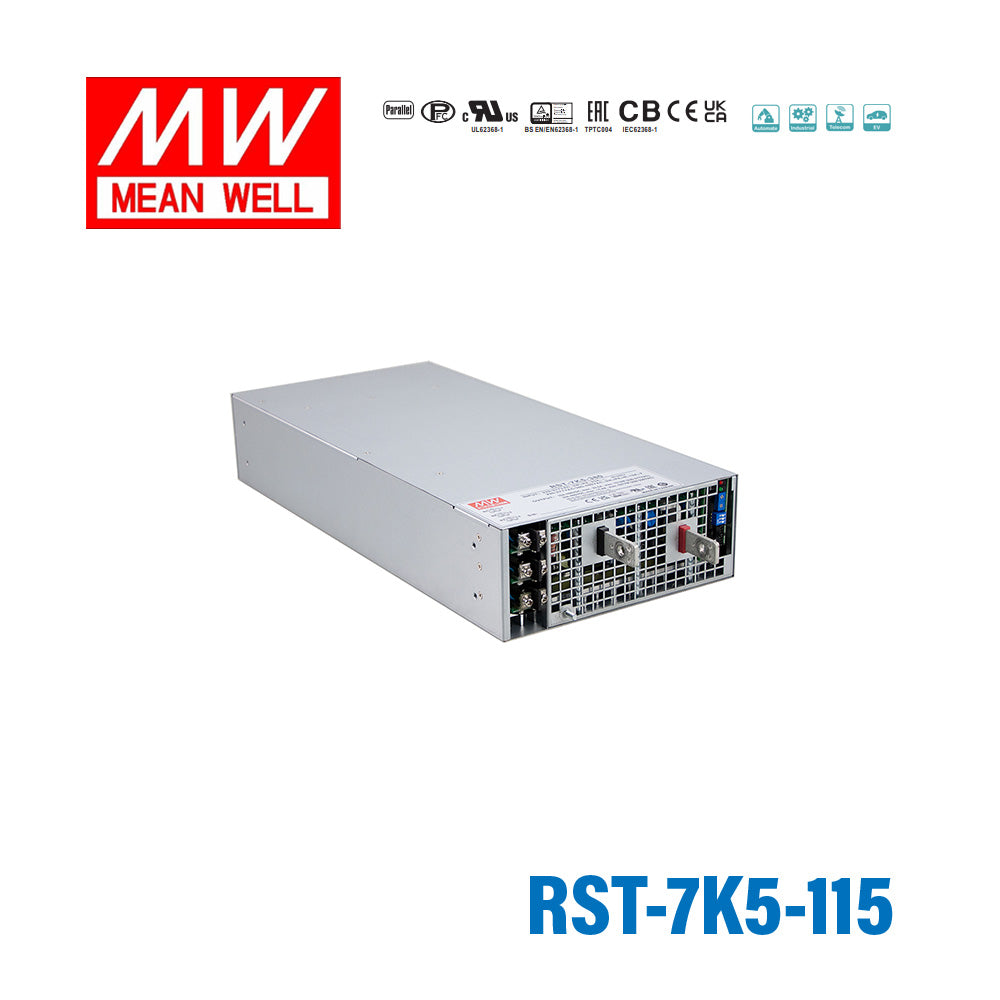

Mean Well RST-7K5-115 High Power AC/DC Power Supply 7475W, 3 Phase ...
Please Login for Pricing
Description
Description
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7475 Watt
-
Output Voltage115 Volt
-
Rated Current65 Ampere
-
Input Voltage196V~305V
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length46 cm
-
Width21.1 cm
-
Height8.35 cm
-
Weight12 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of applications is the Mean Well RST-7K5-115 designed for?
The RST-7K5-115 is a high power enclosed AC/DC power supply intended for demanding industrial and commercial systems that need substantial 115V DC output. With a 7475W power rating and 65A rated current, it is suited to applications where high continuous output and 3-phase input support are important purchasing factors.
What are the key output specifications of the RST-7K5-115?
This model provides a nominal 115V output and is rated for 65A, for a total power rating of 7475W. It also features a wide voltage adjustment range of 1 to 120% and programmable output voltage and constant current level.
Does the RST-7K5-115 support high efficiency operation?
Yes. Mean Well specifies efficiency up to 95% for the RST-7K5-115, which is a strong performance level for a power supply in this class. High efficiency can help reduce wasted energy and support lower thermal burden in high power systems.
What input power configuration does the RST-7K5-115 require?
The RST-7K5-115 is designed for 3-phase AC input. The listed input range is 3-phase 3-wire / delta 196 to 305VAC or 3-phase 4-wire / Y 340 to 530VAC, making it a fit for facilities using industrial-grade 3-phase power.
Can the RST-7K5-115 be used in higher power parallel systems?
Yes. This model supports active current sharing for up to 4 units, allowing system designers to scale output capacity up to 28.5KW. That makes it relevant for higher-demand applications where modular high power expansion is a requirement.
What operating environment and protection features does the RST-7K5-115 offer?
The RST-7K5-115 has an operating temperature range of -30°C to 70°C, supporting use in a wide range of industrial environments. It also includes protection functions for short circuit, overload, over voltage, over temperature, and fan fail, along with selectable water or forced-air cooling.
What warranty comes with the Mean Well RST-7K5-115?
Mean Well lists this model with a 5-year warranty. For B2B buyers evaluating lifecycle cost and long-term support, that warranty period is an important part of the product's value proposition.
