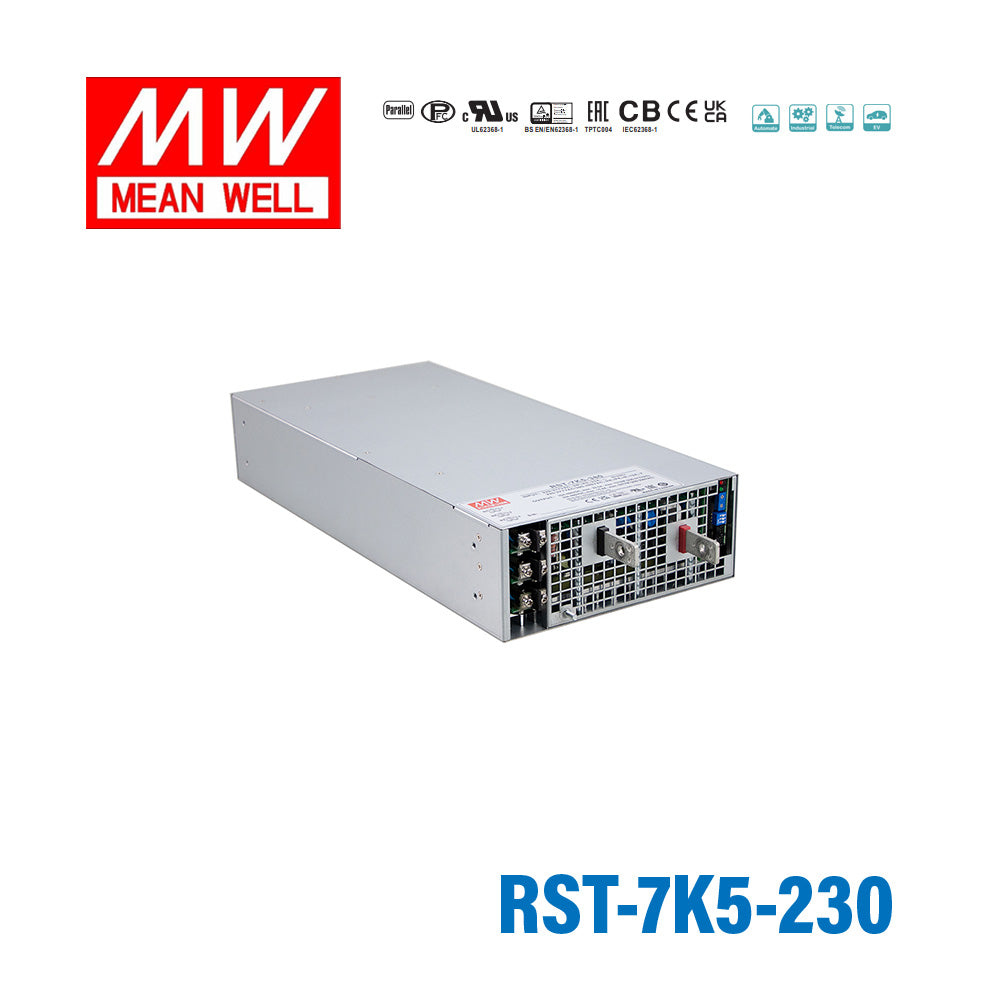

Mean Well RST-7K5-230 High Power AC/DC Power Supply 7452W, 3 Phase ...
Please Login for Pricing
Description
Description
Key Features
- ✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
- ✓High efficiency up to 95%
- ✓Water / forced air cooling selectable
- ✓Output voltage and constant current level programmable
- ✓Wide voltage adjustment range 1~120%
- ✓Active current sharing up to 4 units(28.5KW)
- ✓Built-in remote ON-OFF control / Alarm signal
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRST Series
-
Power Rating7452 Watt
-
Output Voltage230 Volt
-
Rated Current32.4 Ampere
-
Input Voltage196V~305V
-
Standards MetCB,CE,EAC,EN
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length46 cm
-
Width21.1 cm
-
Height8.35 cm
-
Weight12 kg
