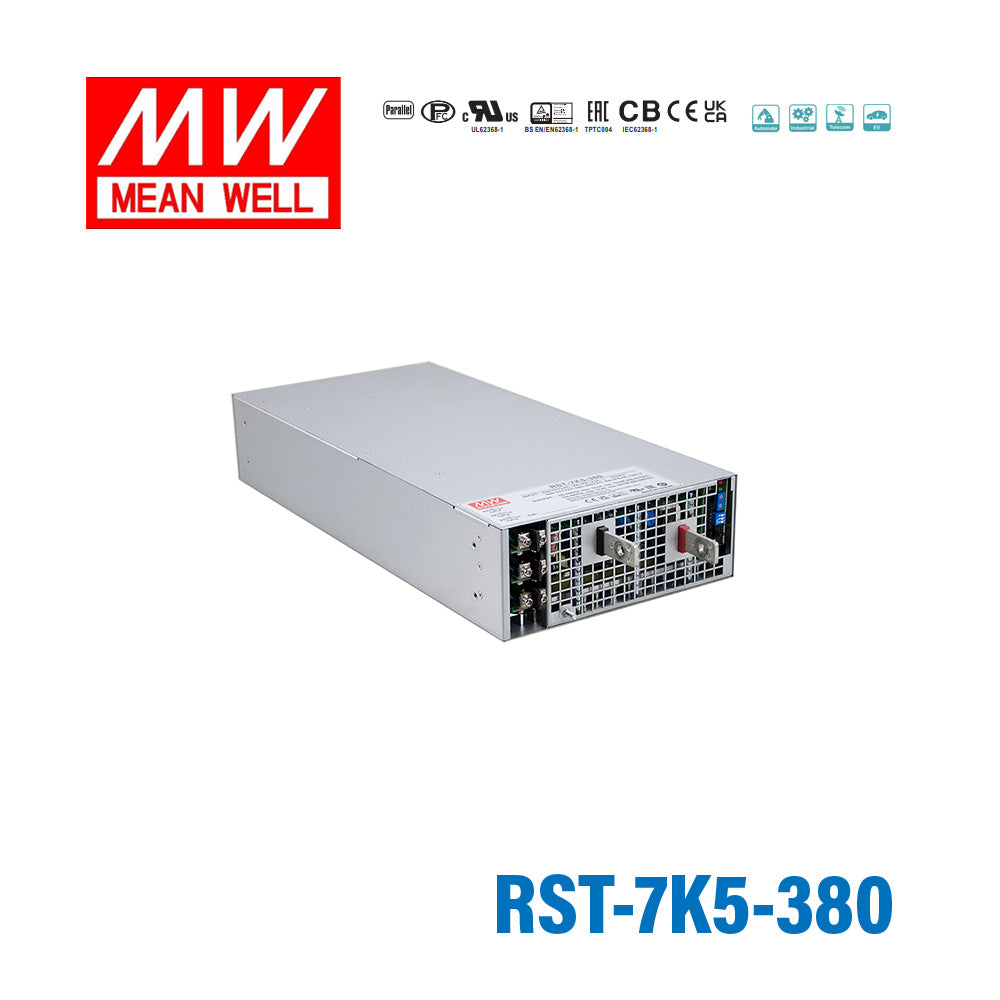

Mean Well RST-7K5-380 High Power AC/DC Power Supply 7515W, 3 Phase Input, 380V Output 19.77A

up to 95% efficiencywide voltage adjustment range 1~120%active current sharing up to 4 units(28.5KW)

SKU RST-7K5-380

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well RST-7K5-380 is a 7,515W three-phase AC/DC power supply delivering 380V DC at up to 19.77A. It is built for high-current industrial loads — plating, charging, heating and test systems — and units can be paralleled for greater capacity.

It accepts three-phase 196~305VAC input with a power factor above 0.98 at full load, operates from -30°C to 70°C with forced-air cooling and carries CB, CE, EAC and EN approvals, and includes constant-current limiting, over-voltage and over-temperature protection. Backed by a 5-year warranty.

Key Features

✓3ψ 3-wire / △196305VAC or 3ψ 4-wire / Y 340530VAC
✓High efficiency up to 95%
✓Water / forced air cooling selectable
✓Output voltage and constant current level programmable
✓Wide voltage adjustment range 1~120%
✓Active current sharing up to 4 units(28.5KW)
✓Built-in remote ON-OFF control / Alarm signal
✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
✓5 years warranty

Frequently Asked Questions

What kind of applications is the Mean Well RST-7K5-380 designed for?

The RST-7K5-380 is a high power AC/DC enclosed power supply intended for industrial and other demanding B2B applications that require very high wattage and a 380V DC output. With a 7515W power rating, it fits projects where standard lower-power supplies are not sufficient.

What are the key electrical ratings of the RST-7K5-380?

This model is rated for 7515W output power with a nominal 380V output and 19.77A rated current. It uses a 3-phase input and is specified for either 3-phase 3-wire 196-305VAC or 3-phase 4-wire 340-530VAC input ranges.

Does the RST-7K5-380 support output adjustment or programmability?

Yes. Mean Well specifies that the output voltage and constant current level are programmable on the RST-7K5-380. It also has a wide voltage adjustment range of 1-120%, which gives more flexibility than fixed-output high power supplies.

How efficient is the Mean Well RST-7K5-380?

The RST-7K5-380 is rated for efficiency up to 95%. That makes it a strong fit for high power applications where conversion efficiency and reduced energy loss are important considerations.

Can this power supply be used in higher-capacity parallel power systems?

Yes. The RST-7K5-380 supports active current sharing for up to 4 units, with a stated combined capacity of up to 28.5KW. This makes it suitable for larger systems that need scalable power from multiple matched units.

What cooling options are available on the RST-7K5-380?

This model supports selectable water cooling or forced air cooling. That gives buyers more flexibility when choosing a power supply for environments where thermal management requirements vary.

What environmental range and protection features does this model offer?

The RST-7K5-380 is specified for operation from -30°C to 70°C. It also includes short circuit, overload, over voltage, over temperature, and fan fail protection, along with built-in alarm signal support and a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RST-7K5-380L High Power AC/DC Power Supply 7515W, 3 Phase Input, 380V Output, Water Cooling 19.77A	7515W	380V	19.77A	View
Mean Well RST-7K5-230L High Power AC/DC Power Supply 7452W, 3 Phase Input, 230V Output, Water Cooling 32.4A	7452W	230V	32.4A	View
Mean Well RST-7K5-230 High Power AC/DC Power Supply 7452W, 3 Phase Input, 230V Output 32.4A	7452W	230V	32.4A	View
Mean Well RST-7K5-115L High Power AC/DC Power Supply 7475W, 3 Phase Input, 115V Output, Water Cooling 65A	7475W	115V	65A	View
Mean Well RST-7K5-115 High Power AC/DC Power Supply 7475W, 3 Phase Input, 115V Output 65A	7475W	115V	65A	View
