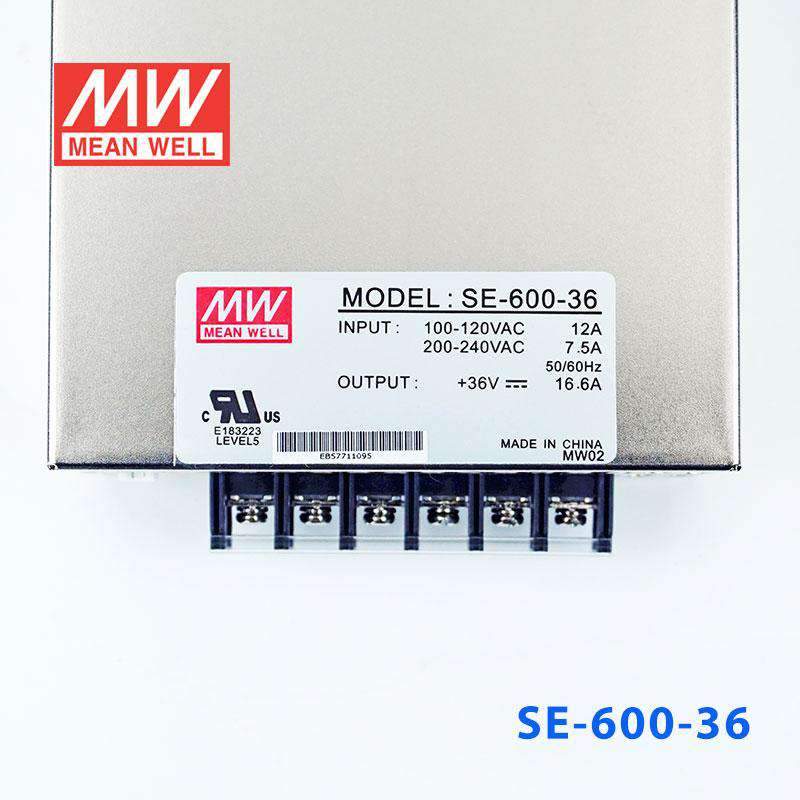

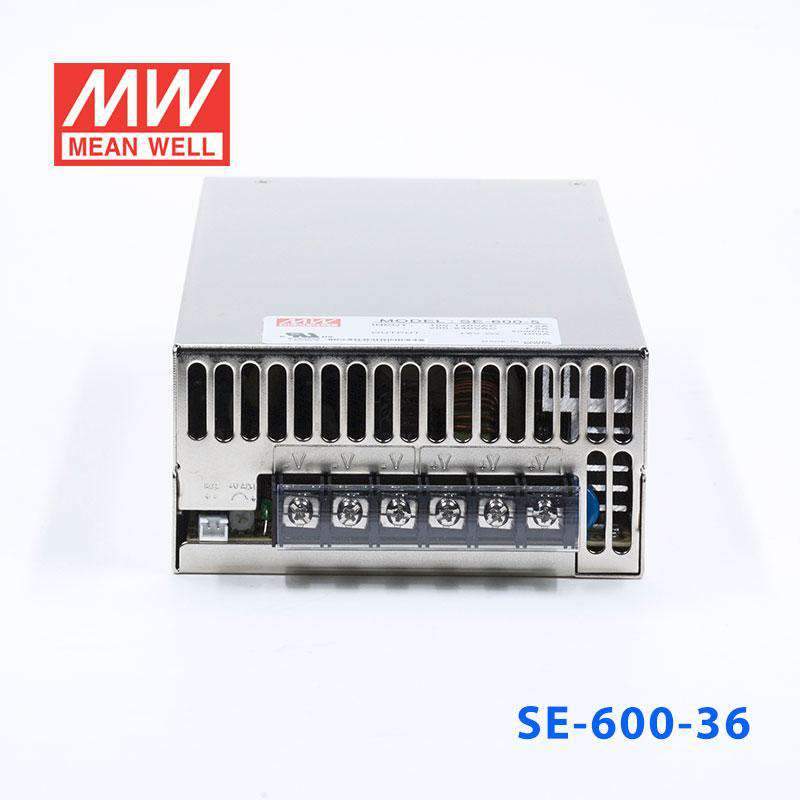

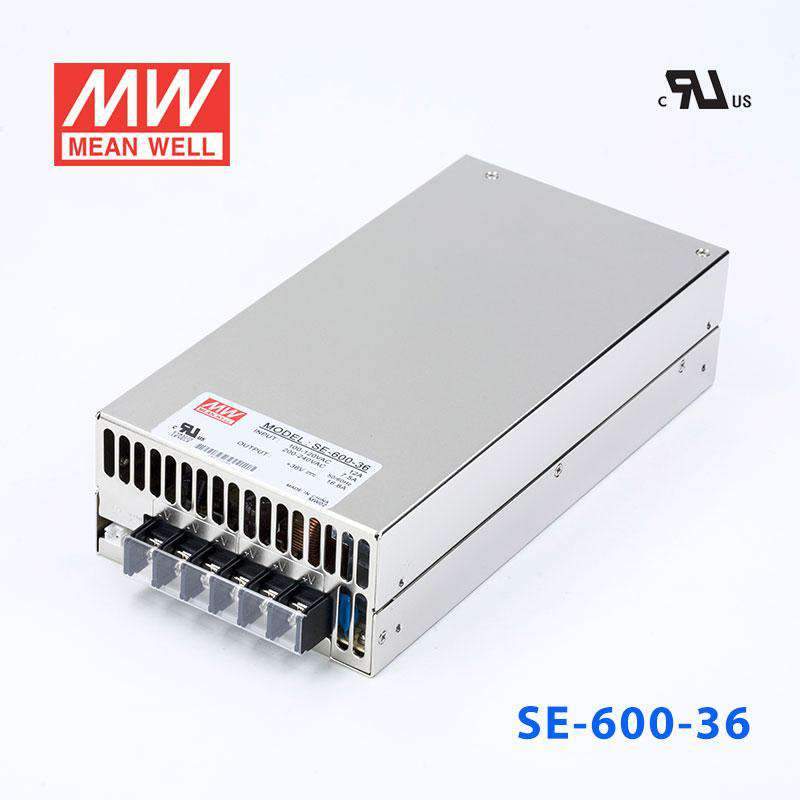

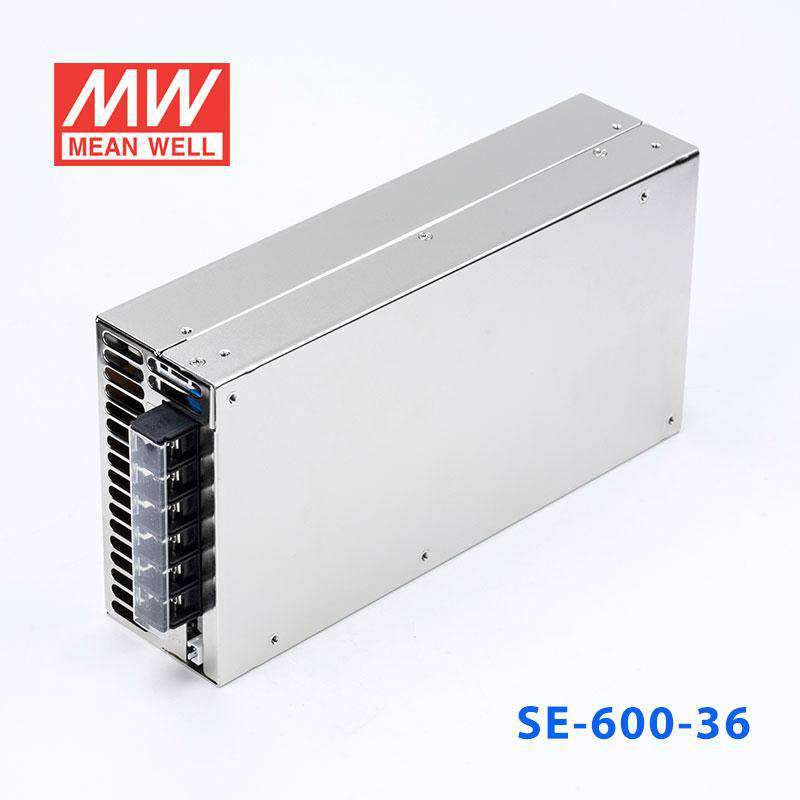

Mean Well SE-600-36 Power Supply 600W 36V 16.6A

economical model medium to high power(450W~1500W)
SKU SE-600-36
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

SE-600-36
End of Life, Succeeded by LRS-600-36
Available to order
|

Overview

SE-600-36 is the 36V output model of this series: rated current 16.6A, rated power 597.6W, typical efficiency 87%.

Features

  • AC input active surge current limiting

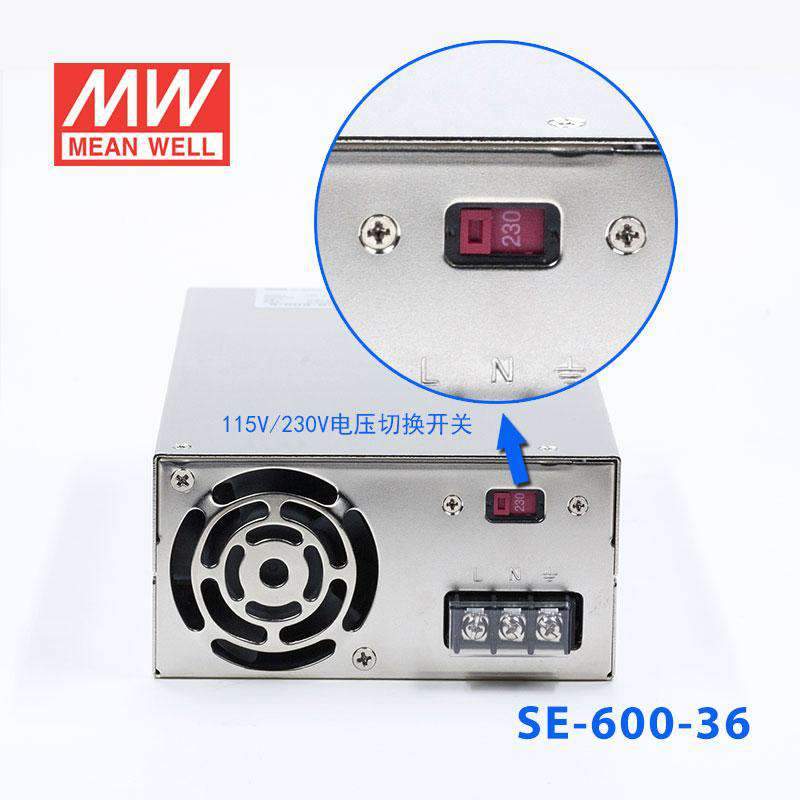

  • AC input range selected by switch
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 4.9w/in³
  • Built-in remote sense function
  • UL approved
  • Low cost
  • 2 years warranty

Specifications

SE-600-36Specifications from the official datasheet (2024-09-30 edition)

OUTPUT

DC VOLTAGE
36V
RATED CURRENT
16.6A
CURRENT RANGE
0 ~ 16.6A
RATED POWER
597.6W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
32 ~ 40V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ.)
30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<2.0mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
42 ~ 50V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
85℃±5℃ (TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, KC K60950-1(for 12V,24V only), IS13252(Part1)/IEC60950-1(except for 48V) approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

OTHERS

MTBF
1529.1K hrs min. Telcordia TR/SR-332 (Bellcore) ; 204.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
247*127*63.5mm (L*W*H)
PACKING
2.1Kg; 6pcs/13.4Kg/1.03CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. This power supply does not meet the harmonic current requirements outlined by BS EN/EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill BS EN/EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

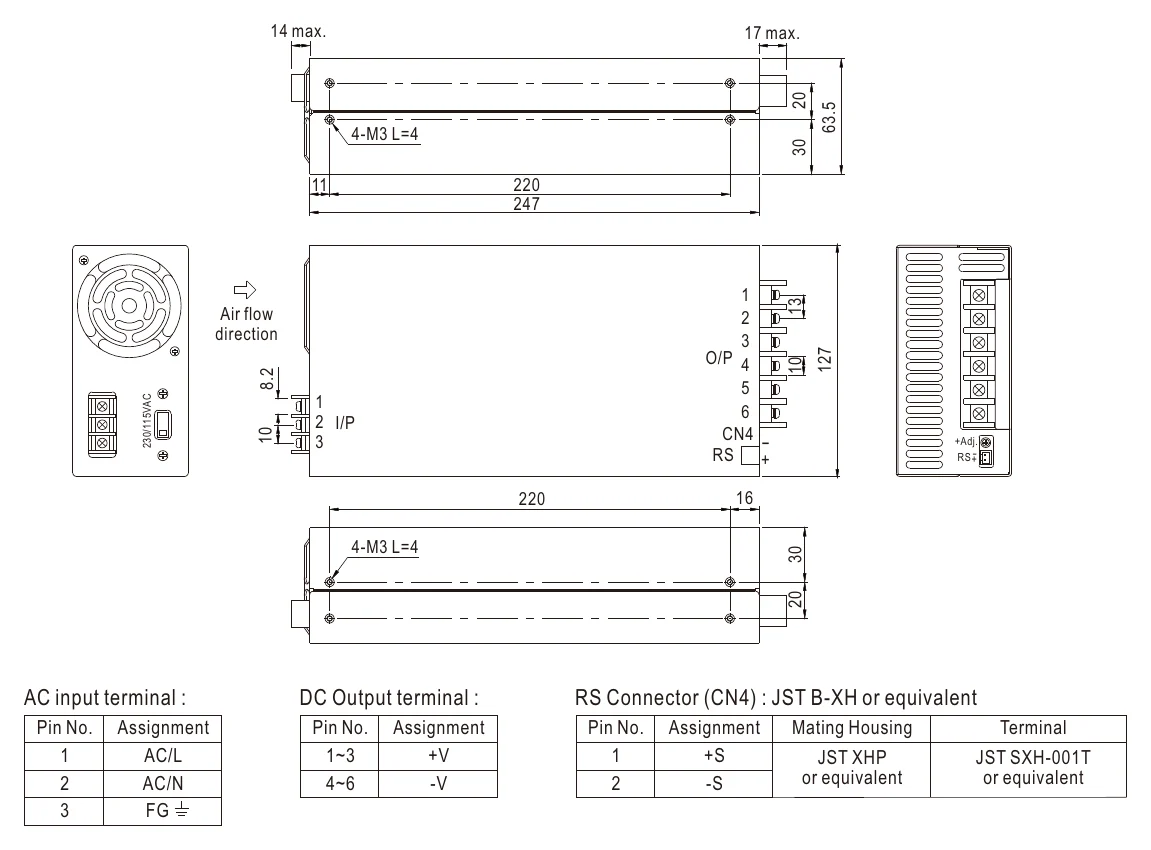

SE-600-36 Mechanical Specification
Mechanical Specification

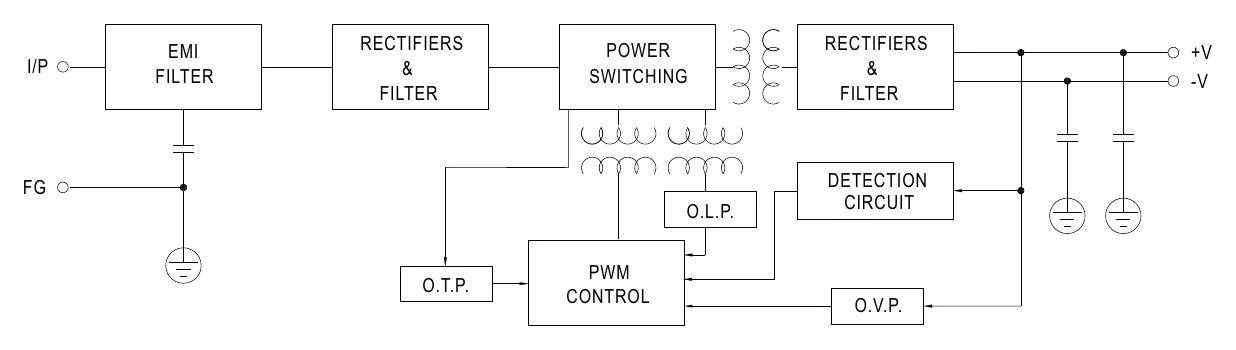

SE-600-36 Block Diagram
Block Diagram

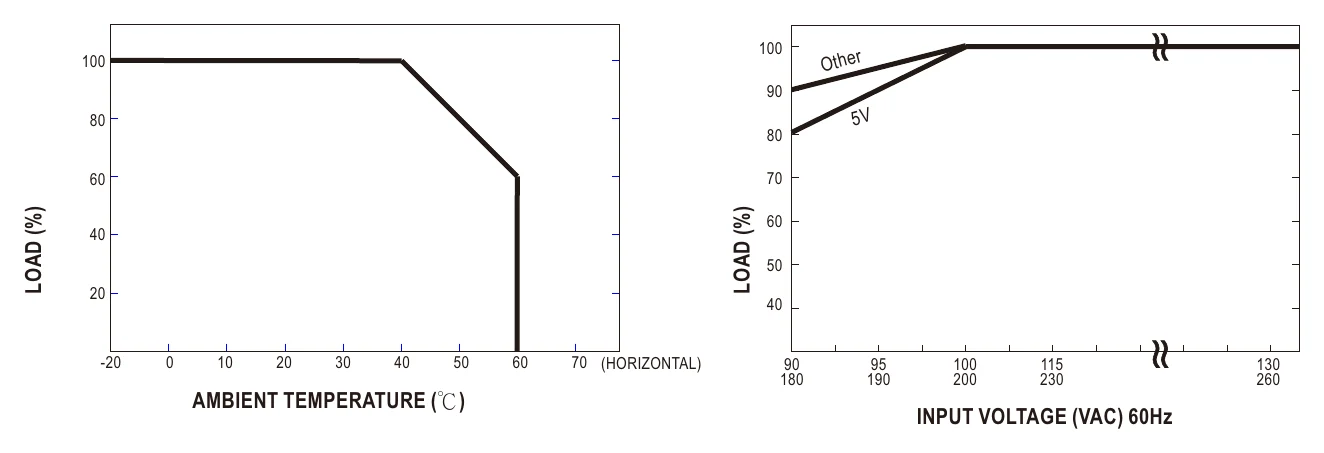

SE-600-36 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SE-600-36 for a 36V automation or motion-control subsystem?

Yes, if the subsystem requires a 36V constant-voltage source and its total demand stays within 597.6W and 16.6A. That makes it suitable for medium to high power 36V automation loads.

Is the SE-600-36 a good fit for a 36V industrial test setup?

It can be used where the equipment under test needs a 36V DC supply (adjustable 32-40V) and the load remains under 16.6A. The 90-132VAC / 180-264VAC input, selected by switch, is also useful when the same bench may be run from 115VAC or 230VAC mains.

Can this model power several 36V devices in one enclosure?

It can support multiple 36V constant-voltage loads when their combined requirement stays at or below 597.6W. For equipment builders using a shared 36V DC bus, the available 16.6A provides more headroom than lower-power 36V members of the SE series.

Would the SE-600-36 work for 36V embedded or industrial electronics that need a stable DC rail?

Yes, as long as the electronics are designed for 36V constant-voltage input and remain inside the unit's 597.6W and 16.6A rating. This model is better matched to larger 36V systems than compact low-power supplies because of that power rating.

What is the difference between the SE-600-36 and the other SE-600 voltage options?

The listed SE-600 family includes 5V 100A 500W, 12V 50A 600W, 15V 40A 600W, 24V 25A 600W, 27V 22.2A 599.4W, 36V 16.6A 597.6W, and 48V 12.5A 600W. The SE-600-36 sits in the same chassis class but provides the 36V version with the current that corresponds to that output level.

Can the SE-600-36 be used in outdoor equipment or unconditioned spaces?

Its specified operating range is -20°C to +60°C with output load derating at higher temperatures, and humidity must stay within 20-90% RH non-condensing, which suits many indoor industrial environments. No IP rating is provided in the specs, so the listing does not indicate outdoor, washdown, or weather-exposed suitability.
