Mean Well

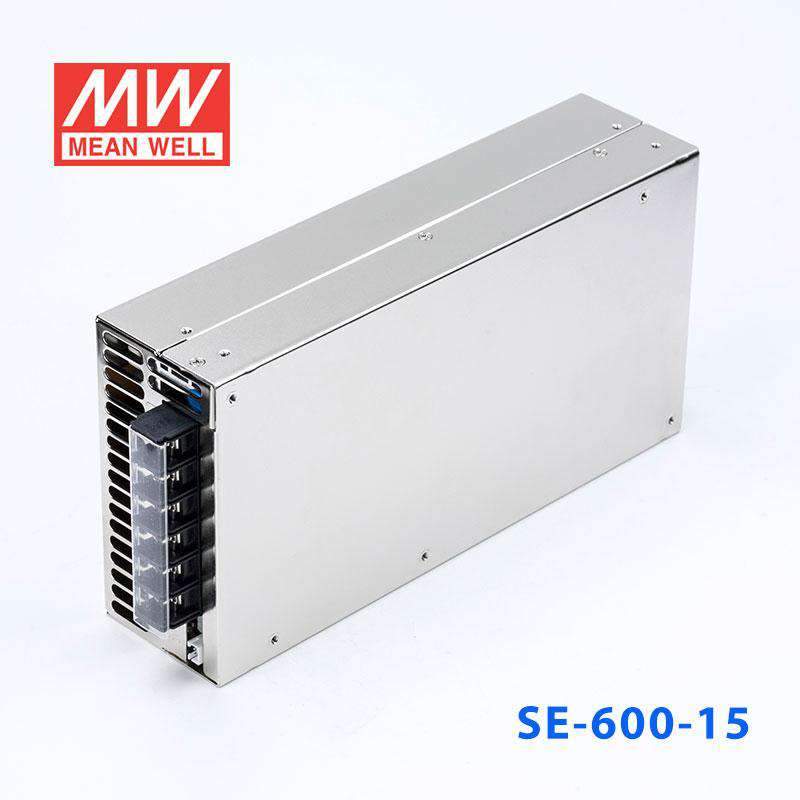

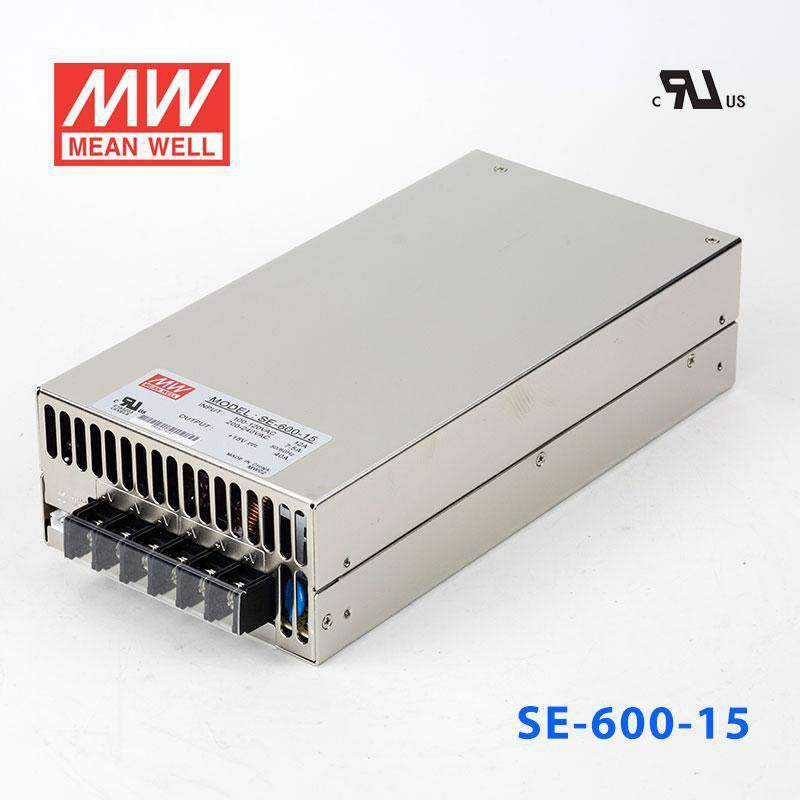

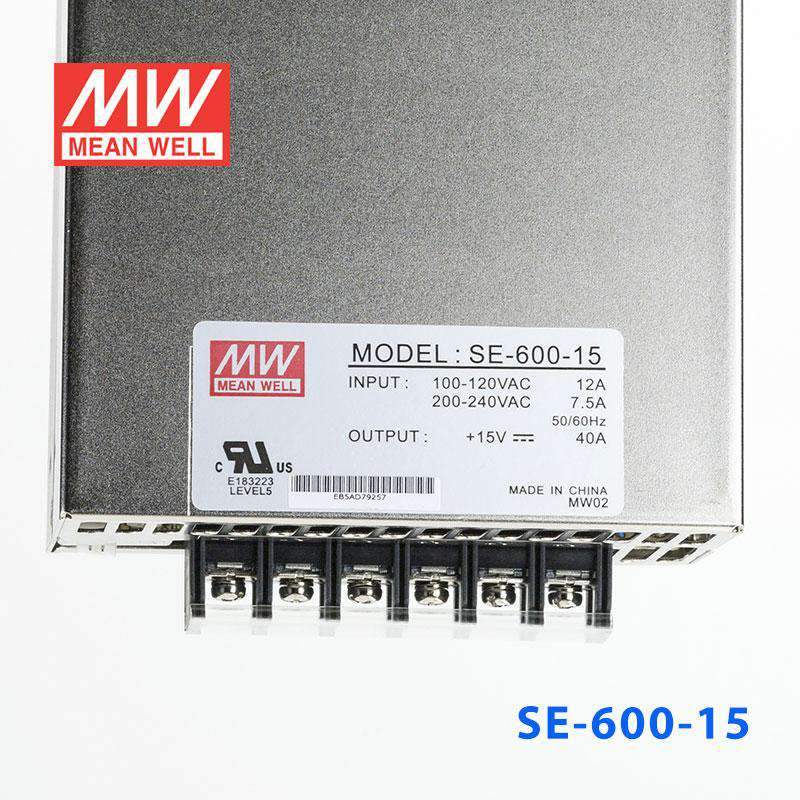

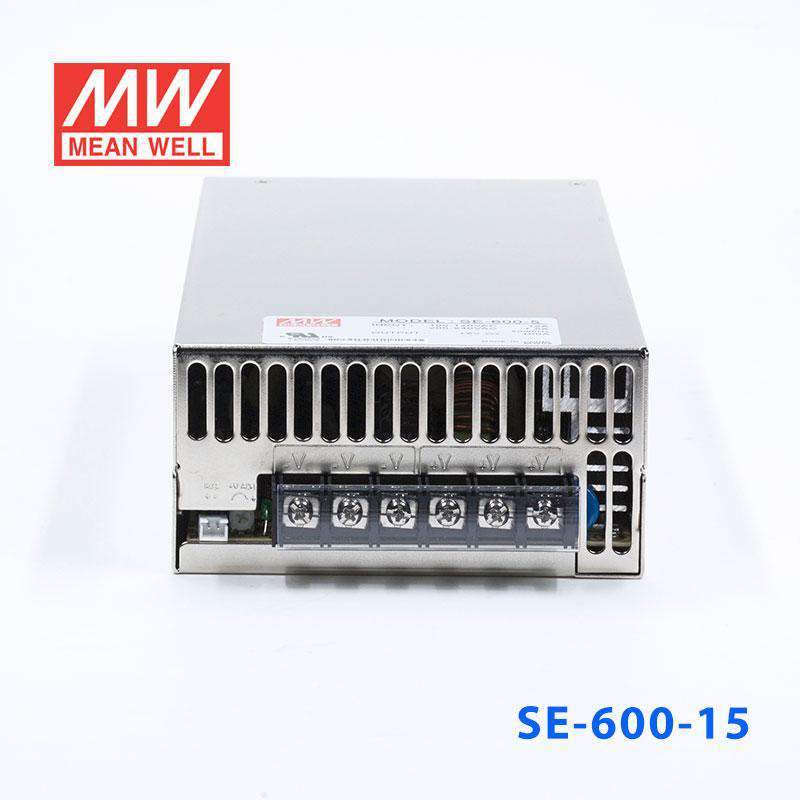

Mean Well SE-600-15 Power Supply 600W 15V 40A

economical model medium to high power(450W~1500W)
SKU SE-600-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LRS-600-15
Available to order
|

Overview

SE-600-15 is the 15V output model of this series: rated current 40A, rated power 600W, typical efficiency 84%.

Features

  • AC input active surge current limiting

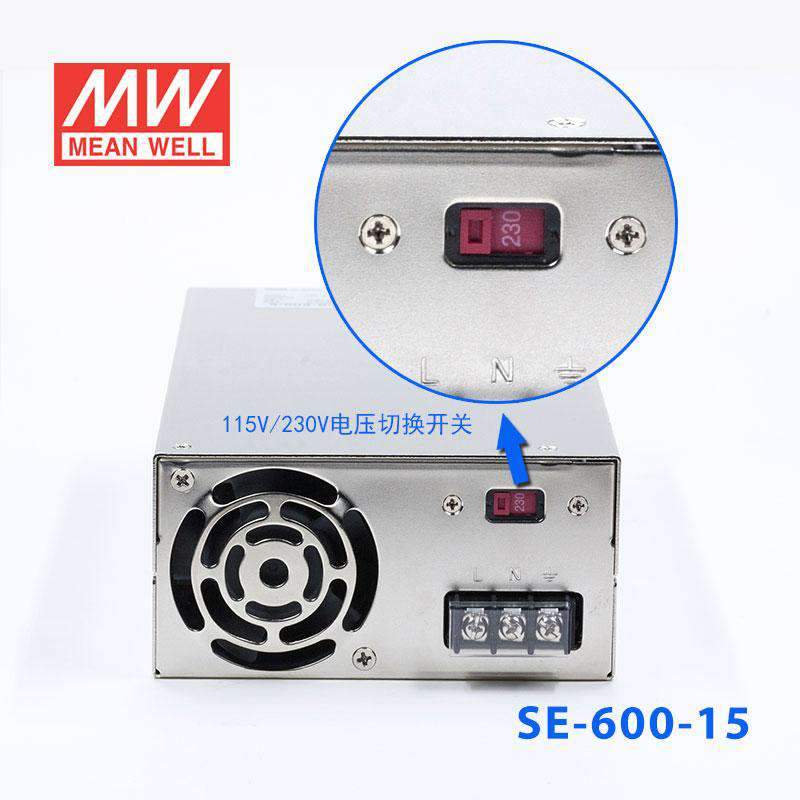

  • AC input range selected by switch
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 4.9w/in³
  • Built-in remote sense function
  • UL approved
  • Low cost
  • 2 years warranty

Specifications

SE-600-15Specifications from the official datasheet (2024-09-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
40A
CURRENT RANGE
0 ~ 40A
RATED POWER
600W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ.)
30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<2.0mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
18 ~ 21V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
85℃±5℃ (TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, KC K60950-1(for 12V,24V only), IS13252(Part1)/IEC60950-1(except for 48V) approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

OTHERS

MTBF
1529.1K hrs min. Telcordia TR/SR-332 (Bellcore) ; 204.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
247*127*63.5mm (L*W*H)
PACKING
2.1Kg; 6pcs/13.4Kg/1.03CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. This power supply does not meet the harmonic current requirements outlined by BS EN/EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill BS EN/EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-600-15 Mechanical Specification
Mechanical Specification
SE-600-15 Block Diagram
Block Diagram
SE-600-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SE-600-15 for a 15V industrial control or automation system?

Yes, if the equipment is designed for a constant 15V DC input and the total draw does not exceed 40A and 600W. This model is the 15V constant-voltage version in the SE-600 family.

Is the SE-600-15 suitable for 15V embedded electronics or lab equipment?

It can be used with 15V embedded, instrumentation, or bench systems that need a 15V DC supply, adjustable from 13.5V to 16.5V. Its output rating is 15V at up to 40A, for a total of 600W.

Would the SE-600-15 work for 15V production fixtures or test stations?

Yes, for 15V fixtures or stations that need constant-voltage DC and fit within the 40A output limit. Buyers should select it when the load specifically calls for 15V rather than 12V, 24V, or 48V.

Can this unit power 15V DC components in an OEM machine build?

It is suitable for OEM equipment that uses a fixed 15V DC bus and requires up to 600W. The constant-voltage design is appropriate where the downstream components are specified for 15V operation.

What is the difference between the SE-600-15 and other SE-600 models?

The listed SE-600 outputs are 5V at 100A and 500W, 12V at 50A and 600W, 15V at 40A and 600W, 24V at 25A and 600W, 27V at 22.2A and 599.4W, 36V at 16.6A and 597.6W, and 48V at 12.5A and 600W. The SE-600-15 is the 15V option with 40A output.

Can the SE-600-15 operate in warmer industrial environments?

The stated operating temperature range is -20°C to +60°C, with output load derating at higher ambient temperatures per the derating curve. The provided specs do not list an IP rating, so the product data here does not define outdoor or moisture-protected use.
