Mean Well

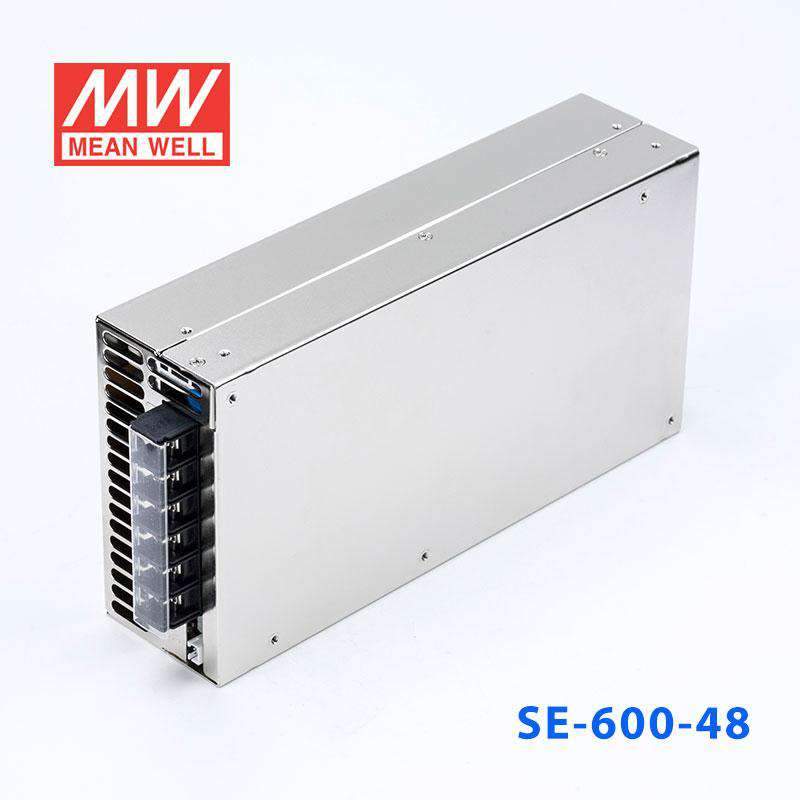

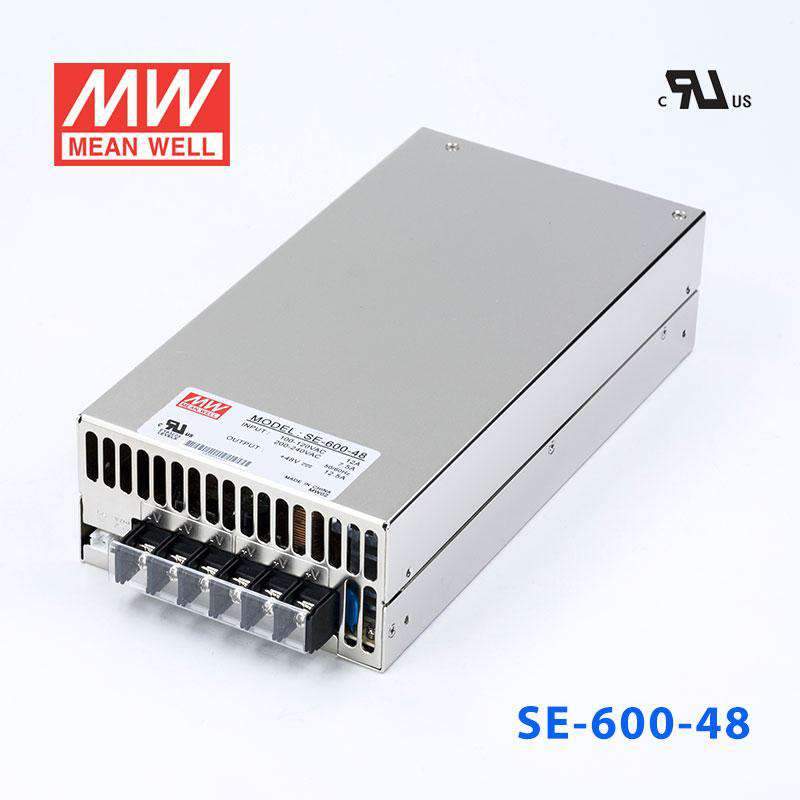

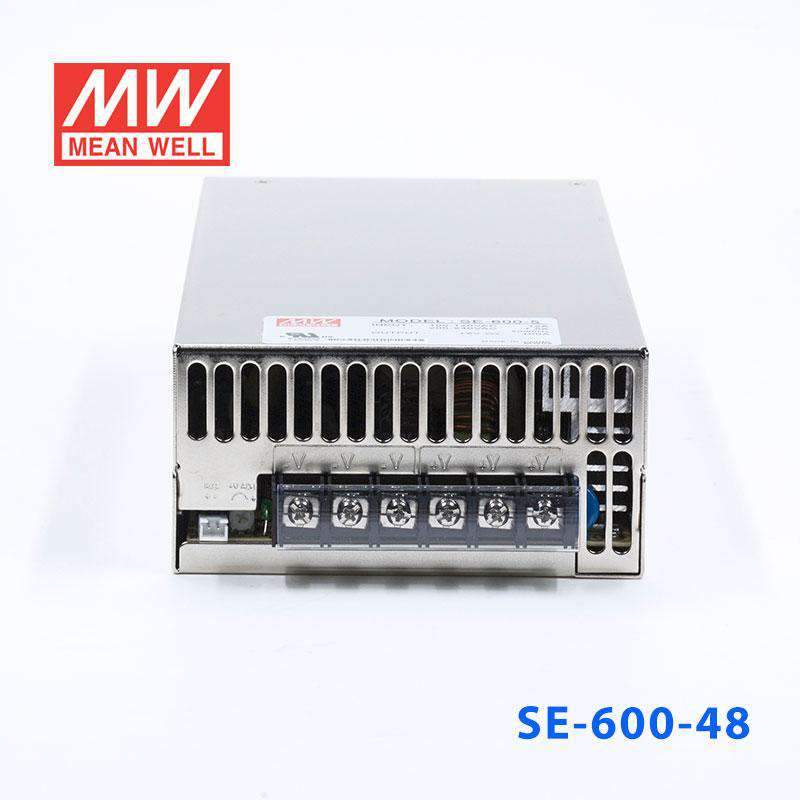

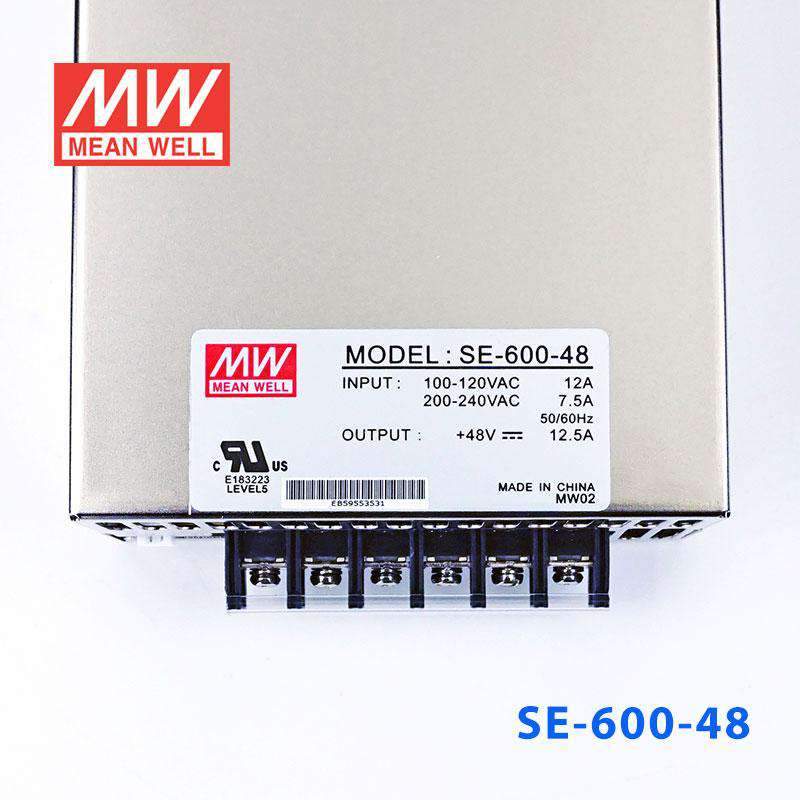

Mean Well SE-600-48 Power Supply 600W 48V 12.5A

economical model medium to high power(450W~1500W)
SKU SE-600-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

SE-600-48
End of Life, Succeeded by LRS-600-48
In stock
|

Overview

SE-600-48 is the 48V output model of this series: rated current 12.5A, rated power 600W, typical efficiency 88%.

Features

  • AC input active surge current limiting

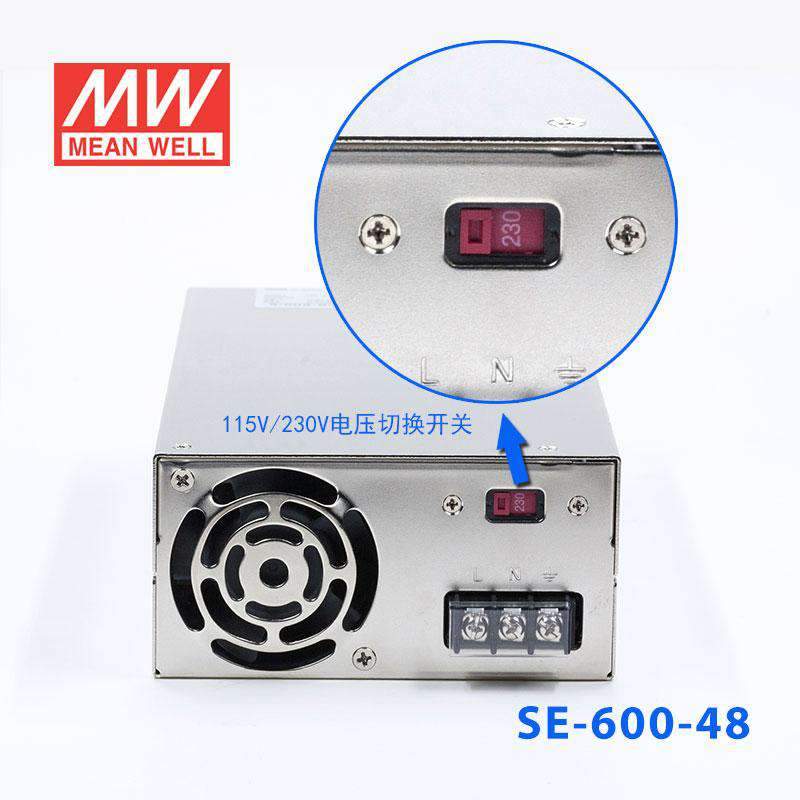

  • AC input range selected by switch
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 4.9w/in³
  • Built-in remote sense function
  • UL approved
  • Low cost
  • 2 years warranty

Specifications

SE-600-48Specifications from the official datasheet (2024-09-30 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
12.5A
CURRENT RANGE
0 ~ 12.5A
RATED POWER
600W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
43 ~ 56V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ.)
30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<2.0mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
85℃±5℃ (TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, KC K60950-1(for 12V,24V only), IS13252(Part1)/IEC60950-1(except for 48V) approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

OTHERS

MTBF
1529.1K hrs min. Telcordia TR/SR-332 (Bellcore) ; 204.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
247*127*63.5mm (L*W*H)
PACKING
2.1Kg; 6pcs/13.4Kg/1.03CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. This power supply does not meet the harmonic current requirements outlined by BS EN/EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill BS EN/EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-600-48 Mechanical Specification
Mechanical Specification
SE-600-48 Block Diagram
Block Diagram
SE-600-48 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SE-600-48 for 48V telecom or industrial network equipment?

Yes, if the equipment requires 48V constant-voltage input and the total load does not exceed 600W or 12.5A. That rating is appropriate for higher-power 48V systems compared with smaller 48V SE supplies.

Is the SE-600-48 suitable for a 48V automation panel or control enclosure?

It is a fit for 48V DC automation or control equipment that uses a constant-voltage supply and stays within 12.5A. The 90-132VAC / 180-264VAC input, selected by switch, also makes it practical on either 115VAC or 230VAC mains.

Can this model power multiple 48V embedded or communications loads from one source?

Yes, for systems built around a 48V bus, this unit can support several loads if the combined requirement remains at or below 600W and 12.5A. That makes it suited to centralized 48V power distribution in higher-power equipment.

Would the SE-600-48 work for a 48V bench or production test application?

It can work well for a 48V test station that needs a constant-voltage source with up to 12.5A available, with the output adjustable from 43V to 56V. The 600W rating gives more margin for larger 48V test loads than entry-level power supplies.

How does the SE-600-48 compare with the other SE-600 models?

The listed SE-600 options are 5V at 100A and 500W, 12V at 50A and 600W, 15V at 40A and 600W, 24V at 25A and 600W, 27V at 22.2A and 599.4W, 36V at 16.6A and 597.6W, and 48V at 12.5A and 600W. The SE-600-48 is the highest-voltage constant-voltage version in that group, with current scaled accordingly.

Is the SE-600-48 rated for outdoor use?

The operating temperature range is -20°C to +60°C, so the thermal specification fits many industrial indoor environments within that range. No IP rating is shown in the provided data, so the product information does not identify it for exposed outdoor service.
