Mean Well

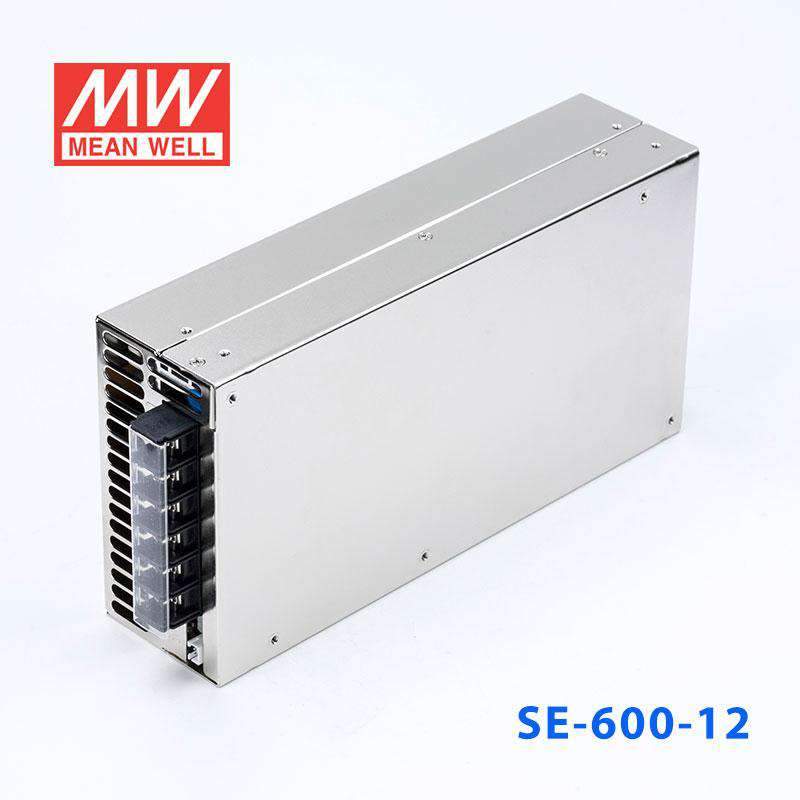

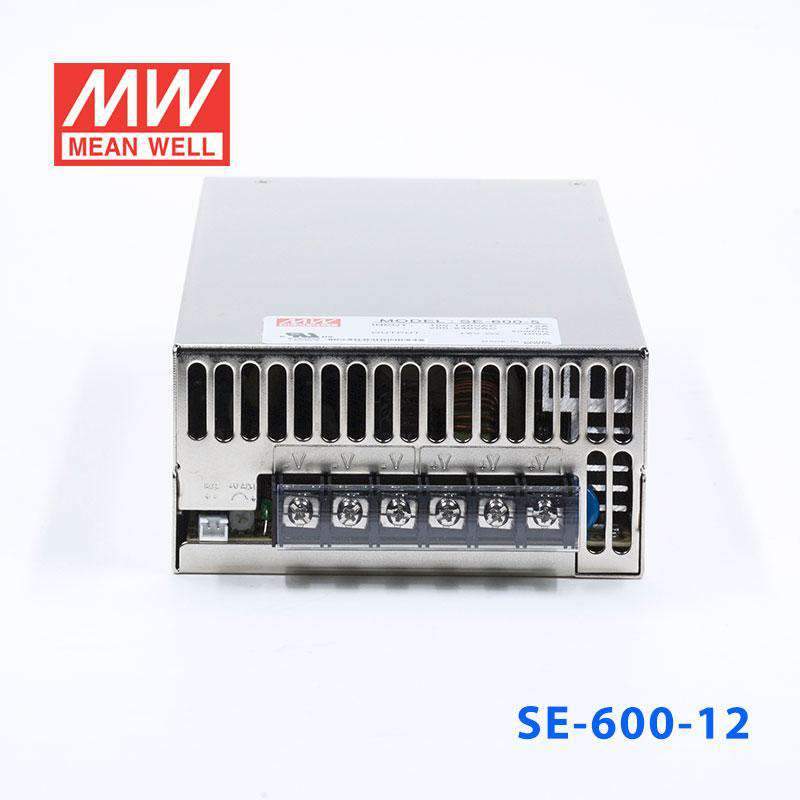

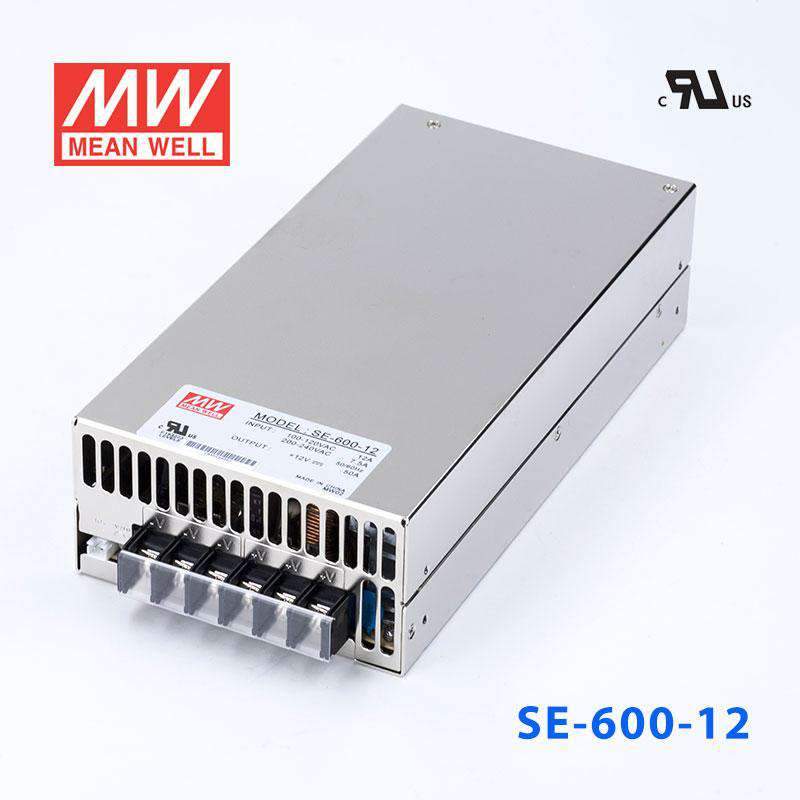

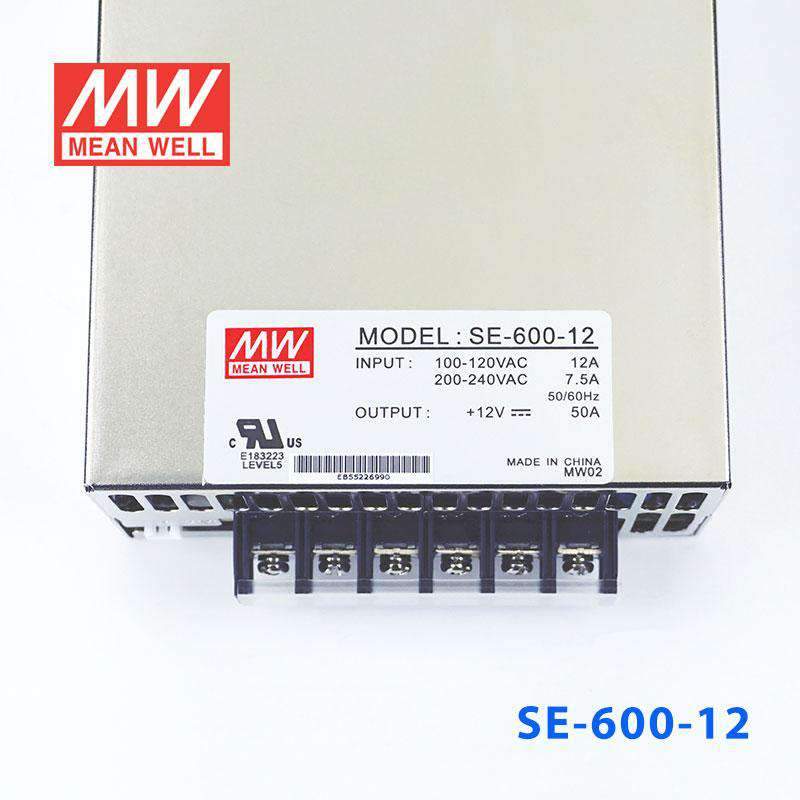

Mean Well SE-600-12 Power Supply 600W 12V 50A

economical model medium to high power(450W~1500W)
SKU SE-600-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

SE-600-12
End of Life, Succeeded by LRS-600-12
Available to order
|

Overview

SE-600-12 is the 12V output model of this series: rated current 50A, rated power 600W, typical efficiency 83%.

Features

  • AC input active surge current limiting

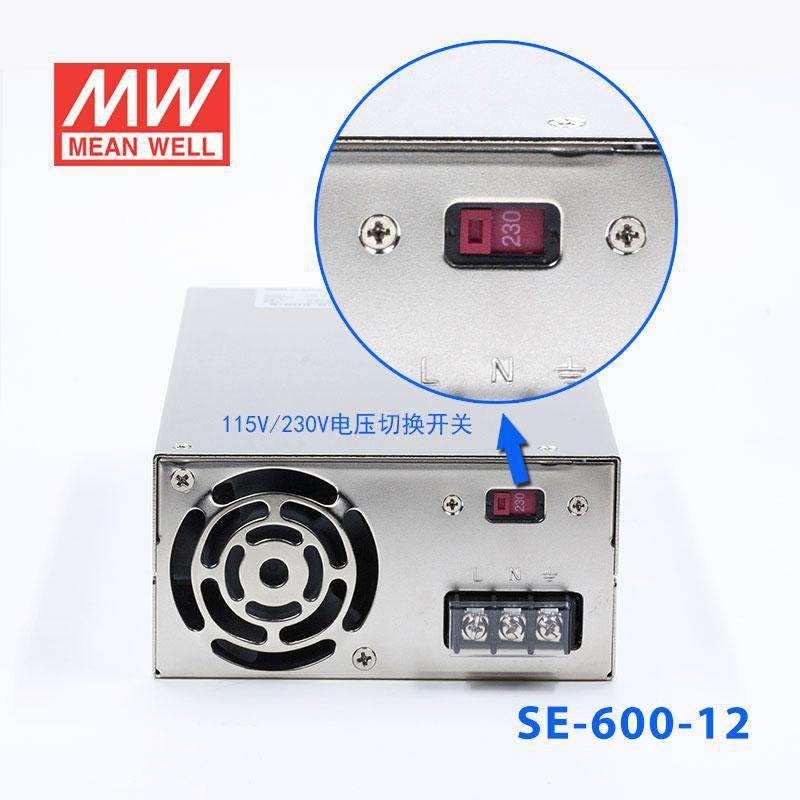

  • AC input range selected by switch
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 4.9w/in³
  • Built-in remote sense function
  • UL approved
  • Low cost
  • 2 years warranty

Specifications

SE-600-12Specifications from the official datasheet (2024-09-30 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
50A
CURRENT RANGE
0 ~ 50A
RATED POWER
600W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
10 ~ 13.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
83%
AC CURRENT (Typ.)
12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ.)
30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<2.0mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
85℃±5℃ (TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, KC K60950-1(for 12V,24V only), IS13252(Part1)/IEC60950-1(except for 48V) approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

OTHERS

MTBF
1529.1K hrs min. Telcordia TR/SR-332 (Bellcore) ; 204.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
247*127*63.5mm (L*W*H)
PACKING
2.1Kg; 6pcs/13.4Kg/1.03CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. This power supply does not meet the harmonic current requirements outlined by BS EN/EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill BS EN/EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-600-12 Mechanical Specification
Mechanical Specification
SE-600-12 Block Diagram
Block Diagram
SE-600-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SE-600-12 for a 12V industrial automation panel?

Yes, if the panel devices require a constant 12V DC supply and the combined load remains within 50A and 600W. This model is a constant-voltage 12V unit intended for medium to high power DC applications.

Is the SE-600-12 suitable for 12V embedded computers, routers, or control systems?

It can be used for 12V embedded or IT hardware that is designed for a fixed 12V DC input. The available output is 12V at up to 50A, with a total power rating of 600W.

Would this power supply work for 12V DC motors, relays, or automation accessories?

It can support 12V automation accessories and other 12V DC loads when they require constant voltage and stay inside the 50A, 600W rating. The important match is the 12V output, not a different system voltage from the same series.

Can the SE-600-12 power a 12V test rack or burn-in station?

Yes, it is appropriate for 12V bench, fixture, or burn-in applications that need a higher-power constant-voltage source. Compared with smaller 12V models in the series, this version provides 600W and 50A.

How does the SE-600-12 compare with the other SE-600 voltage options?

The listed SE-600 family options are 5V at 100A and 500W, 12V at 50A and 600W, 15V at 40A and 600W, 24V at 25A and 600W, 27V at 22.2A and 599.4W, 36V at 16.6A and 597.6W, and 48V at 12.5A and 600W. The SE-600-12 is the 12V, 50A member of that group.

Is the SE-600-12 intended for indoor use only?

The product data gives an operating temperature range of -20°C to +60°C, which defines the stated ambient range. The provided specs do not show an IP rating, so outdoor sealing or washdown suitability is not specified here.
