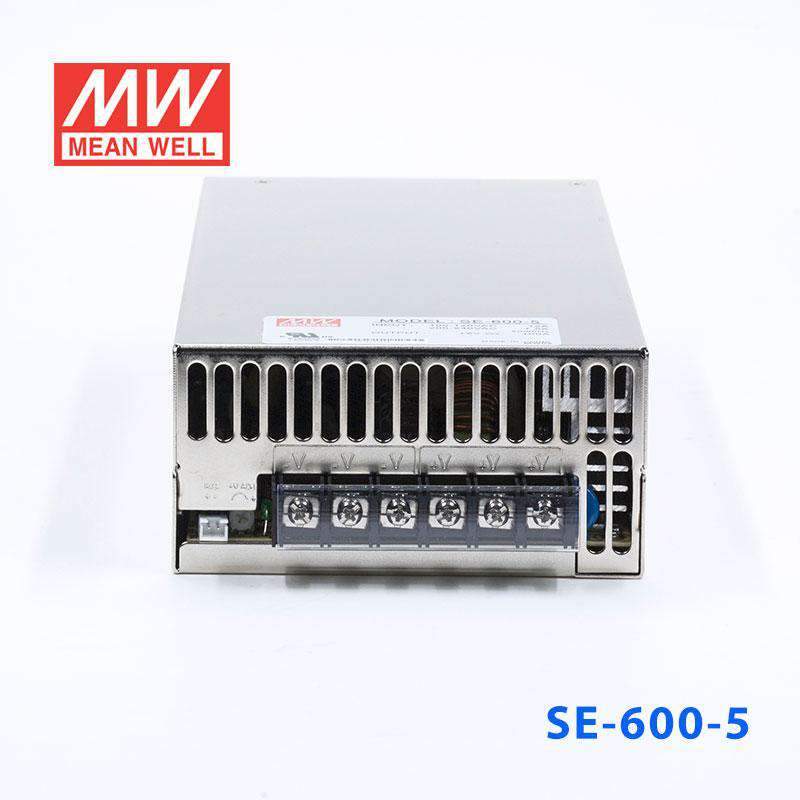

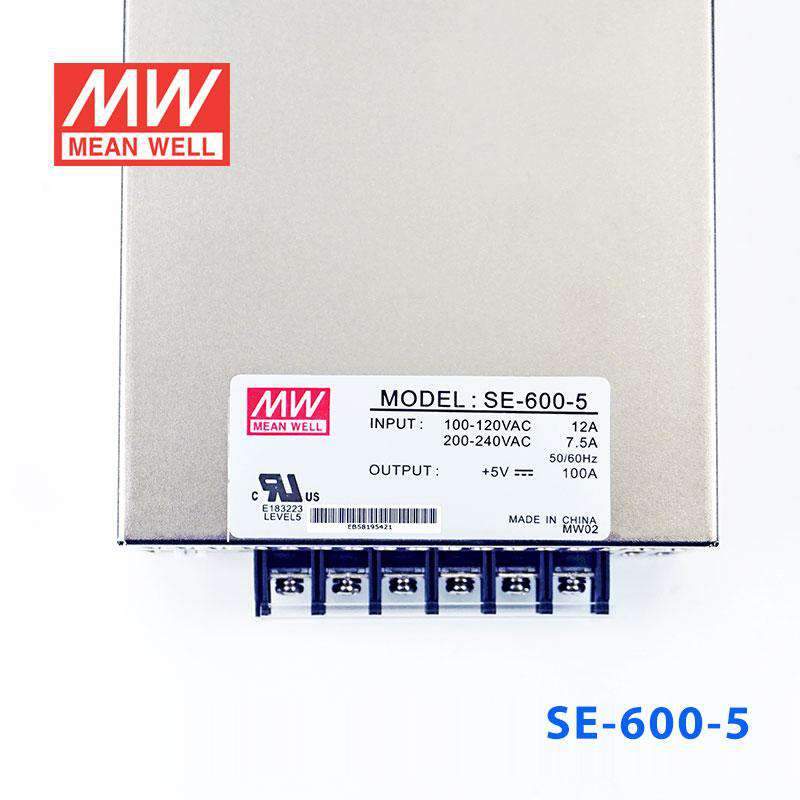

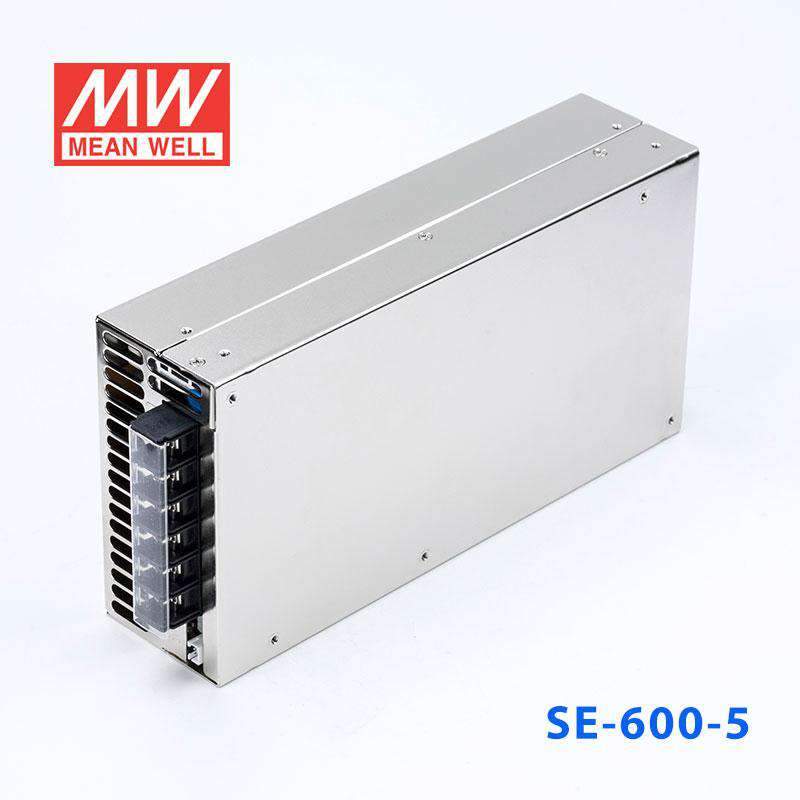

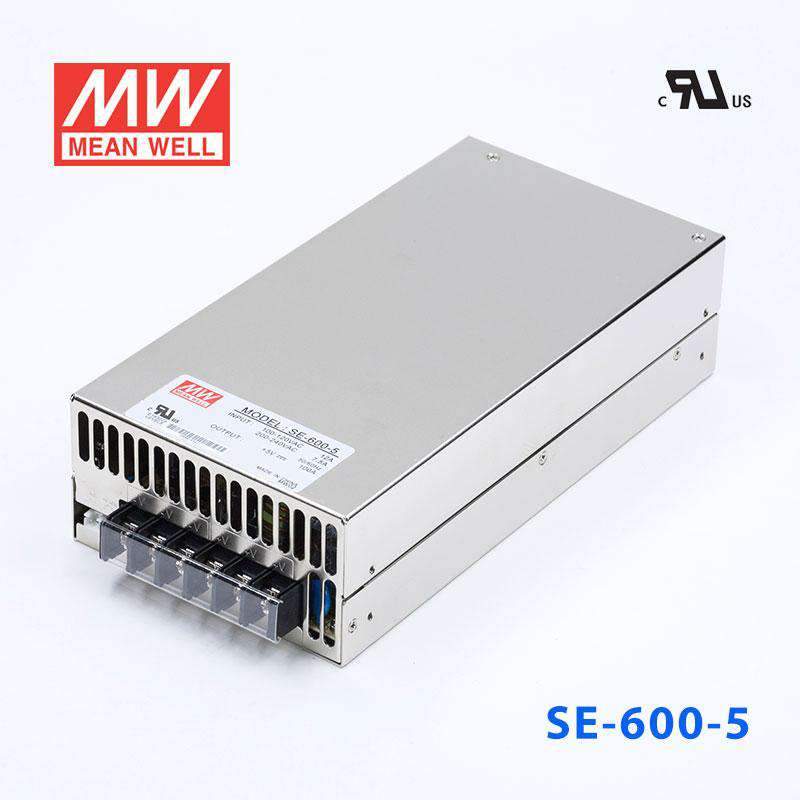

Mean Well SE-600-5 Power Supply 500W 5V 100A

economical model medium to high power(450W~1500W)
SKU SE-600-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LRS-600-5
Available to order
|

Overview

SE-600-5 is the 5V output model of this series: rated current 100A, rated power 500W, typical efficiency 78%.

Features

  • AC input active surge current limiting

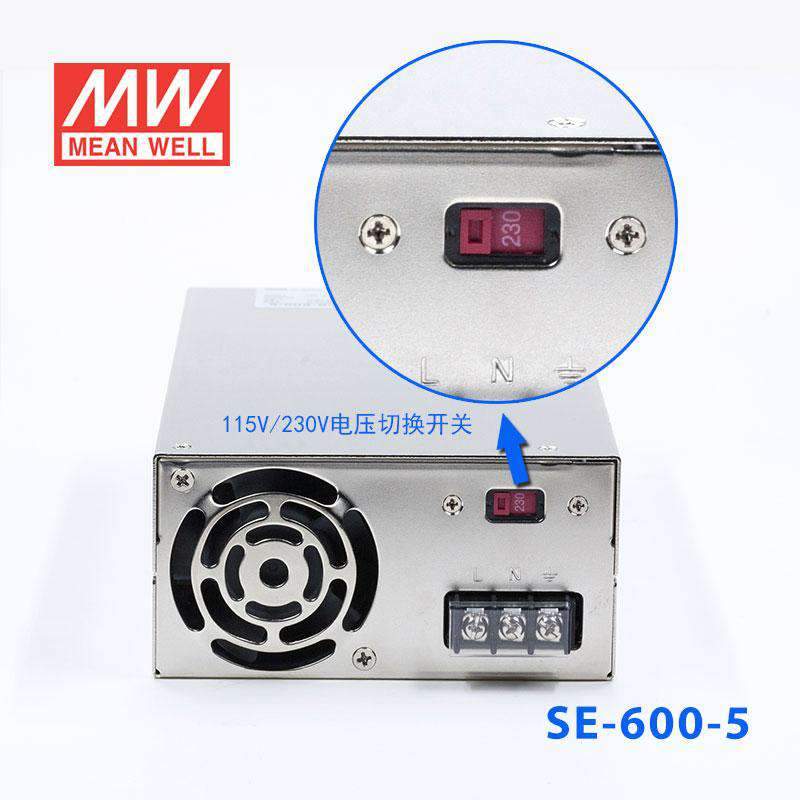

  • AC input range selected by switch
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • High power density 4.9w/in³
  • Built-in remote sense function
  • UL approved
  • Low cost
  • 2 years warranty

Specifications

SE-600-5Specifications from the official datasheet (2024-09-30 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
100A
CURRENT RANGE
0 ~ 100A
RATED POWER
500W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
78%
AC CURRENT (Typ.)
12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ.)
30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<2.0mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 125% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
5.75 ~ 6.3V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
85℃±5℃ (TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, KC K60950-1(for 12V,24V only), IS13252(Part1)/IEC60950-1(except for 48V) approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

OTHERS

MTBF
1529.1K hrs min. Telcordia TR/SR-332 (Bellcore) ; 204.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
247*127*63.5mm (L*W*H)
PACKING
2.1Kg; 6pcs/13.4Kg/1.03CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. This power supply does not meet the harmonic current requirements outlined by BS EN/EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill BS EN/EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-600-5 Mechanical Specification
Mechanical Specification
SE-600-5 Block Diagram
Block Diagram
SE-600-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SE-600-5 for a high-current 5V industrial electronics rail?

Yes, this model is aimed at 5V constant-voltage applications that need very high current, with ratings up to 100A and 500W. That makes it more appropriate for dense 5V logic or processing loads than lower-current 5V supplies.

Is the SE-600-5 suitable for powering multiple 5V embedded boards from one supply?

It can be, as long as the boards share a 5V constant-voltage bus and their combined demand remains within 500W and 100A. The high current capacity is the main reason to choose this model over smaller 5V supplies.

Would the SE-600-5 work for a 5V industrial computing or controller application?

Yes, when the system requires a regulated 5V output and needs substantially more current than compact supplies can deliver. With 100A available, it is positioned for heavier 5V loads in industrial or embedded equipment rather than light-duty electronics.

Can this model be used in a 5V production test or burn-in rack?

It can fit 5V test racks that need a constant-voltage source with up to 500W available. The 90-132VAC / 180-264VAC input, selected by switch, also lets the rack run on either 115VAC or 230VAC mains.

How does the SE-600-5 differ from other SE-600 voltage versions?

Within the listed SE-600 family, the models are 5V 100A 500W, 12V 50A 600W, 15V 40A 600W, 24V 25A 600W, 27V 22.2A 599.4W, 36V 16.6A 597.6W, and 48V 12.5A 600W. The SE-600-5 stands out as the lowest-voltage option and the highest-current one in that group.

Can the SE-600-5 be used outdoors or in hot industrial areas?

Its operating temperature range is -20°C to +60°C, with output load derating at higher temperatures per the derating curve, so it supports many indoor industrial environments within that band. No IP rating is listed, so the provided specifications do not indicate weatherproof or outdoor exposure suitability.
