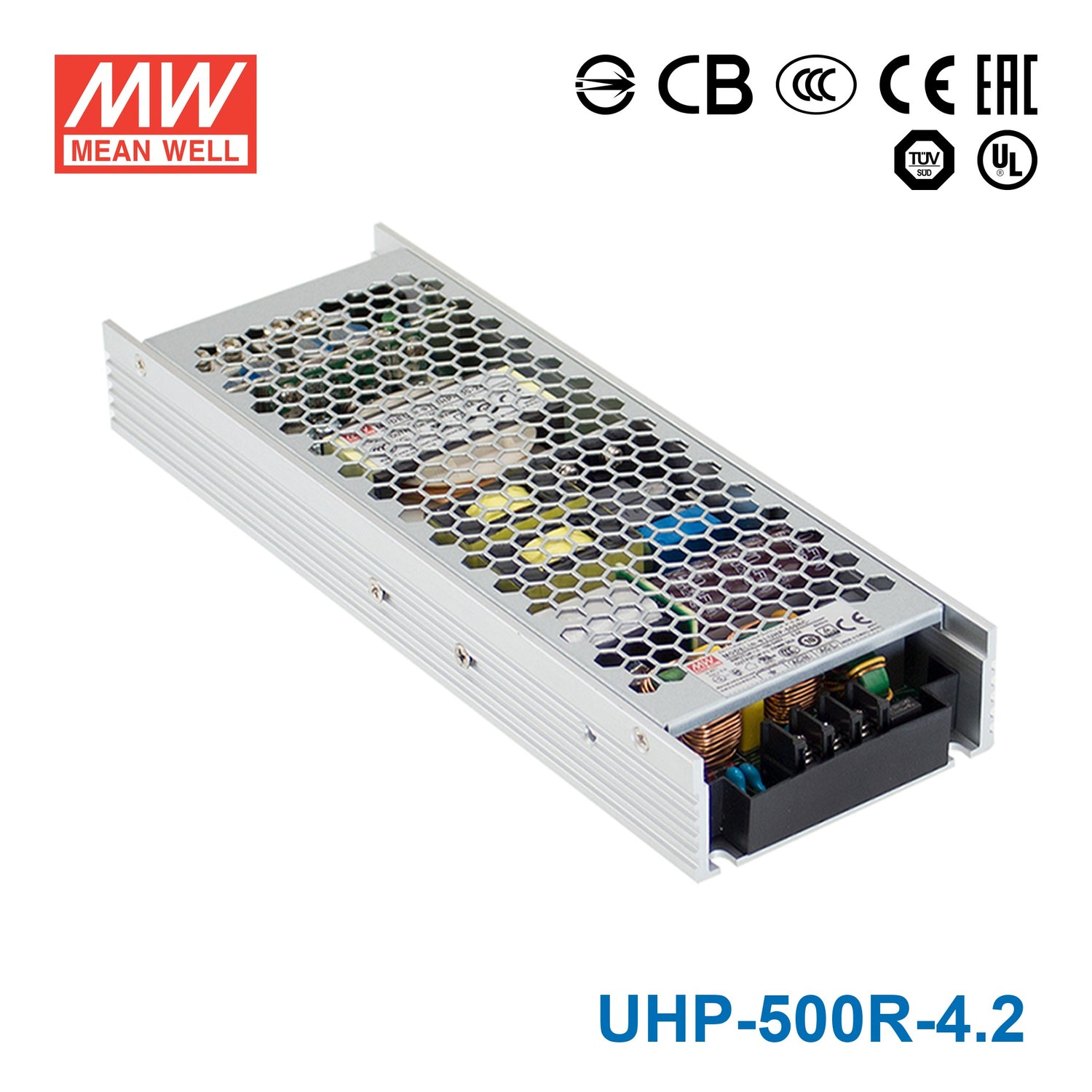

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well UHP-500R-4.2 Power Supply 336W 4.2V - Redundant 80A

slim and low profilefanless designbuilt-in DC OK and redundant function

SKU:

UHP-500R-4.2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The UHP-500R is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ 232mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ DC OK relay contact output
✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

Can I use the UHP-500R-4.2 for a 4.2V high-current embedded or processor power rail?

Yes, this model is a 4.2V constant voltage power supply rated for 336W and 80A. It is intended for applications that specifically require a very low voltage rail with high available current.

Is this power supply suitable for low-voltage industrial electronics that need high current?

It can be suitable where the load is designed for 4.2V constant voltage input and requires substantial current capacity. The unit provides up to 80A at 4.2V with 336W total power.

Can the UHP-500R-4.2 support a centralized 4.2V DC bus in test or automation equipment?

Yes, if the equipment is built around a 4.2V constant voltage bus and the combined demand stays within 80A and 336W. This model is more specialized than the higher-voltage versions because the output is only 4.2V.

Is this a fit for compact equipment that needs a low-profile, fanless 4.2V supply?

The listed features include slim and low profile construction, fanless design, and dimensions of 232.0 × 81.0 × 31.0 mm. That makes it relevant for compact enclosures needing a 4.2V high-current source.

Can the UHP-500R-4.2 be used in outdoor or wide-temperature environments?

Its operating temperature range is -30°C to +70°C, so the temperature specification is broad. However, no IP rating is provided in the specs, so the published data does not confirm exposed outdoor suitability.

How does the UHP-500R-4.2 differ from the other UHP-500R redundant models?

The listed UHP-500R versions are 4.2V 336W 80A, 5V 400W 80A, 12V 500.4W 41.7A, 15V 501W 33.4A, 24V 501.6W 20.9A, 36V 500.4W 13.9A, and 48V 501.6W 10.45A. The UHP-500R-4.2 is the lowest-voltage option in that group and also one of the highest-current options at 80A.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well UHP-500R-5 Power Supply 400W 5V - Redundant 80A	400W	5V	80A	View
Mean Well UHP-500R-48 Power Supply 501W 48V - Redundant 10.45A	501.6W	48V	10.45A	View
Mean Well UHP-500R-36 Power Supply 500.4W 36V - Redundant 13.9A	500.4W	36V	13.9A	View
Mean Well UHP-500R-24 Power Supply 501.6W 24V - Redundant 20.9A	501.6W	24V	20.9A	View
Mean Well UHP-500R-15 Power Supply 501W 15V - Redundant 33.4A	501W	15V	33.4A	View
Mean Well UHP-500R-12 Power Supply 500.4W 12V - Redundant 41.7A	500.4W	12V	41.7A	View
