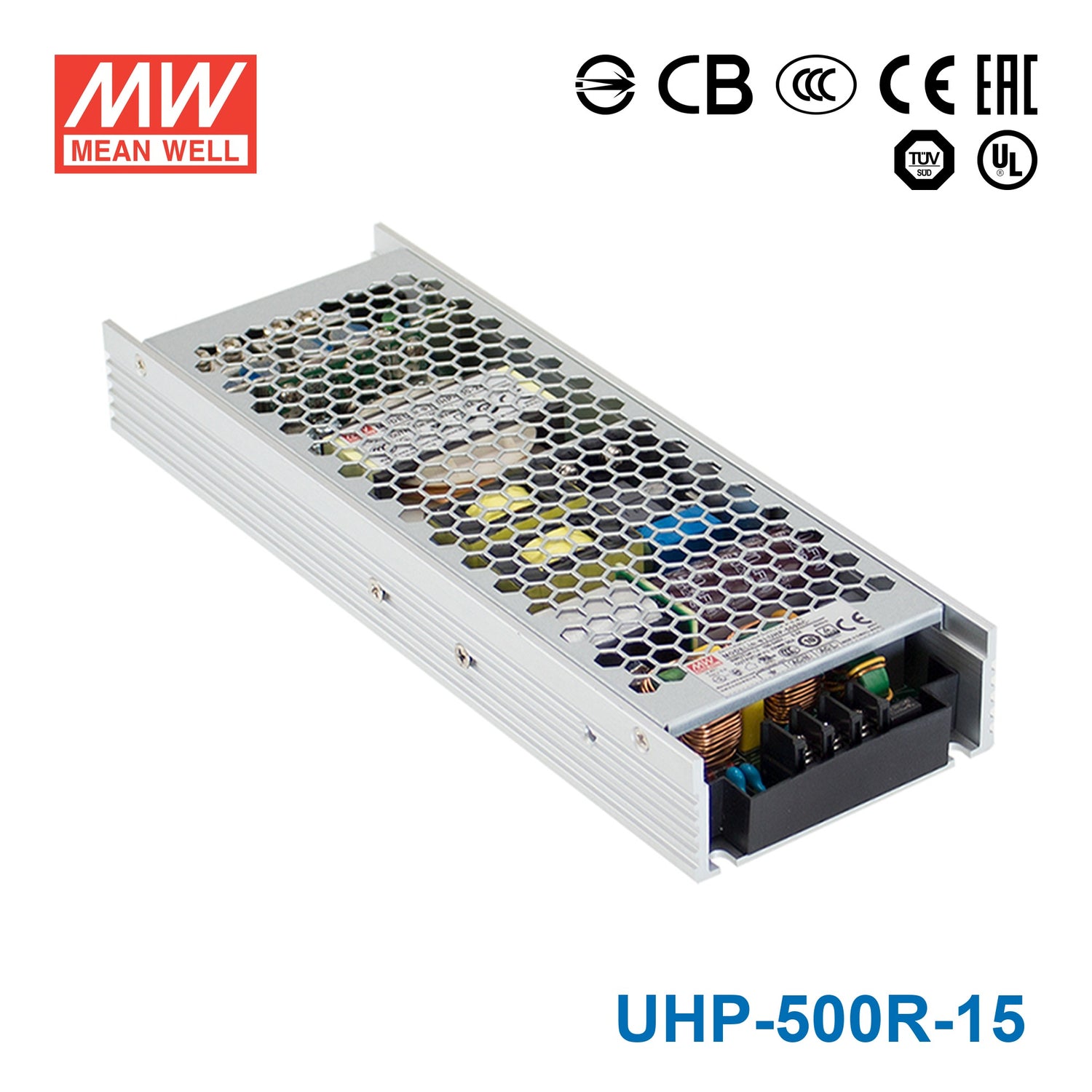

Mean Well UHP-500R-15 Power Supply 501W 15V - Redundant
Please Login for Pricing
Description
Description
The UHP-500R is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating501 Watt
-
Output Voltage15 Volt
-
Rated Current33.4 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500R-15 for a 15V industrial test or measurement rack?
Yes, this model is a 15V constant voltage power supply rated for 501W and 33.4A. It is a practical choice for industrial or lab-style DC systems that need regulated 15V power with higher available current.
Is this a good power supply for 15V automation electronics or interface modules?
It can be used where the equipment is designed for a 15V constant voltage input. With 33.4A output current and 501W total power, it supports larger 15V automation assemblies than lower-power 15V units.
Can the UHP-500R-15 support a 15V embedded system with multiple powered subsystems?
Yes, if the embedded system requires 15V constant voltage and the combined load stays within 33.4A and 501W. The built-in DC OK and redundant function features can also be useful in monitored power architectures.
Can this model be used in low-profile equipment enclosures with limited airflow?
The listed features include a slim, low-profile form factor, fanless design, and dimensions of 232.0 × 81.0 × 31.0 mm. Those specs make it relevant for space-constrained industrial or IT enclosures where a 15V supply is required.
Is the UHP-500R-15 rated for outdoor use or cold environments?
Its operating temperature range is -30°C to +70°C, so the temperature specification supports both cold and hot environments. However, no IP rating is provided, so the published specs do not confirm suitability for direct outdoor exposure.
How does the UHP-500R-15 differ from the other UHP-500R redundant voltage options?
The UHP-500R range listed here includes 4.2V 336W 80A, 5V 400W 80A, 12V 500.4W 41.7A, 15V 501W 33.4A, 24V 501.6W 20.9A, 36V 500.4W 13.9A, and 48V 501.6W 10.45A. The UHP-500R-15 version provides 15V output with 501W total power and 33.4A current.
Other UHP-500R Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well UHP-500R-5 Power Supply 400W 5V - Redundant | 400W | 5V | 80A | View |
| Mean Well UHP-500R-48 Power Supply 501W 48V - Redundant | 501.6W | 48V | 10.45A | View |
| Mean Well UHP-500R-4.2 Power Supply 336W 4.2V - Redundant | 336W | 4.2V | 80A | View |
| Mean Well UHP-500R-36 Power Supply 500.4W 36V - Redundant | 500.4W | 36V | 13.9A | View |
| Mean Well UHP-500R-24 Power Supply 501.6W 24V - Redundant | 501.6W | 24V | 20.9A | View |
| Mean Well UHP-500R-12 Power Supply 500.4W 12V - Redundant | 500.4W | 12V | 41.7A | View |
