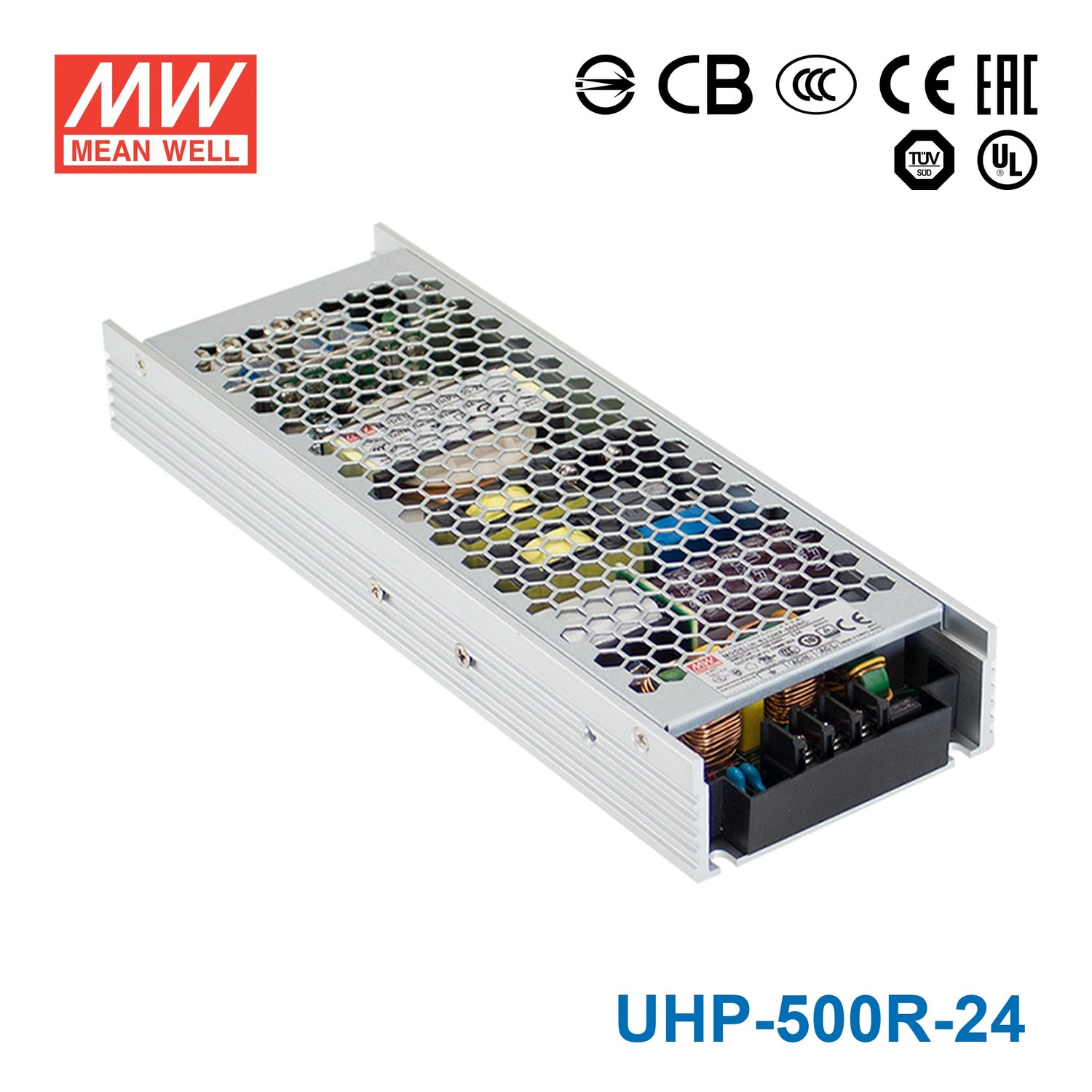

Mean Well UHP-500R-24 Power Supply 501.6W 24V - Redundant
Please Login for Pricing
Description
Description
The UHP-500R is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating501.6 Watt
-
Output Voltage24 Volt
-
Rated Current20.9 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500R-24 for a 24V PLC, sensor, and control cabinet?
Yes, this model is a 24V constant voltage power supply rated for 501.6W and 20.9A. It fits 24V industrial control systems where the combined DC load remains within 20.9A and 501.6W.
Is this power supply suitable for 24V automation equipment or factory peripherals?
It is appropriate for 24V automation equipment that needs a regulated constant voltage source. The 24V output, 20.9A current rating, and 501.6W capacity make it suitable for higher-load 24V assemblies.
Can the UHP-500R-24 power a 24V industrial PC or communications enclosure?
Yes, if the enclosure and connected devices are designed for 24V DC input. This unit provides up to 20.9A at 24V and includes built-in DC OK and redundant function features for monitored systems.
Is this a fit for 24V conveyor, actuator, or machine subsystem power distribution?
It can be used for 24V machine subsystems that require constant voltage power and stay within 501.6W total load. The available 20.9A output supports larger 24V loads than lower-power supplies in the same voltage class.
Can I use the UHP-500R-24 in outdoor equipment cabinets?
The specified operating temperature range is -30°C to +70°C, which supports a broad temperature envelope. However, no IP rating is listed, so the specs do not confirm suitability for exposed outdoor, wet, or dusty installations.
What are the differences across the UHP-500R redundant series models?
The listed UHP-500R models are 4.2V 336W 80A, 5V 400W 80A, 12V 500.4W 41.7A, 15V 501W 33.4A, 24V 501.6W 20.9A, 36V 500.4W 13.9A, and 48V 501.6W 10.45A. The UHP-500R-24 version provides 24V output with 501.6W capacity and 20.9A current.
Other UHP-500R Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well UHP-500R-5 Power Supply 400W 5V - Redundant | 400W | 5V | 80A | View |
| Mean Well UHP-500R-48 Power Supply 501W 48V - Redundant | 501.6W | 48V | 10.45A | View |
| Mean Well UHP-500R-4.2 Power Supply 336W 4.2V - Redundant | 336W | 4.2V | 80A | View |
| Mean Well UHP-500R-36 Power Supply 500.4W 36V - Redundant | 500.4W | 36V | 13.9A | View |
| Mean Well UHP-500R-15 Power Supply 501W 15V - Redundant | 501W | 15V | 33.4A | View |
| Mean Well UHP-500R-12 Power Supply 500.4W 12V - Redundant | 500.4W | 12V | 41.7A | View |
