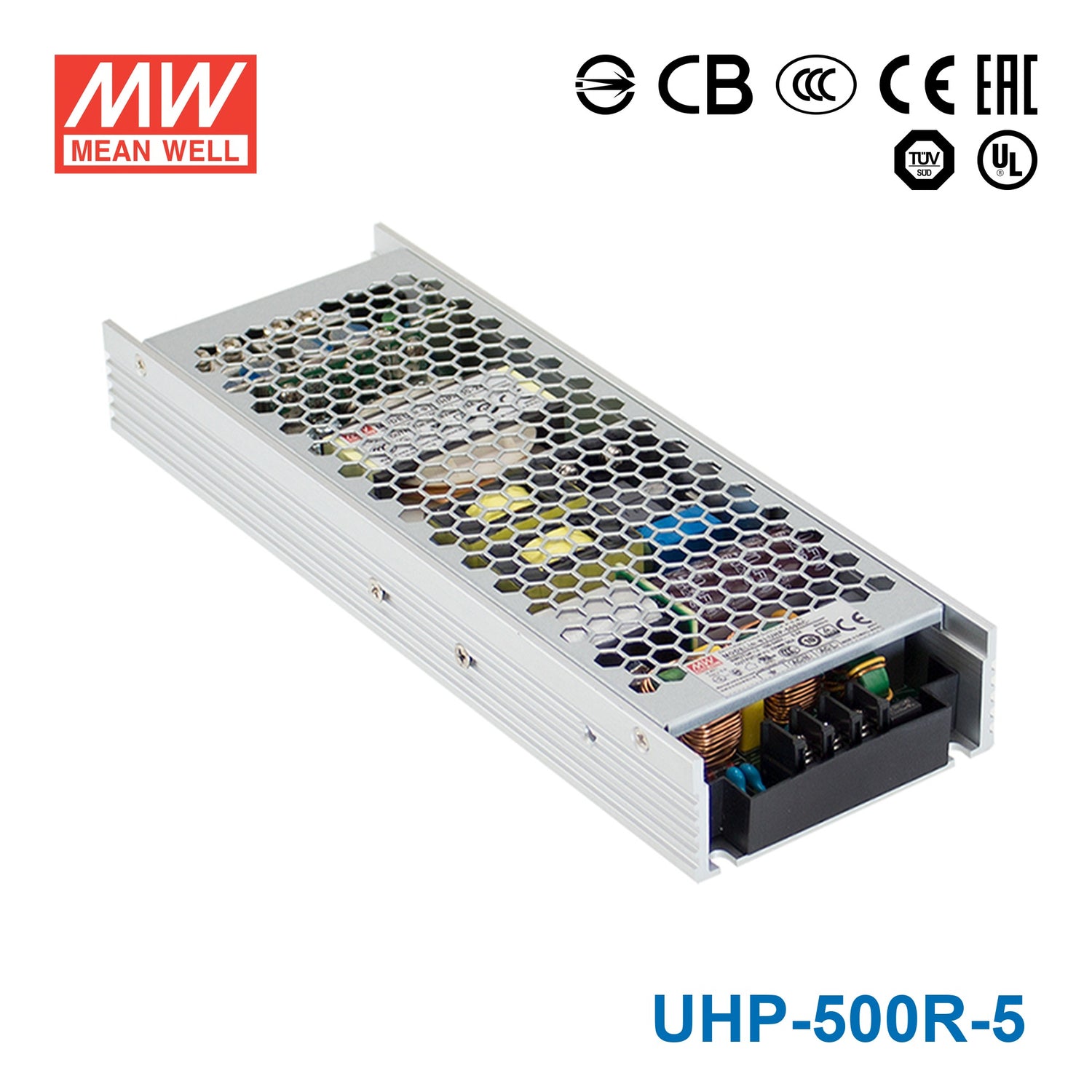

Mean Well UHP-500R-5 Power Supply 400W 5V - Redundant
Please Login for Pricing
Description
Description
The UHP-500R is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating400 Watt
-
Output Voltage5 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500R-5 for a 5V industrial controller or SBC cluster?
Yes, it is a constant voltage 5V supply with up to 80A and 400W available, which fits high-current 5V electronics. It is better suited to centralized 5V loads that need much more current than smaller 5V supplies can provide.
Is this power supply appropriate for 5V embedded systems with many peripherals on one power rail?
It can be a fit for 5V embedded systems if the total load stays within 80A and 400W. The redundant function and built-in DC OK feature are also relevant when the 5V rail is part of a monitored or fault-tolerant system.
Can the UHP-500R-5 support 5V automation electronics that draw very high current?
Yes, this model is intended for constant voltage 5V output and provides up to 80A. That makes it more appropriate for dense 5V control electronics than lower-current 5V models in the same series.
Is the UHP-500R-5 a good match for 5V communication or computing hardware in a compact enclosure?
It can suit compact enclosures because the housing is 232.0 × 81.0 × 31.0 mm and uses a fanless design. Electrically, the load still needs to match a 5V constant voltage source limited to 400W and 80A.
Can this 5V power supply be used in outdoor or unconditioned locations?
The specified operating temperature range is -30°C to +70°C, so the temperature spec is broad. No IP rating is listed in the provided data, so outdoor exposure or wet-location suitability is not established here.
How does the UHP-500R-5 compare with other 5V UHP power supplies?
The listed 5V models are UHP-200-5 at 200W and 40A, UHP-200A-5 at 200W and 40A, UHP-200R-5 at 200W and 40A, UHP-350-5 at 300W and 60A, UHP-350R-5 at 300W and 60A, UHP-500-5 at 400W and 80A, and UHP-500R-5 at 400W and 80A. This model is the 400W, 80A redundant 5V option in that group.
