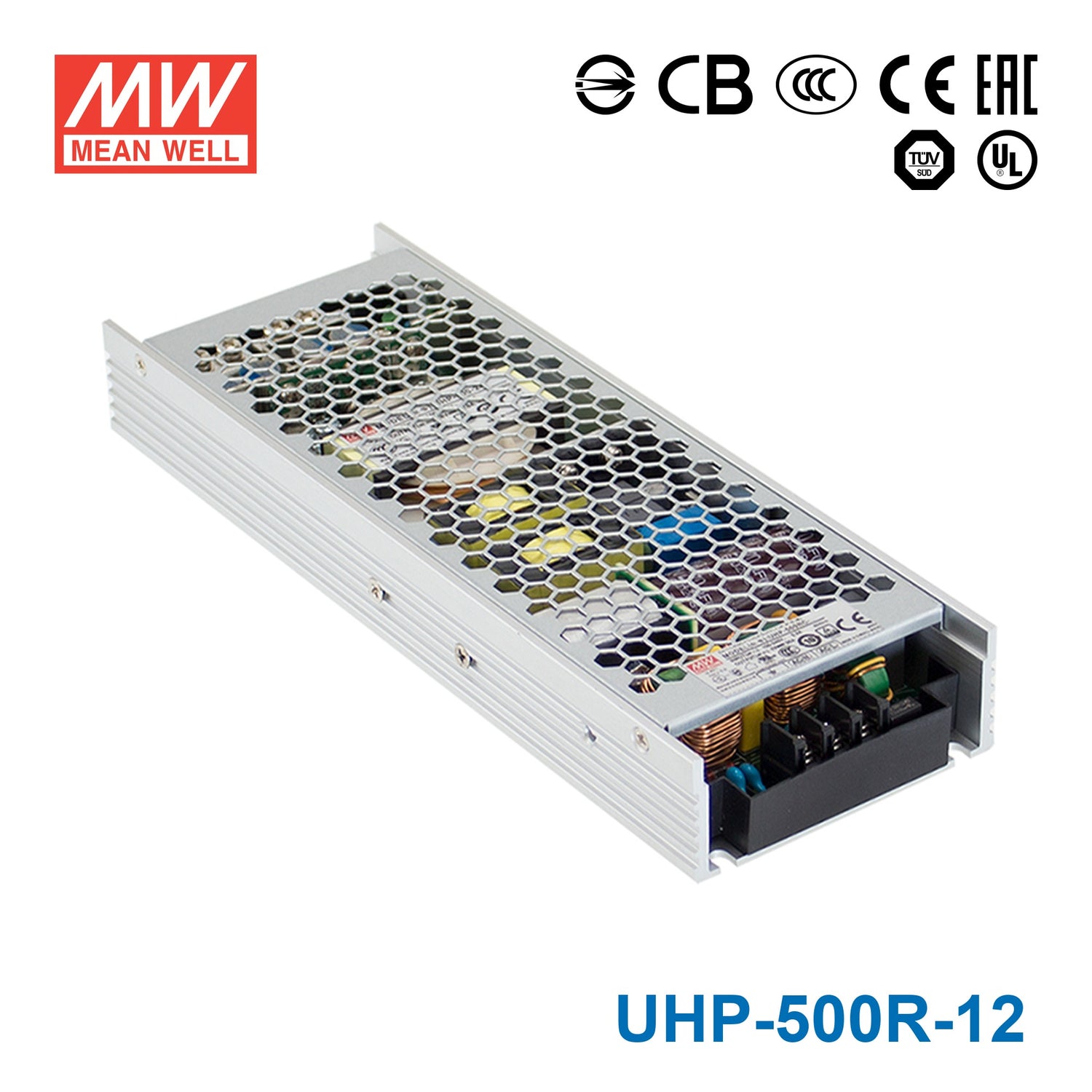

Mean Well UHP-500R-12 Power Supply 500.4W 12V - Redundant
Please Login for Pricing
Description
Description
The UHP-500R is a 500W Mean Well DIN rail power converter with a 232mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 232mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating500.4 Watt
-
Output Voltage12 Volt
-
Rated Current41.7 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23.2 cm
-
Width8.1 cm
-
Height3.1 cm
-
Weight0.91 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-500R-12 for a 12V industrial control panel with multiple DC loads?
Yes, this model is a 12V constant voltage power supply rated for 500.4W and 41.7A. That makes it suitable for centralized 12V industrial or automation panels where the combined load stays within 41.7A and 500.4W.
Is this power supply a fit for 12V machine vision lighting or inspection equipment?
It can be a fit for 12V machine vision lighting or inspection systems that require a stable 12V constant voltage source. The available output is 41.7A with 500.4W total capacity, which is useful when several 12V loads are powered from one supply.
Can this model power a 12V embedded or IT system that needs high current and status monitoring?
Yes, it is suited to 12V embedded or IT equipment that needs a constant voltage supply and higher current headroom. This version provides 12V at up to 41.7A and includes built-in DC OK and redundant function features.
Is the UHP-500R-12 suitable for outdoor or harsh-temperature installations?
The operating temperature range is -30°C to +70°C, so the temperature spec covers a wide span. However, no IP rating is listed in the provided specs, so these specs do not establish suitability for exposed outdoor or washdown environments.
How does the UHP-500R-12 compare with the other UHP-500R redundant models?
Within the UHP-500R redundant group, the listed models are 4.2V 336W 80A, 5V 400W 80A, 12V 500.4W 41.7A, 15V 501W 33.4A, 24V 501.6W 20.9A, 36V 500.4W 13.9A, and 48V 501.6W 10.45A. The UHP-500R-12 sits in the middle of that range with 12V output and 500.4W capacity.
Other UHP-500R Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well UHP-500R-5 Power Supply 400W 5V - Redundant | 400W | 5V | 80A | View |
| Mean Well UHP-500R-48 Power Supply 501W 48V - Redundant | 501.6W | 48V | 10.45A | View |
| Mean Well UHP-500R-4.2 Power Supply 336W 4.2V - Redundant | 336W | 4.2V | 80A | View |
| Mean Well UHP-500R-36 Power Supply 500.4W 36V - Redundant | 500.4W | 36V | 13.9A | View |
| Mean Well UHP-500R-24 Power Supply 501.6W 24V - Redundant | 501.6W | 24V | 20.9A | View |
| Mean Well UHP-500R-15 Power Supply 501W 15V - Redundant | 501W | 15V | 33.4A | View |
