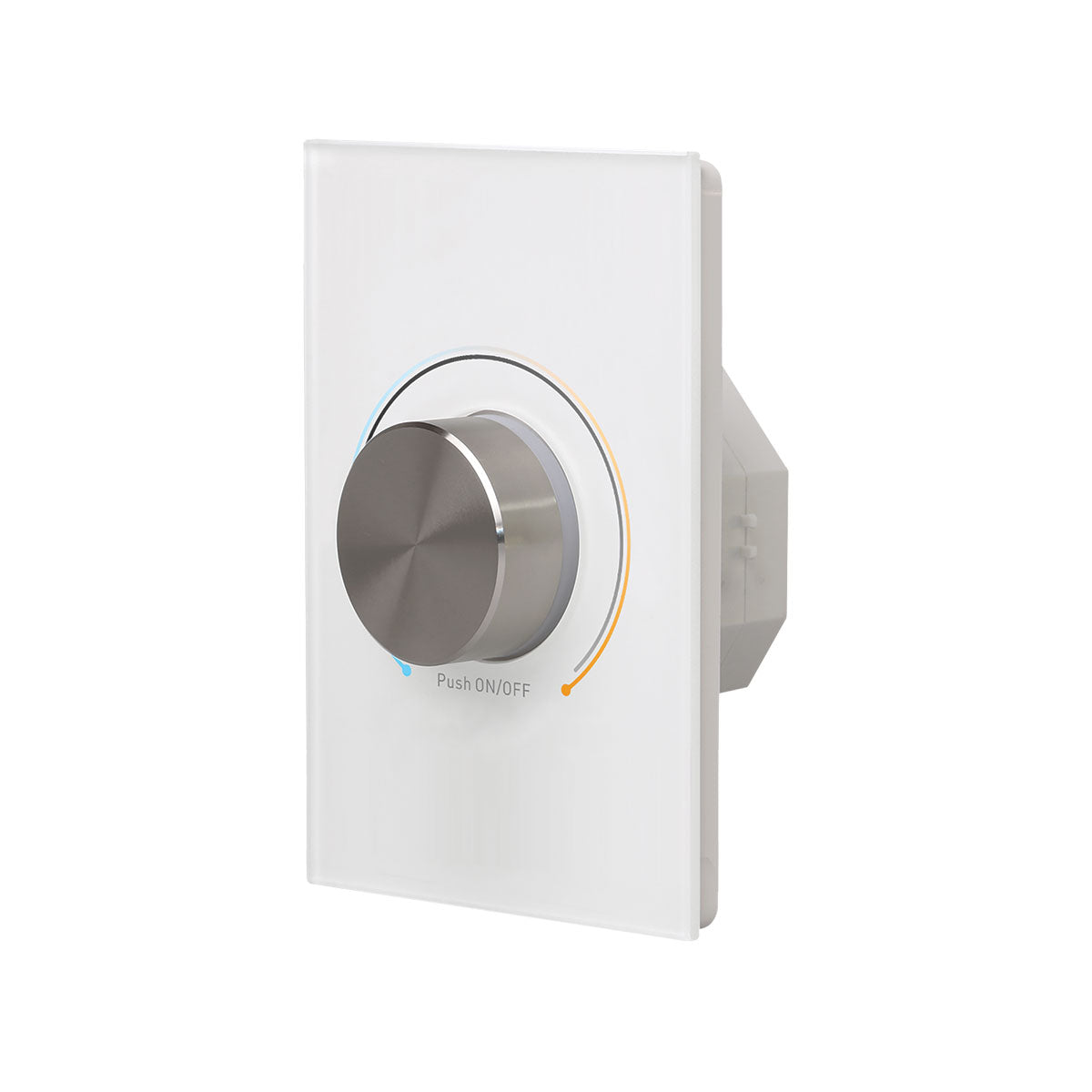

DALI Wall Plate Dimmer
Please Login for Pricing
Description
Description
Features:
- Simple on/off switching and dimming control for DALI light fixtures
- Configurable minimum brightness setting
- Colour temperature control (requires DGDALIDM8 model and DALI Type 8 LED drivers)
- Up to four DALI Wall Plate Dimmers can be connected in parallel on a DALI Line for multi‐point control
- Built in 125mA DALI power supply (mains connection required)
- Able to control up to 50 DALI drivers on a single DALI line
- Only mains connection (active and neutral) and DALI connection (DA/DA) required
- Can be powered by external DALI power supply connected to DALI line (no mains connection required)
- No external DALI power supply or other equipment is required
- No programming of the device or DALI drivers is required
- Warranty: 2 year
General Specification
VOLTAGE RANGE
125mA DALI power supply
Dimension (LxWxH)
75*31.2*120mm
Specifications
Specifications
-
BrandWellforces
-
Rated Current0.12 Ampere
-
Operation ModeConstant Voltage
-
Operating Temperature-15°C~50°C
-
Warranty2 Year
-
Length7.5 cm
-
Width3.12 cm
-
Height12 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the DALI Wall Plate Dimmer do?
The DALI Wall Plate Dimmer provides simple on/off switching and dimming control for DALI light fixtures. It is designed as a standalone wall plate controller for a DALI line and can control up to 50 DALI drivers on a single line.
Is this dimmer suitable for multi-point lighting control?
Yes. Up to four DALI Wall Plate Dimmers can be used in parallel on one DALI line for multi-point control. That makes it a practical option for commercial spaces where dimming needs to be available from more than one location.
Does this model require extra DALI control equipment?
This model includes a built-in 125 mA DALI power supply, so no separate DALI power supply or other additional equipment is required for typical use. It can also operate from an external DALI power supply on the line, depending on the system design.
Can this dimmer control colour temperature as well as brightness?
Colour temperature control is available only with the DGDALIDM8 version and requires DALI Type 8 LED drivers. Standard versions of the DALI Wall Plate Dimmer are intended for on/off switching and dimming control.
What are the key specifications of the DALI Wall Plate Dimmer?
This model has a built-in 125 mA DALI power supply and measures 75 x 31.2 x 120 mm. It also includes a configurable minimum brightness setting and is backed by a 2-year warranty.
What operating temperatures is this dimmer rated for?
The DALI Wall Plate Dimmer is rated for ambient temperatures from -15°C to 50°C. That range makes it suitable for many indoor commercial and professional lighting environments within standard operating conditions.
