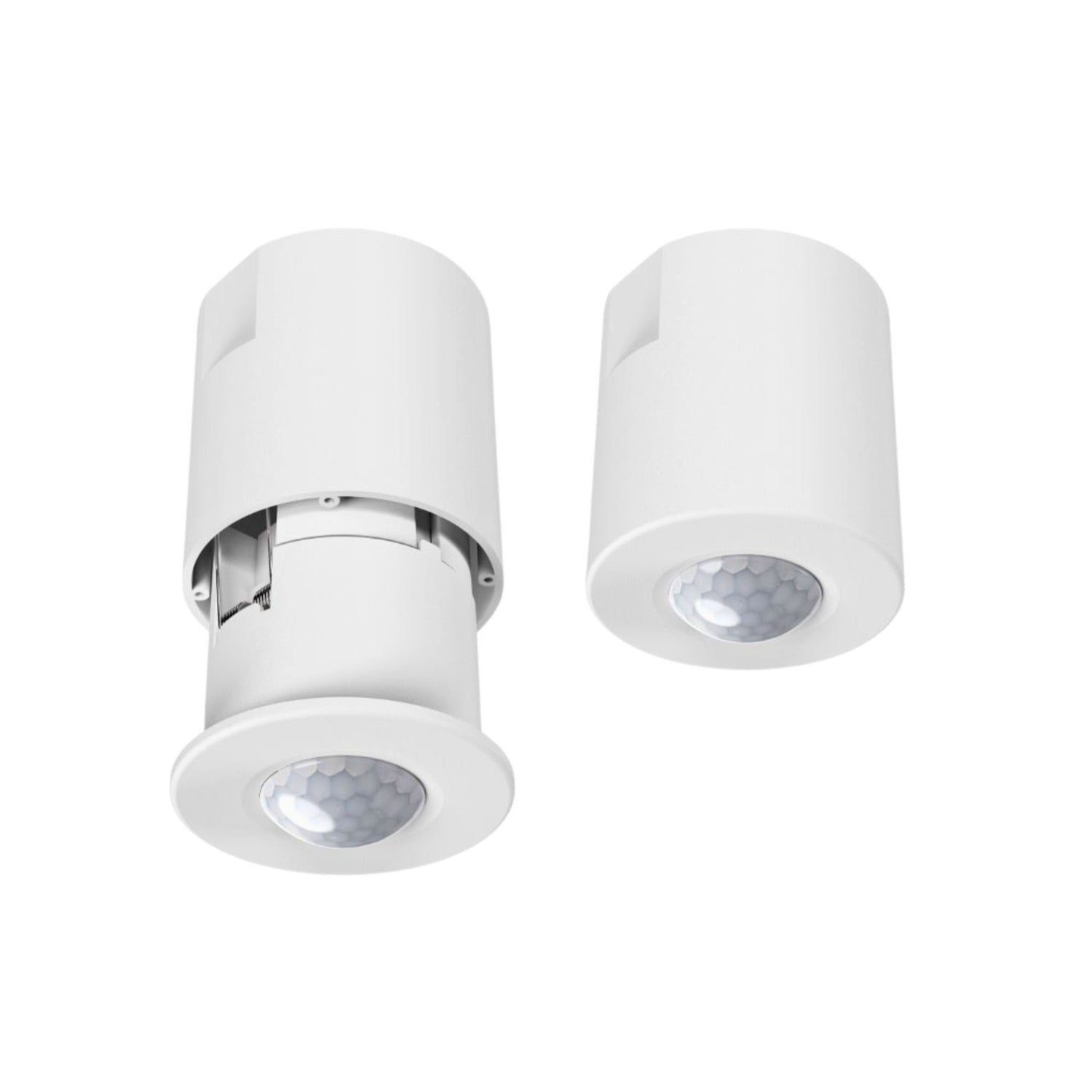

Versaan Unity S1 Casambi All-in-One PIR Sensor White

DALI, relay, push button control, IP65, can be installed recessed or surface, cutout 62-66mm

SKU:

VS-S1-LBW

Notify me when it's back in stock

Description

The Unity S1 is a powerful all-in-one lighting controller and sensor, engineered to combine Casambi wireless control with high-performance DALI, Relay, and PIR capabilities. Designed for commercial environments, it integrates motion and ambient light detection with a 10A relay output and a 50mA DALI bus, allowing seamless control of modern and legacy lighting systems. With IP65-rated protection and flexible mounting options, the Unity S1 is built to withstand demanding conditions both indoors and outdoors—delivering advanced lighting automation from a single, compact device.

Key Features

All-in-one sensor/controller with DALI, relay, and Casambi wireless integration
PIR motion detection up to 13m range at 2.7m mounting height
Ambient light sensor with 1–999 Lux detection range
DALI output: 50mA/16.5VDC, supports up to 25 drivers
10A relay output (resistive, inductive, capacitive) with 250A inrush handling
1x momentary push-button input for manual control

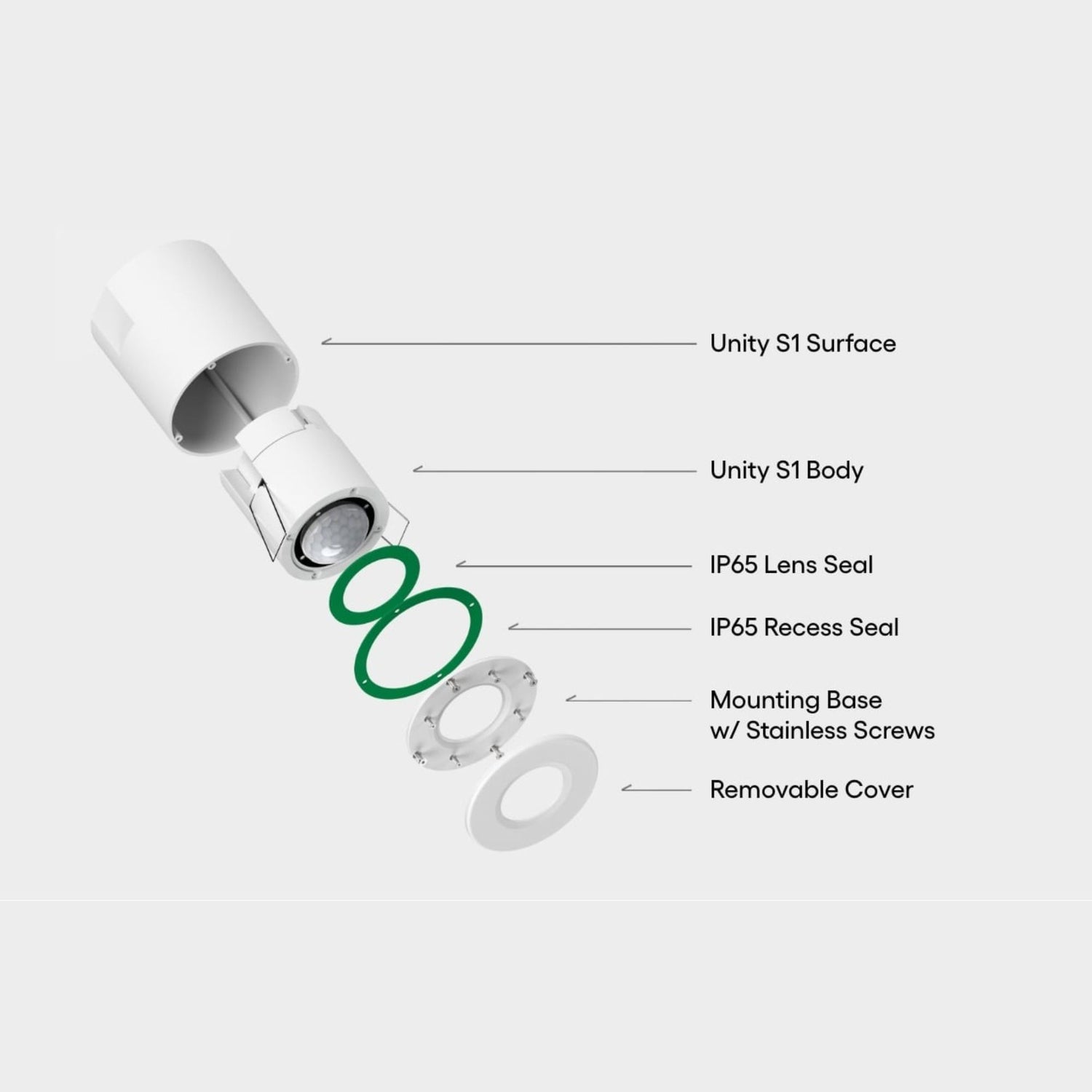

IP65 rated for recessed or surface mounting (front or full protection)

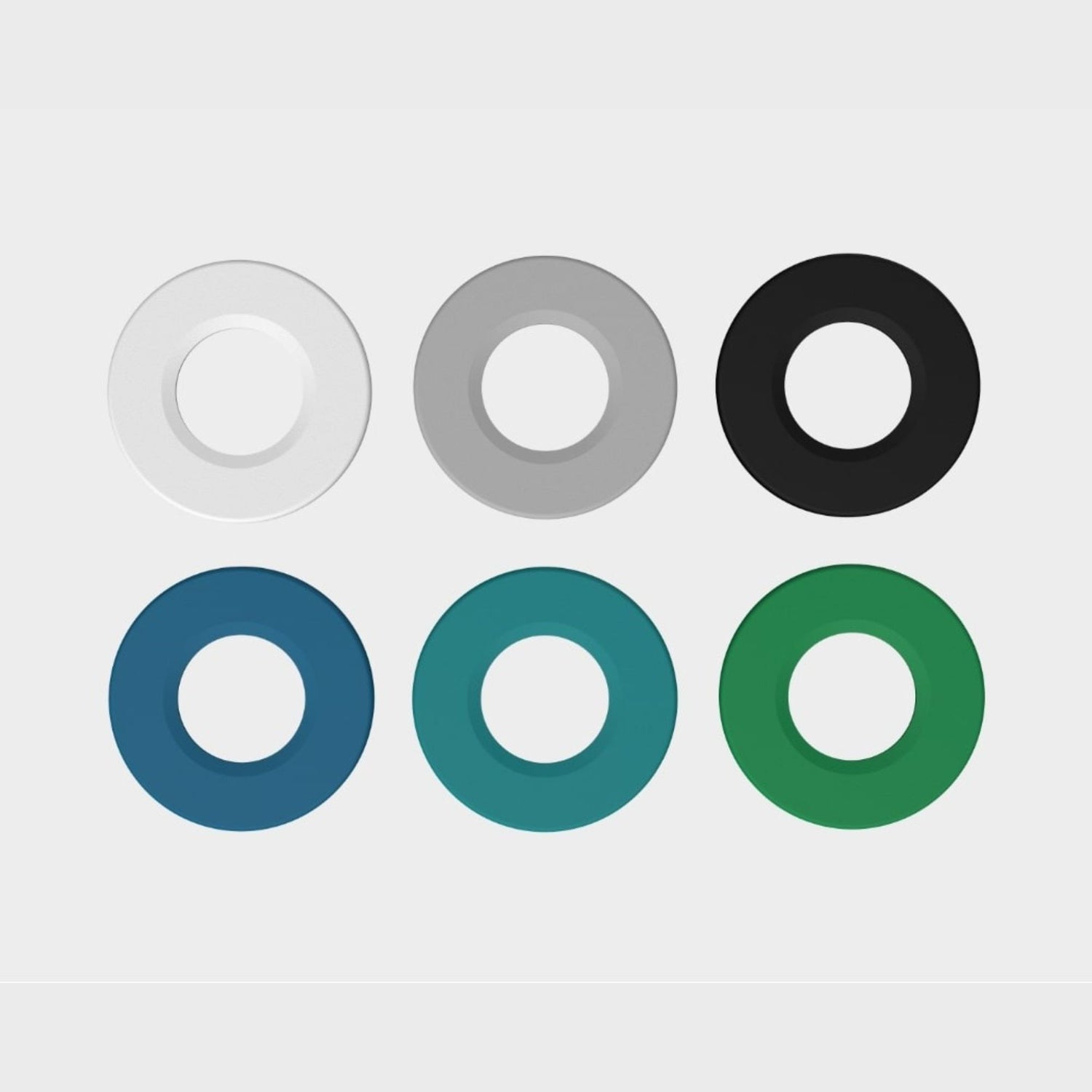

Paintable clip-on cover for discreet architectural integration
Loop-in/loop-out wiring, 2.5mm² terminal capacity
Flame-retardant ABS+PC construction
Operating temperature: -10°C to 55°C
Cutout size: 62–66mm, 5-year warranty

Specifications

Brand

Versaan
Series

Versaan Casambi
Standards Met

CE,RCM
Operating Temperature

-10°C~55°C
Warranty

5 Year
Length

7.3 cm
Width

7.3 cm
Height

7.32 cm
Weight

0.4 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Versaan Unity S1 Casambi All-in-One PIR Sensor used for?

The Versaan Unity S1 is designed for commercial lighting control where wireless Casambi control, PIR motion detection, ambient light sensing, DALI control, and relay capability are needed in one unit. It is suited to projects that need sensor-based lighting automation across modern or legacy lighting systems.

Does the Unity S1 work with Casambi lighting control systems?

Yes. This model uses Casambi dimming control, making it suitable for Casambi wireless lighting control projects. It is intended for use where Casambi-based control is part of the lighting system design.

What control outputs does the Unity S1 provide?

The Unity S1 includes a 10A relay output and a 50mA DALI bus. These features allow it to support both relay-based control and DALI lighting control within the product capabilities stated for this model.

Can the Unity S1 detect both movement and ambient light?

Yes. The Unity S1 integrates PIR motion detection and ambient light detection. This makes it useful for commercial spaces where lighting may need to respond to occupancy and available daylight.

Is the Unity S1 suitable for demanding indoor or outdoor conditions?

The Unity S1 has an IP65-rated enclosure, which indicates protection against dust and water ingress. It is described as suitable for demanding conditions both indoors and outdoors, within its stated operating temperature range.

What temperature range can the Unity S1 operate in?

This model is rated for operation from -10 °C to 55 °C. That range supports use in many commercial environments where temperature conditions may vary.

What warranty and lifetime are specified for the Unity S1?

The Unity S1 has a specified lifetime of 50,000 hours. It also comes with a 5-year warranty period for this model.

Why choose the Unity S1 instead of separate lighting control and sensor devices?

The Unity S1 combines Casambi wireless control, PIR sensing, ambient light detection, DALI capability, and relay control in a single product. For suitable commercial projects, this can reduce the need to specify separate control and sensing components.

Model	IP Rating	Dimming	Lifetime
Versaan Integral R1 Casambi Relay - 10A, 250A Inrush	Indoor	Casambi,Push Dimming	—	View
Versaan Integral T1 Casambi to Triac Converter - 300W	Indoor	AC Phase Cut Dimming,Casambi,Push Dimming	—	View
Versaan Integral P1 Casambi to PWM Converter - 4 Channel 300W	Indoor	PWM	—	View
Versaan Integral D1 Casambi to DALI Converter - 50mA	Indoor	Casambi,DALI,DALI2,Push Dimming	—	View
Versaan Integral C1 Casambi Push Coupler 5 Channel	Indoor	Casambi,Push Dimming	—	View
