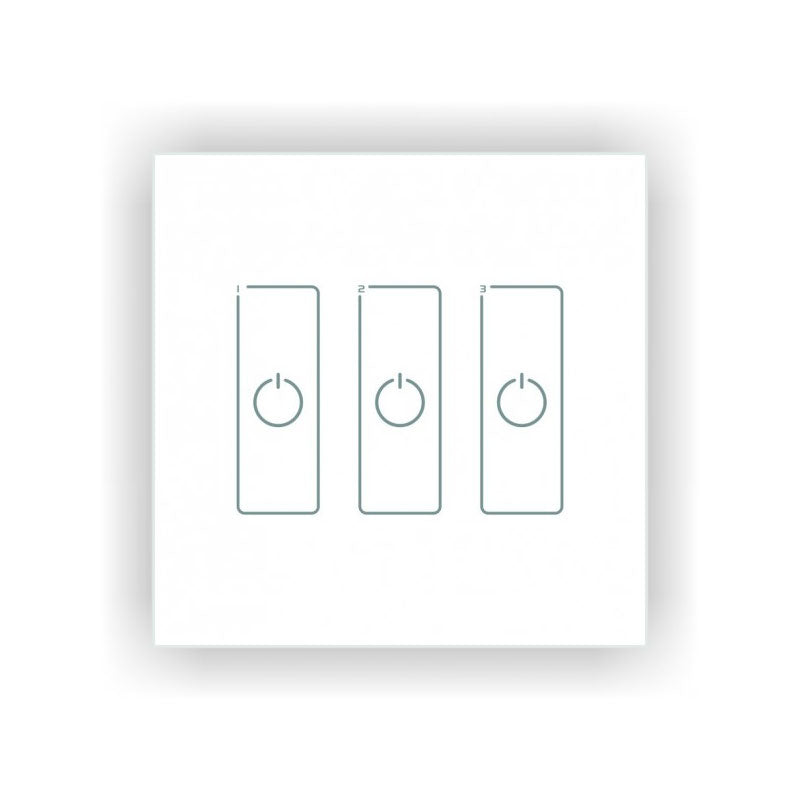

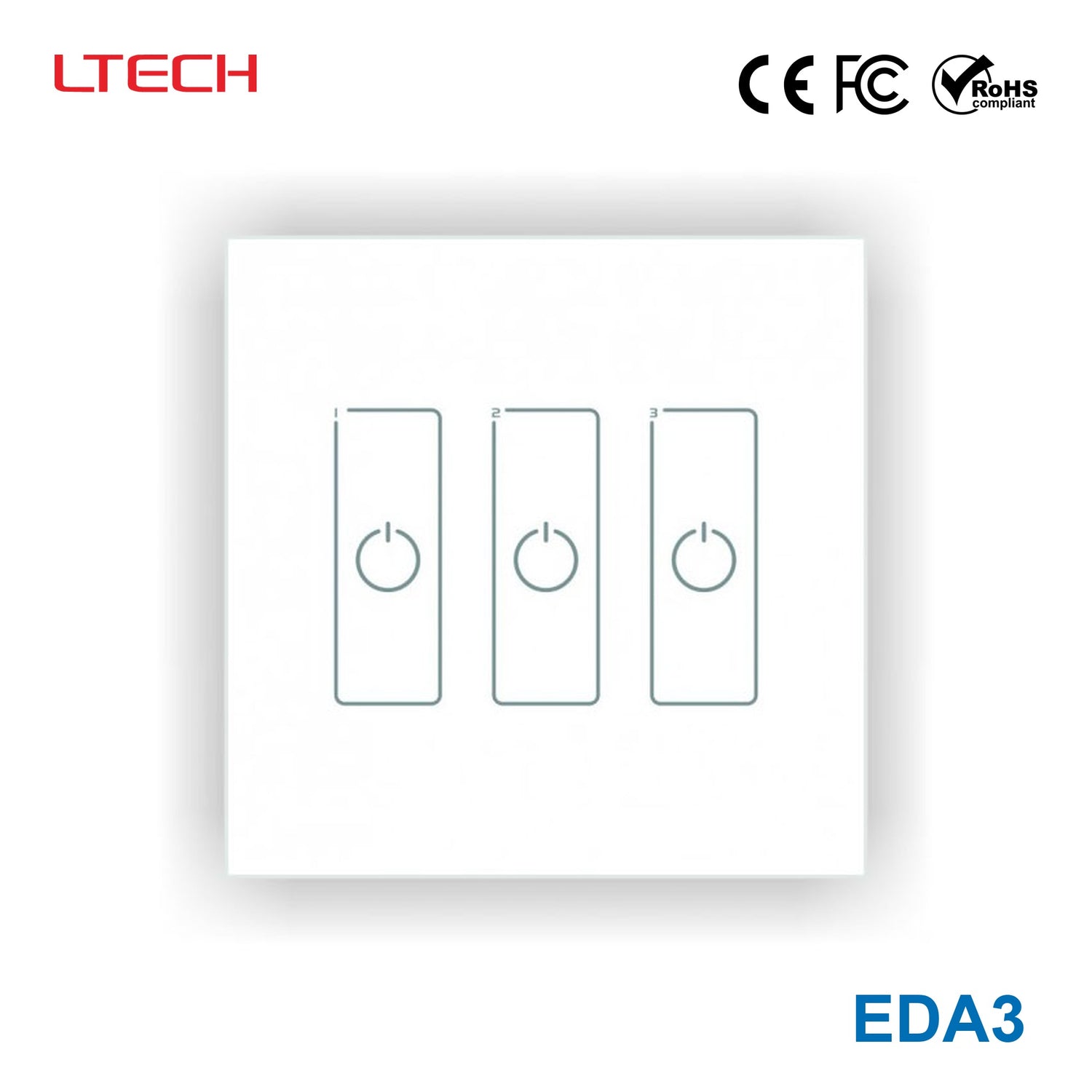

Ltech EDA3 3 Switch Touch Panel - DALI Master Dimmer
Please Login for Pricing
Description
Description
- Latest DALI standard protocol IEC62386.
- Support switch and dimming function.
- DALI bus supply power.
- The DIP switch can set address.
- Support scene, group, unicast, broadcast mode.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Input Voltage16V~16V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length8.6 cm
-
Width8.6 cm
-
Height3.7 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech EDA3 do on a DALI lighting system?
The Ltech EDA3 is a 3-switch touch panel that serves as a DALI master dimmer. It supports switch and dimming functions for DALI-based lighting control and is designed for use with the IEC62386 DALI standard.
Which DALI control modes does the EDA3 support?
This model supports scene, group, unicast, and broadcast mode. That gives commercial buyers flexibility when selecting how individual fixtures or lighting groups are controlled within a DALI environment.
Is the Ltech EDA3 compatible with standard DALI systems?
Yes, the EDA3 supports the latest DALI standard protocol IEC62386. That makes it appropriate for projects that require a control device aligned with standard DALI communication.
How is addressing handled on the Ltech EDA3?
The EDA3 uses a DIP switch to set the address. This provides a straightforward way to assign the device within a DALI control scheme without relying on a software-only addressing method.
Can the EDA3 provide power on the DALI bus?
Yes, the product description states that it includes DALI bus supply power. For buyers evaluating control components, that is a relevant feature when selecting a DALI master dimmer for a compatible system design.
What environments is the Ltech EDA3 rated for?
The specified operating temperature range is -30 degrees C to 55 degrees C. That range supports use in a variety of indoor project conditions where the control hardware must tolerate both low and elevated ambient temperatures.
What warranty coverage comes with the Ltech EDA3?
The listed warranty period for this model is 5 years. That can be useful for commercial purchasers comparing lifecycle support across DALI control components.
