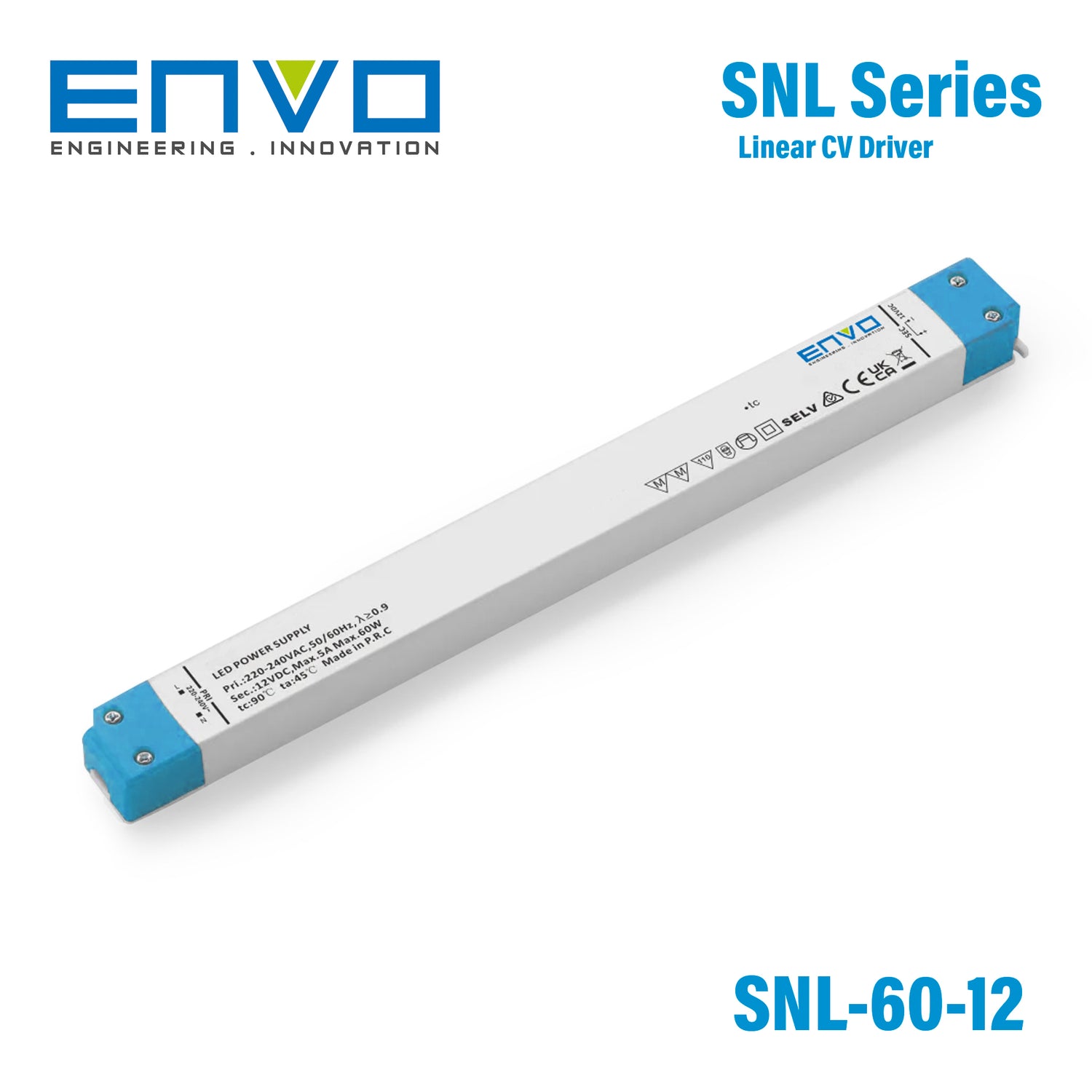

Envo EV-SNL-60-12 Linear Type LED Driver 60W 12V 5A
Log in to see priceOverview
EV-SNL-60-12 is the 12V output model of this series: rated current 0-5A, rated power 60W.
EV SNL60-12/24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 88%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumptionwith all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.
Features
- AC input 198-264VAC)
- Built-in active PFC function
- Compliance to worldwide safety regulations for lighting
- Suitable for dry indoor environment
- Protections: Short circuit / Over voltage / Over temperature
- Adopt plastic case and internal glue filling
- Compliance to worldwide safety
Specifications
Output
- DC Voltage
- 12V
- Voltage Tolerance
- ±5%
- Rated current
- 0-5A
- Rated power
- 60W
Input
- Voltage Range
- AC 198V - 264V
- Frequency Range
- 50-60HZ
- Power Factor
- 0.95@230Vac, full load
- Full Load Efficiency (Typ.)
- 86%
- AC Current (Max.)
- 0.5A/230V
- Leakage current
- 0.75mA@240Vac 60HZ
Protection
- Short Circuit
- hiccup mode, restart automatically after fault correction.
- Over load
- hiccup mode, restart automatically after fault correction.
- Over Temperature
- Latch Off
Environment
- Working TEMP.
- -20 - 45°C
- Working Humidity
- 10%RH - 90%RH
- Storage TEM.,Humidity
- -40°C-85°C; 10%RH-90%RH
- TEMP.coefficient
- ±0.03%/°C (0 ~ 60°C)
Safety&EMC
- Safety standards
- EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
- Withstand voltage
- Input-Output 3750V/5mA/1min
- Isolation resistance
- >5M Ohm/500VDC/25°C/70%RH
- EMC EMISSION
- Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
- EMC immunity
- Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11
Others
- Weight
- 0.2KG
- Size
- 304.8*30*16.7mm (L*W*H)
- Packing
- 50PCS
Notes
- Warranty
- 5 years
Technical drawings
Downloads
Datasheet1
FAQ
What type of applications is the Envo EV-SNL-60-12 best suited for?
This model is a 12V constant-voltage LED driver designed for LED lighting applications that need a 12V power source. Its linear form factor makes it a practical option for commercial and trade projects where a compact LED driver is needed for signage, strip lighting, or similar low-voltage lighting systems.
What are the main electrical specifications of the EV-SNL-60-12?
The Envo EV-SNL-60-12 is rated at 60W output with a 12V output voltage. It accepts an AC input range of 198-264VAC and includes active power factor correction (PFC), which is useful for professional lighting applications.
Does this LED driver support dimming?
No, this specific model is listed with no dimming control. It is intended for applications where a fixed 12V output is required rather than integrated dimming functionality.
Can the EV-SNL-60-12 be used in demanding operating environments?
This model is rated for operation from -20°C to 45°C, which suits many indoor and protected commercial lighting environments. It also uses a plastic case with internal glue filling and includes short circuit, over load, and over temperature protection features.
What makes this model different from dimmable or higher-voltage LED drivers?
The EV-SNL-60-12 is a non-dimming, 12V constant-voltage driver, so it is best matched to lighting products that specifically require 12V input. Compared with dimmable models or drivers with other output voltages, this unit is the better fit when the requirement is a straightforward 12V, 60W power solution.
Is the EV-SNL-60-12 a good fit for long-term commercial use?
This model includes compliance to worldwide lighting safety regulations and comes with a 5-year warranty, which supports commercial purchasing requirements. Those details make it a stronger option for buyers looking for a dependable LED driver for ongoing project use.
