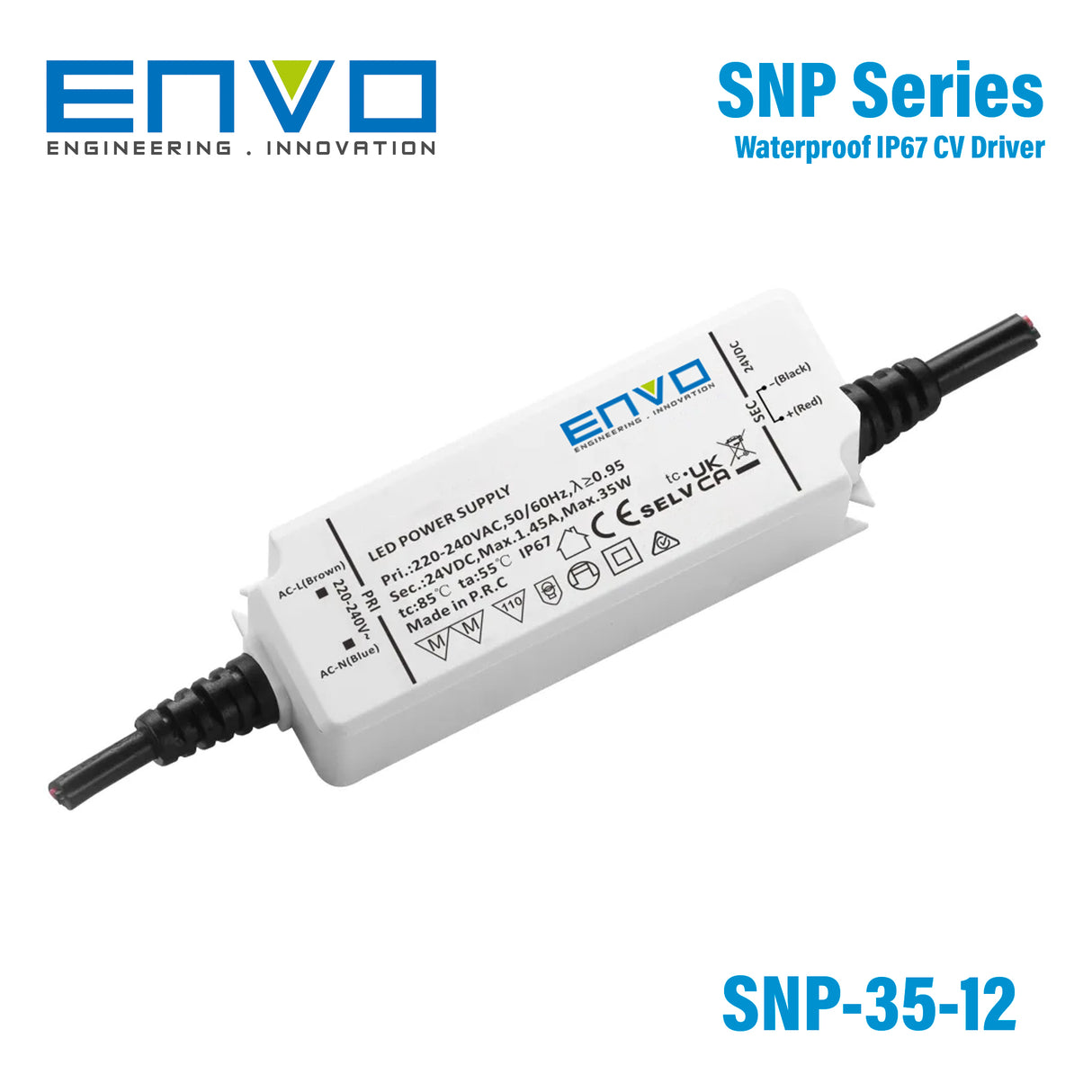

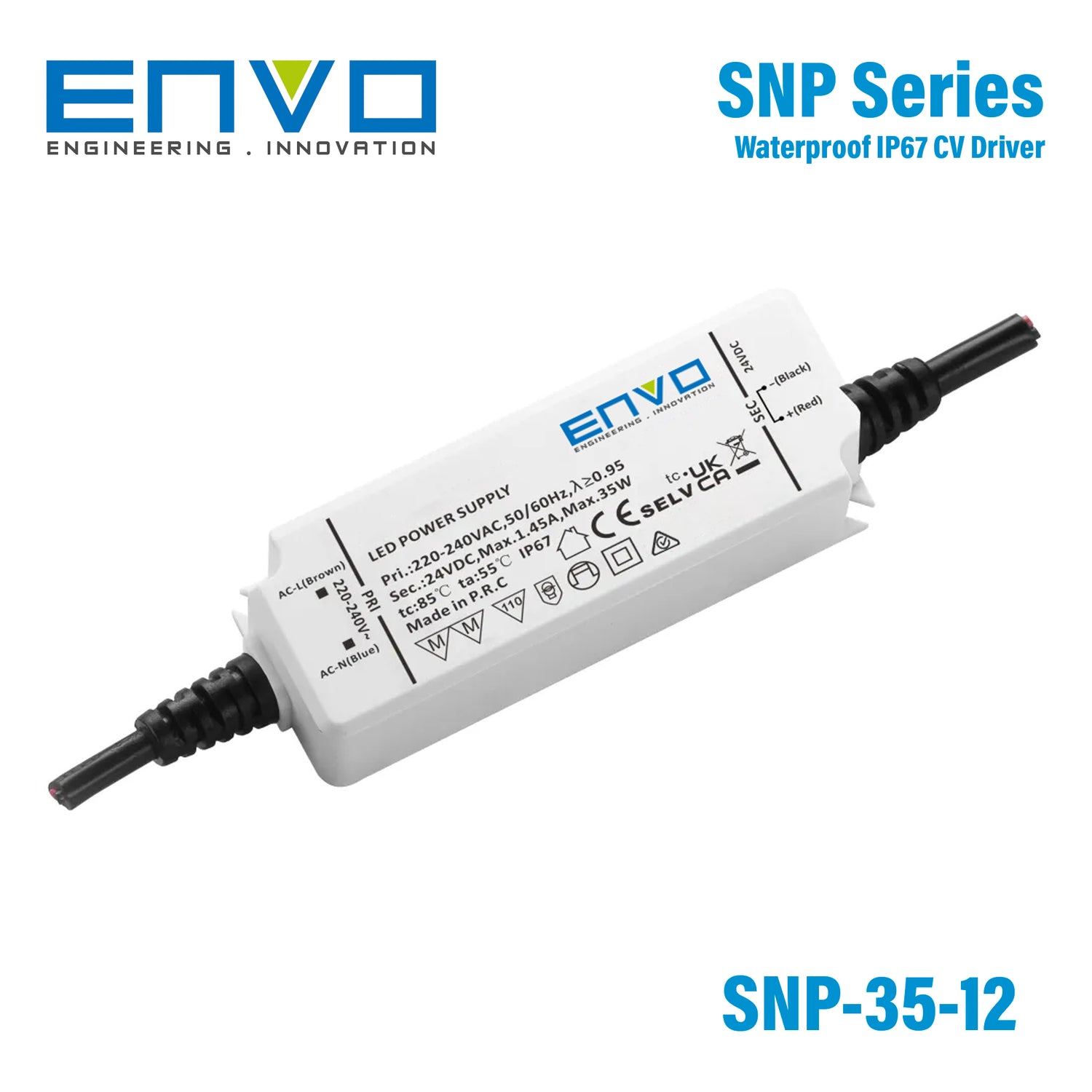

Envo EV-SNP-35-12 LED Driver 35W 12V Waterproof IP67 2.9A

waterproof IP67
SKU EV-SNP-35-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNP-35-12
In stock
|

Overview

EV-SNP-35-12 is the 12V output model of this series: rated current 0-2.9A, rated power 35W.

EV-SNP-35-12/24 is a constant voltage IP67 LED driver with an input voltage range of 220- 240Vac and a conversion efficiency up to 86%.It works in the temperature range of - 20 ° C~+45 ° C natural cooling radiator housing, and has ultra-high power factor, ultra-low Total harmonic distortion, low standby power consumption, and all round protection functions, which not only greatly improves the reliability of the product, but also ensures the product lifecycle. Comply with global lighting safety regulations, ensuring the safety of both users and lighting systems during installation

Features

  • AC input 220-240VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Using plastic shell. internal potting.
  • Compliance to worldwide safety

Specifications

EV-SNP-35-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-2.9A
Rated power
35W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.95
Full Load Efficiency (Typ.)
86%
AC Current (Max.)
0.18A/230V
Leakage current
0.7mA 230Vac/60HZ

Protection

Short Circuit
hiccup mode, restart automatically after fault correction
Over load
exceed maximum rated load times 1.2

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 95%RH
Storage TEM.,Humidity
-40°C-80°C; 10%RH-95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.28KG
Size
110*40*29.5mm (L*W*H)
Packing
25PCS
Warranty
5 years

Technical drawings

EV-SNP-35-12 Mechanical Specification
Mechanical Specification
EV-SNP-35-12 Mechanical Drawing
Mechanical Drawing
EV-SNP-35-12 Derating Curve
Derating Curve

Downloads

FAQ

What is the Envo EV-SNP-35-12 designed for?

The Envo EV-SNP-35-12 is a constant-voltage LED driver intended for 12V lighting applications. Its 35W power rating makes it suitable for lower-power LED systems that need a compact waterproof power supply.

Is this LED driver waterproof enough for demanding environments?

Yes. This model is rated IP67, which means it is built for use in environments where strong dust protection and water resistance are important. The plastic housing and internal potting also support durability in exposed lighting applications.

Does the EV-SNP-35-12 support dimming?

No. The listed dimming control for this model is none, so it is intended for applications that do not require built-in dimming functionality. Buyers needing dimming should compare it with a driver specifically rated for that feature.

What are the main electrical specs of this model?

This LED driver provides a 12V output and is rated at 35W. It accepts a 220-240VAC input and includes active PFC, making it suitable for lighting projects that require a regulated constant-voltage supply.

What protection features are included in the Envo EV-SNP-35-12?

This model includes short circuit, over voltage, over temperature, and over load protection. Those built-in safeguards help protect the driver in demanding operating conditions and support long-term reliability.

What operating temperatures is this driver rated for?

The EV-SNP-35-12 is rated for operation from -20°C to 45°C. That makes it a practical choice for many indoor or sheltered outdoor lighting environments within that temperature range.

Is this model a good fit if I need long warranty coverage?

Yes. The listed warranty period for the Envo EV-SNP-35-12 is 5 years, which is a strong indicator for buyers looking for longer coverage on commercial or project-based lighting purchases. This can be especially useful when comparing drivers for maintenance-sensitive applications.
