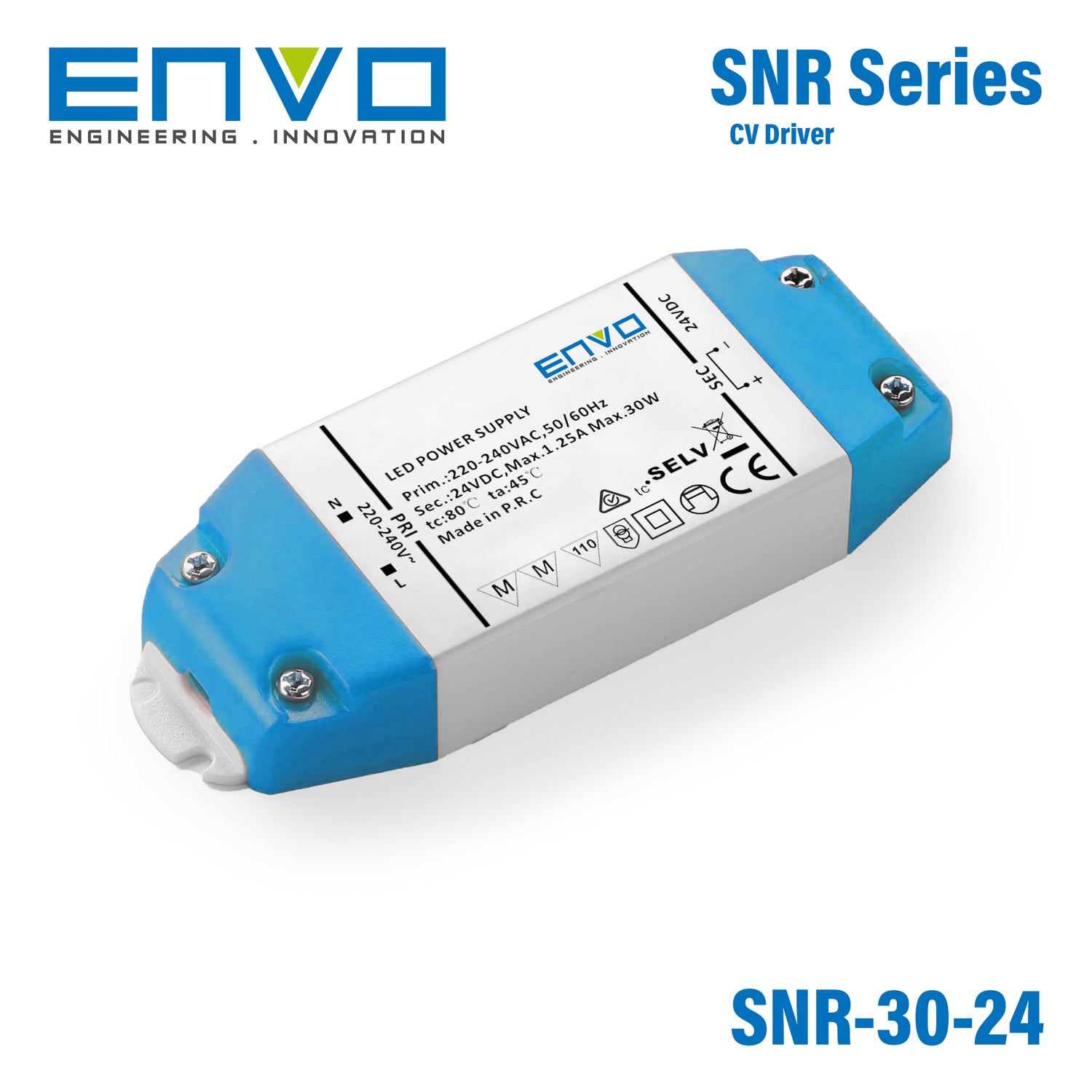

Envo EV-SNR-30-24 LED Driver 30W 24V 1.25A

screw ternimal, compact size, economical

SKU:

EV-SNR-30-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Output constant voltage
Range AC input: 200-240VAC
Buili-in active PFC function
Efficiency :up to 89%
Protections: short circuit/over loading/ over temperature.
Screw terminals for easy installation
Cooling by free air convection
Suitable for LED lighting and moving sign applications

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

220V~240V
Standards Met

CE,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

12.3 cm
Width

4.46 cm
Height

1.92 cm
Weight

0.11 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main electrical specifications of the Envo EV-SNR-30-24?

The Envo EV-SNR-30-24 is a 30W constant-voltage LED driver with a 24V DC output. It is rated for 1.25A output current and accepts a 200-240VAC input range.

What types of applications is the EV-SNR-30-24 designed for?

This model is intended for LED lighting and moving sign applications that require a 24V constant-voltage power supply. It is best suited to systems that match its 30W power rating and 24V output requirement.

Does the Envo EV-SNR-30-24 support dimming control?

No, this model does not include dimming control. It is designed as a non-dimming 24V constant-voltage LED driver.

What protection features are included in the EV-SNR-30-24?

The EV-SNR-30-24 includes protection for short circuit, overloading, and over temperature conditions. These built-in protections help support reliability in suitable operating conditions.

What operating temperature range is specified for this LED driver?

This model is rated for ambient temperatures from -20°C to 45°C. That makes it suitable for environments that stay within that stated operating range.

How efficient is the Envo EV-SNR-30-24, and does it include power factor correction?

The EV-SNR-30-24 is specified with efficiency up to 89%. It also includes an active PFC function, which is a useful feature for commercial and professional LED power applications.

What warranty is offered with the EV-SNR-30-24?

This LED driver is specified with a 5-year warranty period. That gives buyers longer-term coverage compared with many lower-grade power supply options.

Model	Power	Voltage	Current	IP Rating
Envo EV-SNR-60-24 LED Driver 60W 24V 3.125A	60W	24V	3.12A	Indoor	View
Envo EV-SNR-75-24 LED Driver 75W 24V 3.12A	75W	24V	3.12A	Indoor	View
Envo EV-SNR-60-12 LED Driver 60W 12V 6.25A	60W	12V	6.25A	Indoor	View
Envo EV-SNR-30-12 LED Driver 30W 12V 2.5A	30W	12V	2.5A	Indoor	View
Envo EV-SNR-75-12 LED Driver 75W 12V 6.25A	75W	12V	6.25A	Indoor	View
