Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

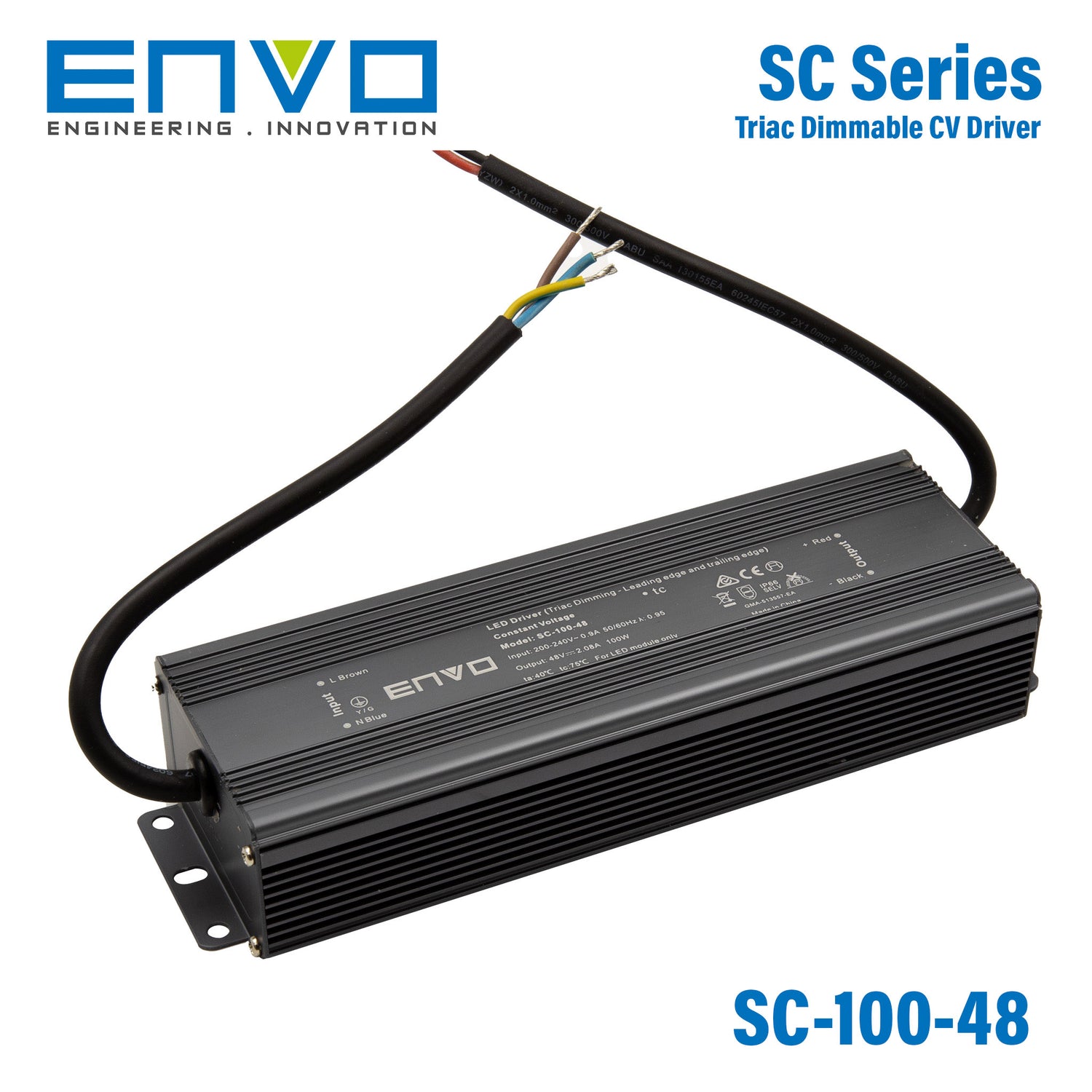

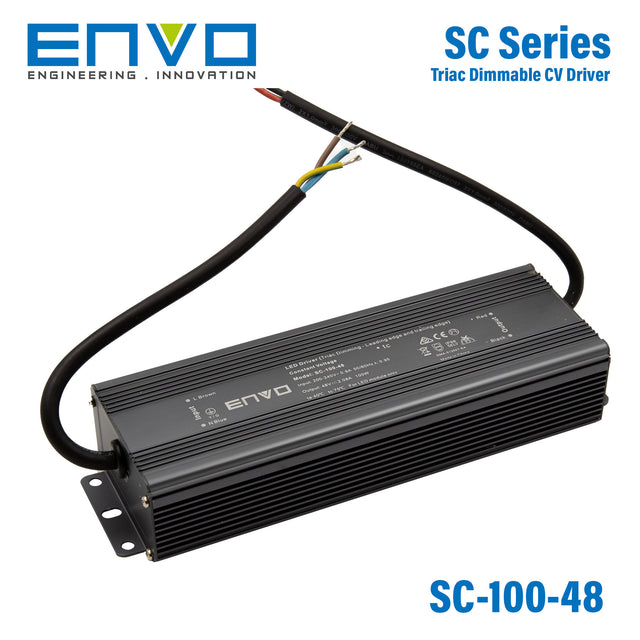

Envo SC-100-48 Power Supply 100W 48V - Triac dimmable 2.08A

triac dimmable

SKU SC-100-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

SC-100-48

SC-60-48 60W 48V Low stock

SC-100-48 100W 48V Low stock

SC-200-48 200W 48V Low stock

Product variants

In stock

Overview

SC-100-48 is the 48V output model of this series: rated current 2.08A, rated power 100W, typical efficiency 85%@230VAC.

Features

Output: Constant Voltage
Range: 200-240VAC
PFC design: Built-in active PFC function
Efficiency: Up to 85%
Protections: Short circuit/ over load/ over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: IP66
Dimming function: Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers.
Dimming range: 0-100%
Warranty: 5 years warranty

Specifications

SC-100-48Specifications from the official datasheetDownload datasheet PDF

Certificate

Certificate: TUV / SAA / CCC / CE / CB / RoHS / Reach

Output

DC Voltage: 48V
Voltage Tolerance: ±0.5V
Voltage Regulation: ±0.5%
Rated Current: 2.08A
Rated Power: 100W
Load Regulation: ≤1%

Input

Voltage Range: 200-240VAC
Frequency Range: 47 - 63Hz
THD(Typ.)@ Full Load: ≤20% @ 200VAC, 230VAC, 240VAC
Efficiency(Typ.)@ Full Load: 85% @ 230VAC
AC Current (Max.): 0.8A
Inrush Current(Typ.): 56A, 280us @ 230VAC
Leakage Current: <0.5mA

Protection

Short Circuit: Hiccup mode, re-power on to recover after fault condition removed
Over Load: ≤120% Hiccup mode, recovers automatically after fault condition is removed
Over Temperature: Shell surface temp. 100°C±10°C shut down o/p voltage, automatically recover after the temperature drops

Environment

Working TEMP.: -40~+60°C (see below derating curve)
Working Humidity: 20 - 95% RH non-condensing
Storage TEM.,Humidity: -40 - +80°C, 10 - 95% RH non-condensing
TEMP.coefficient: ±0.03%/°C (0 - 50°C)
Vibration: 10~500Hz, 5G 12min/1 cycle, period for 72min. each along X,Y,Z axes

Safety&EMC

Safety standards: EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage: I/P-O/P: 3.75KVAC (EU), I/P-FG: 1.5KVAC (EU), I/P-FG: 0.5KVAC (EU)
Isolation resistance: I/P-O/P: 100MΩ / 500VDC / 25°C / 70%RH
EMC Emission: Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017

Others

Net Weight: 1.05kg
Dimension: 230*70*43mm (L*W*H)
Packing: 340*270*175mm, 10pcs/CTN

Test conditions and notes2

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Tolerance: includes set up tolerance and load regulation.

Technical drawings

SC-100-48 Efficiency Curve (Efficiency vs Output load) — Efficiency Curve (Efficiency vs Output load)

SC-100-48 Derating Curve (Output load vs TEMP.) — Derating Curve (Output load vs TEMP.)

SC-100-48 Power Factor Curve — Power Factor Curve

SC-100-48 Mechanical Specification — Mechanical Specification

SC-100-48 TRIAC/Phase cut dimming — TRIAC/Phase cut dimming

SC-100-48 TRIAC/Phase cut dimming (2) — TRIAC/Phase cut dimming (2)

Typical applications

Suitable for the application of LED lighting

Downloads

Datasheet1

SC-100-48 datasheetEnvo_SC_100W.pdf PDF Download

FAQ

What type of LED application is the Envo SC-100-48 designed for?

The Envo SC-100-48 is a constant-voltage 48V power supply intended for LED lighting and moving sign applications. Its 100W output makes it suitable for commercial and trade projects that require a 48V constant-voltage driver.

Is the Envo SC-100-48 dimmable?

Yes, this model is Triac dimmable using AC phase-cut control. It is designed to work with both leading-edge and trailing-edge Triac dimmers, with strong compatibility and flicker-free dimming called out in the product description.

What are the main electrical specifications of the SC-100-48?

This model is rated for 100W output at 48V with a rated current of 2.08A. The stated AC input range is 200-240V AC, and efficiency is listed as up to 85%.

Can the Envo SC-100-48 be used outdoors?

Yes, the unit has an IP66-rated design for outdoor installation. It also uses a full aluminum housing, which supports durability in demanding environments.

What operating temperature range does this power supply support?

The Envo SC-100-48 is rated to operate from -40°C to 60°C. That wide temperature range makes it suitable for both cold and hot installation environments where commercial LED equipment may be exposed to varying conditions.

What protection features are included in the SC-100-48?

This model includes protection for short circuit, over load, and over temperature conditions. These built-in protections help support reliability for LED lighting and moving sign applications.

What warranty is offered with the Envo SC-100-48?

The listed warranty period for this model is 5 years. For trade buyers, that can be an important factor when evaluating long-term use in commercial LED applications.
