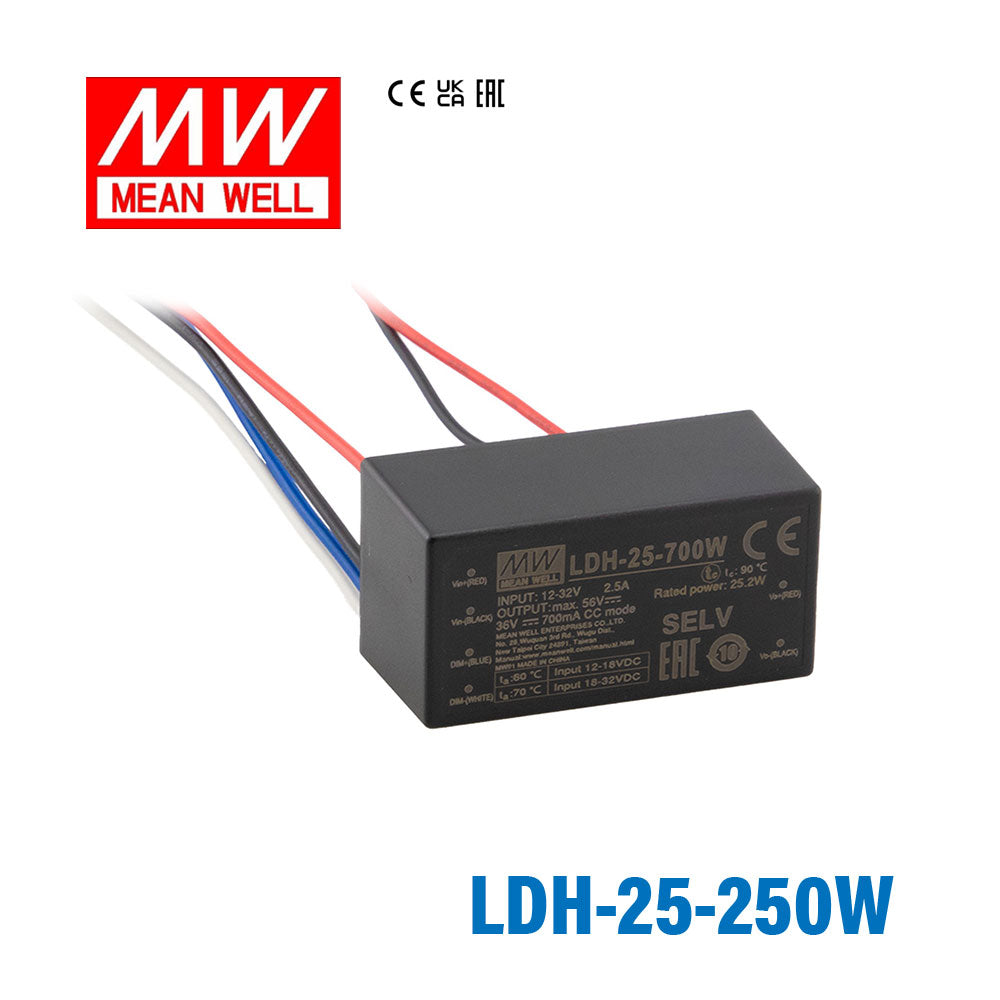

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

LDH-25-250W

constant current, step up, high efficiency up to 95%, wire style

SKU:

LDH-25-250W

Please for Pricing

Notify me when it's back in stock

Description

The LDH-25 is a Mean Well power converter (input range: 12.5~84VDC).

Key Features

✓ Input voltage range: 12.5~84VDC
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: IEC 61347-1, IEC 61347-2-13, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LDH Series
Power Rating

21 Watt
Output Voltage

84 Volt
Rated Current

0.25 Ampere
Input Voltage

9.5V~32V
Standards Met

CE
Operation Mode

Constant Current
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.24 cm
Width

2.72 cm
Height

2.4 cm
Weight

0.06 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LDH-25-250W for a constant current LED downlight?

Yes, this model provides 250 mA constant current output for LED loads operating within its 12-84V constant current range. It should be matched to constant current downlights, not constant voltage LED products.

Is the LDH-25-250W appropriate for small LED arrays or signage modules?

Yes, it can be used for small LED arrays or signage modules that are specified for 250 mA constant current drive. The load has to stay within the 12-84V constant current range, and the LED quantity depends on the forward voltage of each LED.

Can this driver help when the LED load needs more voltage than the source provides?

Yes, the LDH-25-250W is a step-up constant current driver with a 9-32VAC input and up to 84V output. That makes it relevant where the LED load voltage is above the available input range but still within the driver's constant current window.

What should I check for compatibility with the LDH-25-250W?

Check that the LED load is built for 250 mA constant current operation and that its operating voltage falls within the 12-84V constant current range. The final number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count from the driver spec alone.

What environmental limits apply to the LDH-25-250W?

This model is specified for operation from -40°C to +70°C. No IP rating is listed in the provided specs, so environmental protection should be evaluated at the enclosure or system level.

Model	Power	Voltage	Current	IP Rating
LDH-25-700W	25.2W	36V	0.7A	Indoor	View
LDH-25-700	25.2W	36V	0.7A	Indoor	View
LDH-25-500W	25W	50V	0.5A	Indoor	View
LDH-25-500	25W	50V	0.5A	Indoor	View
LDH-25-350W	25.2W	72V	0.35A	Indoor	View
LDH-25-350	25.2W	72V	0.35A	Indoor	View
LDH-25-250	21W	84V	0.25A	Indoor	View
