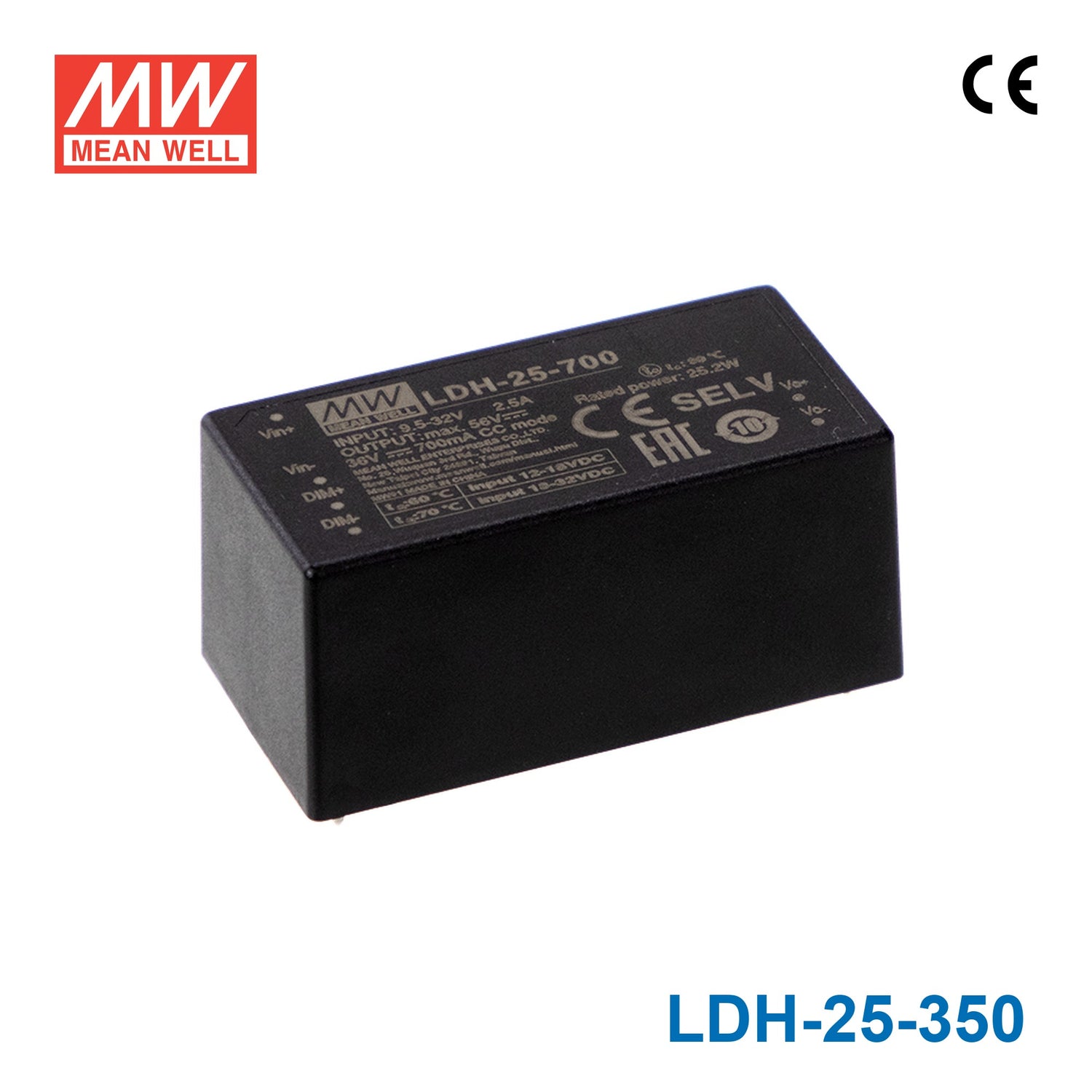

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

LDH-25-350

constant current, step up, high efficiency up to 95%, pin style

SKU:

LDH-25-350

Please for Pricing

Notify me when it's back in stock

Description

The LDH-25 is a Mean Well power converter (input range: 12.5~84VDC).

Key Features

✓ Input voltage range: 12.5~84VDC
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: IEC 61347-1, IEC 61347-2-13, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LDH Series
Power Rating

25.2 Watt
Output Voltage

72 Volt
Rated Current

0.35 Ampere
Input Voltage

9.5V~32V
Standards Met

CE
Operation Mode

Constant Current
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.24 cm
Width

2.72 cm
Height

2.4 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LDH-25-350 for LED downlights that run at 350 mA?

Yes, this is a 350 mA constant current LED driver with a 12-72V constant current output range and 25.2W power rating. It should be used with constant current LED loads rather than constant voltage products.

Is the LDH-25-350 suitable for signage modules or small LED arrays?

It can be used for signage modules or small LED arrays when the LEDs are designed for 350 mA constant current drive. The LED load must remain within the 12-72V constant current range, and the number of LEDs depends on each LED's forward voltage.

Can the LDH-25-350 be used in a system where the source is below the LED load voltage?

Yes, this is a step-up driver with a 9-32VAC input and up to 72V output. It is meant for constant current LED applications where the load voltage requirement is higher than the available input voltage.

How do I size an LED load for the LDH-25-350?

The load must be a 350 mA constant current load and must operate within the 12-72V constant current range. The number of LEDs is not fixed by the driver because it depends on the forward voltage of each LED in the array.

How does the LDH-25-350 compare with nearby LDH family options?

In the LDH-25 group, the 250 and 250W models are 250 mA, 12-84V, 21W; the 350 and 350W models are 350 mA, 12-72V, 25.2W; the 500 and 500W models are 500 mA, 12-50V, 25W; and the 700 and 700W models are 700 mA, 12-36V, 25.2W. Higher-output families listed here move to ratings such as 30.1W, 43W, 44.1W, 44.8W, 45.15W, 56W, 63W, 64.4W, and 64.75W with different current and voltage ranges.

Model	Power	Voltage	Current	IP Rating
LDH-25-700W	25.2W	36V	0.7A	Indoor	View
LDH-25-700	25.2W	36V	0.7A	Indoor	View
LDH-25-500W	25W	50V	0.5A	Indoor	View
LDH-25-500	25W	50V	0.5A	Indoor	View
LDH-25-350W	25.2W	72V	0.35A	Indoor	View
LDH-25-250W	21W	84V	0.25A	Indoor	View
LDH-25-250	21W	84V	0.25A	Indoor	View
