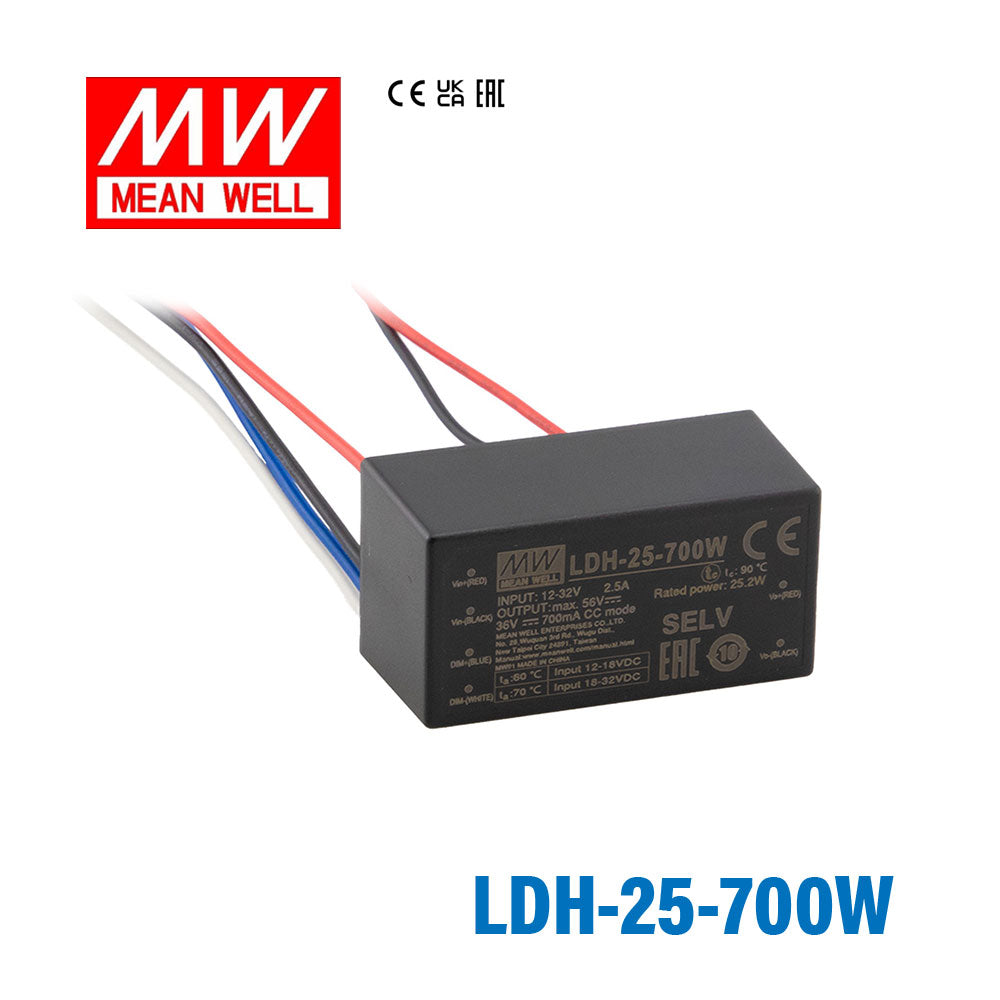

LDH-25-700W

constant current, step up, high efficiency up to 95%, wire style

SKU:

LDH-25-700W

Please for Pricing

Notify me when it's back in stock

Description

The LDH-25 is a Mean Well power converter (input range: 12.5~84VDC).

Key Features

✓ Input voltage range: 12.5~84VDC
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: IEC 61347-1, IEC 61347-2-13, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LDH Series
Power Rating

25.2 Watt
Output Voltage

36 Volt
Rated Current

0.7 Ampere
Input Voltage

9.5V~32V
Standards Met

CE
Operation Mode

Constant Current
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.24 cm
Width

2.72 cm
Height

2.4 cm
Weight

0.06 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the LDH-25-700W drive a 700mA LED downlight from a low-voltage input?

Yes, if the downlight needs 700mA constant current and its total LED forward voltage stays within the 12-36V CC range. This step-up driver accepts 9-32VAC input and provides up to 25.2W output.

Is this a good option for compact signage or display lighting built around constant current LEDs?

It can be, provided the LED modules are specified for 700mA constant current operation and fall within the 12-36V output range. It is not a constant voltage unit, so it should not be used where the LED product requires a fixed-voltage supply.

Can I use the LDH-25-700W for a small LED array in a tight space?

Yes, for small arrays that need 700mA regulated current and up to 25.2W output. The housing is 52.4 × 27.2 × 24.0 mm, and this version uses a wire style lead format.

What makes an LED load compatible with the LDH-25-700W?

The load must be designed for constant current at 700mA, with a total LED forward voltage inside the 12-36V CC range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by voltage range rather than by a stated LED count.

What environmental range is this driver rated for?

The LDH-25-700W is rated for -40°C to +70°C operation and carries CE certification. It also lists efficiency up to 95% and a 3 year warranty.

Model	Power	Voltage	Current	IP Rating
LDH-25-700	25.2W	36V	0.7A	Indoor	View
LDH-25-500W	25W	50V	0.5A	Indoor	View
LDH-25-500	25W	50V	0.5A	Indoor	View
LDH-25-350W	25.2W	72V	0.35A	Indoor	View
LDH-25-350	25.2W	72V	0.35A	Indoor	View
LDH-25-250W	21W	84V	0.25A	Indoor	View
LDH-25-250	21W	84V	0.25A	Indoor	View
