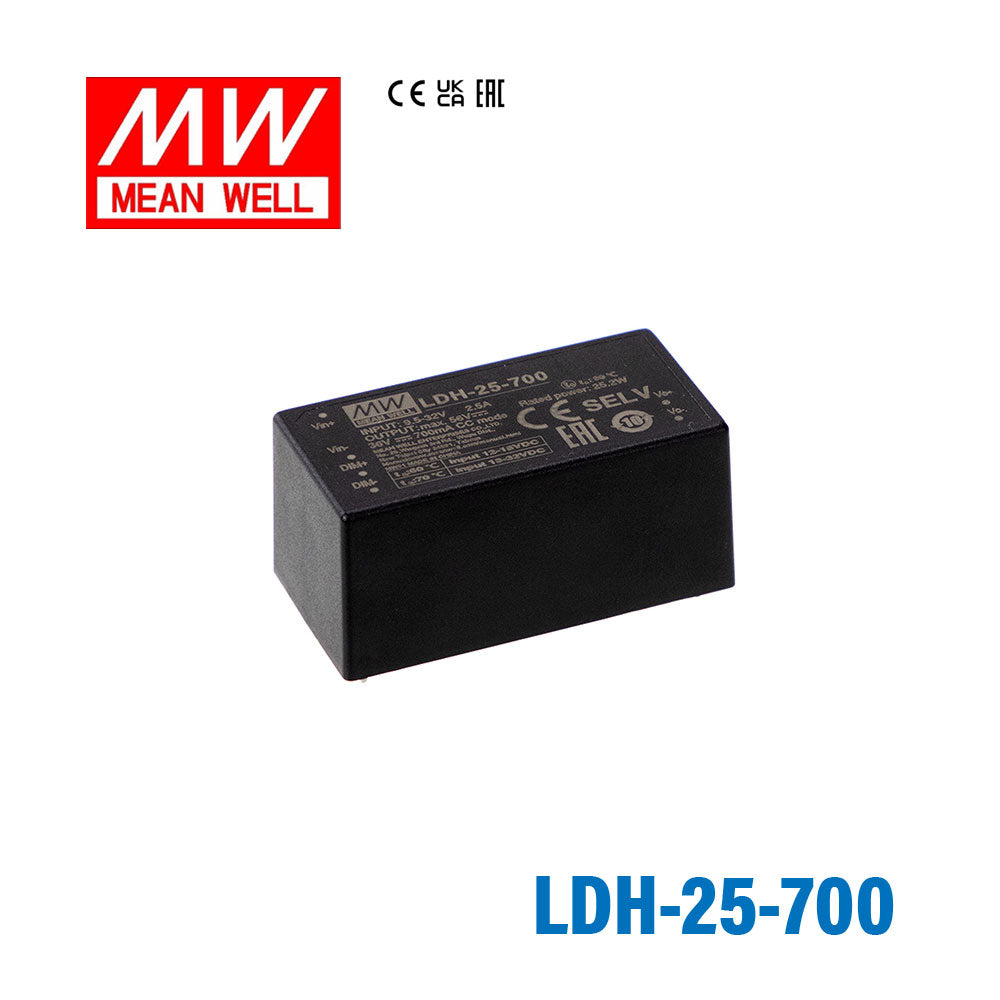

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

LDH-25-700

constant current, step up, high efficiency up to 95%, pin style

SKU:

LDH-25-700

Please for Pricing

Notify me when it's back in stock

Description

The LDH-25 is a Mean Well power converter (input range: 12.5~84VDC).

Key Features

✓ Input voltage range: 12.5~84VDC
✓ Protections: Short circuit / Over voltage
✓ Safety approvals: IEC 61347-1, IEC 61347-2-13, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LDH Series
Power Rating

25.2 Watt
Output Voltage

36 Volt
Rated Current

0.7 Ampere
Input Voltage

9.5V~32V
Standards Met

CE
Operation Mode

Constant Current
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

5.24 cm
Width

2.72 cm
Height

2.4 cm
Weight

0.05 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LDH-25-700 for LED downlights that require 700mA?

Yes, if the downlight is designed for constant current operation at 700mA and the total LED forward voltage is within the 12-36V CC range. This model delivers up to 25.2W and is meant for constant current LED loads, not constant voltage fixtures.

Is the LDH-25-700 suitable for small high-current LED arrays?

It is a fit for small LED arrays that need 700mA regulated current and operate within the 12-36V constant current range. With 25.2W output, it is aimed at compact constant current LED applications rather than larger higher-power arrays.

Can this driver be used with signage modules that run on constant current?

Yes, if the signage modules are specified for 700mA constant current operation and the combined LED forward voltage stays within 12-36V. It is not intended for constant voltage signage modules that are designed around a fixed-voltage supply.

How do I check LED compatibility with the LDH-25-700?

The LED load must require 700mA constant current, and its combined forward voltage must fall inside the 12-36V CC output window. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this driver.

Is the LDH-25-700 designed for wide temperature conditions?

It is rated to operate from -40°C to +70°C, which supports use across a broad temperature range. The compact pin-style housing measures 52.4 × 27.2 × 24.0 mm and weighs 0.05 kg.

Model	Power	Voltage	Current	IP Rating
LDH-25-700W	25.2W	36V	0.7A	Indoor	View
LDH-25-500W	25W	50V	0.5A	Indoor	View
LDH-25-500	25W	50V	0.5A	Indoor	View
LDH-25-350W	25.2W	72V	0.35A	Indoor	View
LDH-25-350	25.2W	72V	0.35A	Indoor	View
LDH-25-250W	21W	84V	0.25A	Indoor	View
LDH-25-250	21W	84V	0.25A	Indoor	View
