Archilight

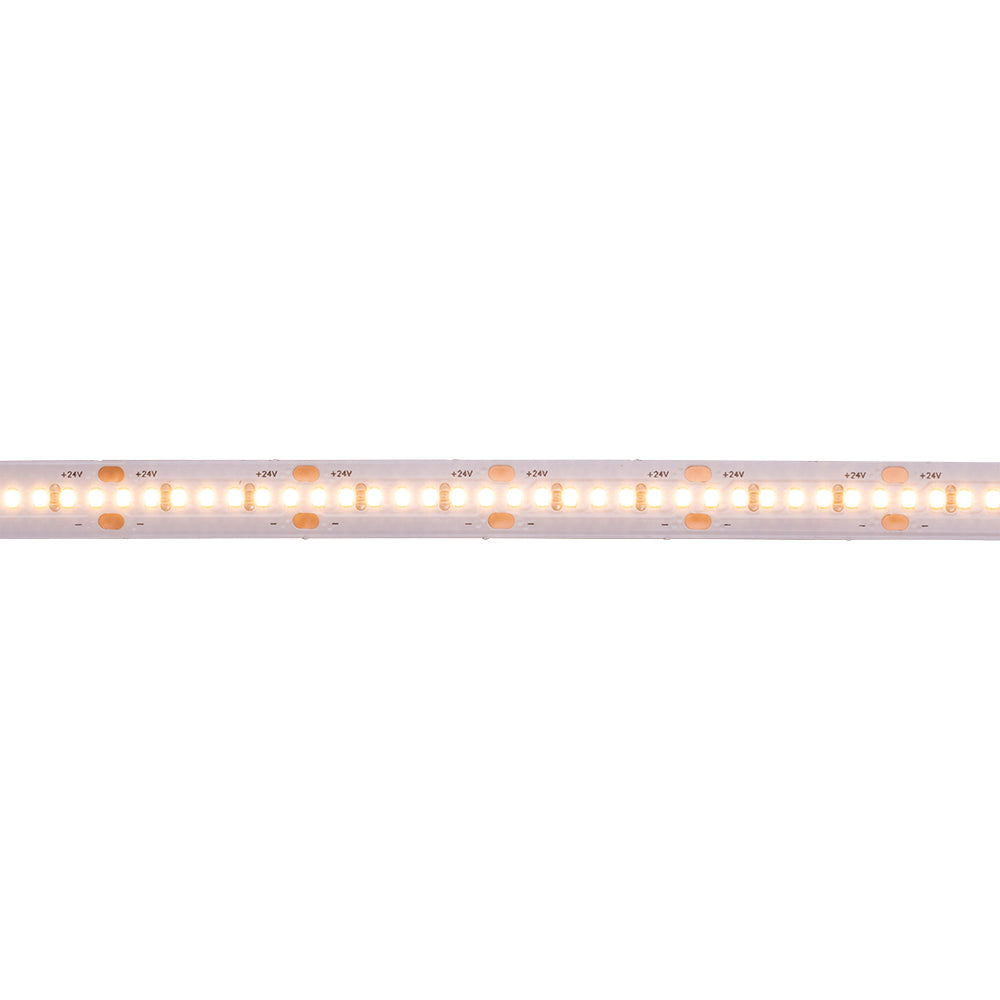

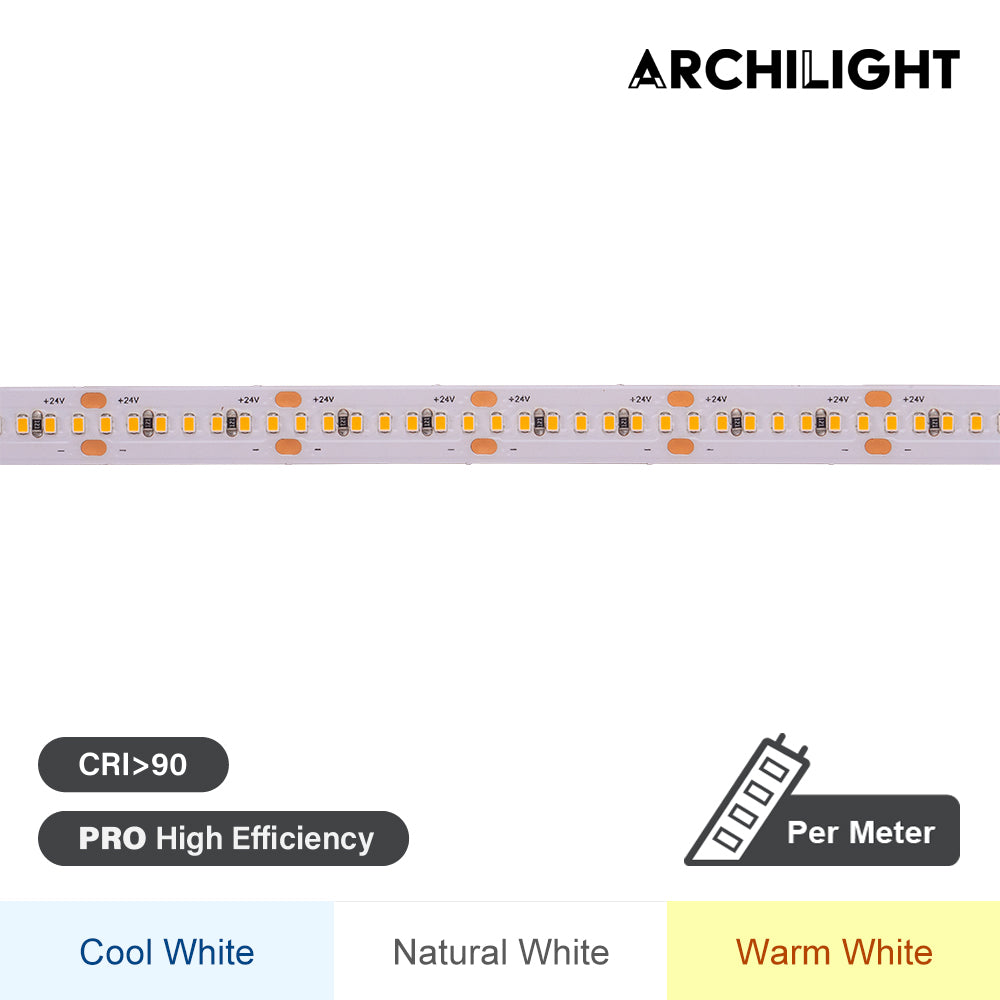

LED Strip Pro High-Density 280LEDs/m 14W/m 24V IP20 CRI>90

SKU:
HD2216-2802400GLE-CW
Length
LED Colour
Please for Pricing
|

Description
Plus Series using top quality material, such as Epistar chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper etc. • Tiny package of 2216 LED, more appropriate for furniture lighting with demand of high-density performance with CRI 90

Specifications
  • Brand
    Archilight
  • Series
    ProPlus Ultra High CRI Series
  • Power Rating
    14 Watt
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~50°C
  • Warranty
    5 Year
  • Width
    1 cm
  • Height
    0.2 cm
  • Weight
    0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this LED strip designed for?

This Archilight Plus Series LED strip is intended for interior linear lighting where a high-density LED layout and strong color quality are important. The product description specifically notes it is well suited for furniture lighting and applications that need a refined, closely spaced light source.

What voltage and power rating does this LED strip use?

This strip uses 24V power input and is rated at 14W per meter. That makes it a constant-voltage 24V LED strip family for projects specified around that power and voltage requirement.

Is the driver included with this LED strip?

No, the driver is not included with this product family. Buyers should account for a separate compatible driver when specifying the strip.

Is this LED strip dimmable?

Yes, dimming is available as an optional feature for this family. That means the strip supports dimmable use when paired with the appropriate compatible dimming setup.

What color temperatures are available in this product family?

The child variants shown for this parent model are available in 3000K, 4000K, and 6000K. This gives buyers a choice between warm white, neutral white, and cool white options within the same family.

What light quality can I expect from this LED strip?

This product family is specified at CRI greater than 90, which indicates high color rendering. It is positioned for applications where color quality matters, alongside a very dense 280 LEDs per meter layout for a more continuous lighting effect.

Is this LED strip suitable for outdoor or wet-area use?

No, this strip is rated IP20, which is generally intended for indoor dry environments. It is better suited to protected interior applications rather than exposed outdoor or wet locations.

What are the physical dimensions of the strip?

The strip is listed as 10 mm wide and 2 mm high. These dimensions can be useful when checking fit within slim interior linear lighting or furniture-lighting profiles.

How do the variants differ in brightness?

The child variants shown under this parent family list brightness values of 1400 lm and 7000 lm, depending on the selected variant. The parent family keeps the same 14W/m, 24V, IP20, and CRI>90 positioning while allowing different variant selections within the range.

What warranty is offered for this LED strip family?

This LED strip family is listed with a 5-year warranty period. That provides longer-term coverage for commercial and specification-driven projects where warranty duration is an important buying consideration.
