Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

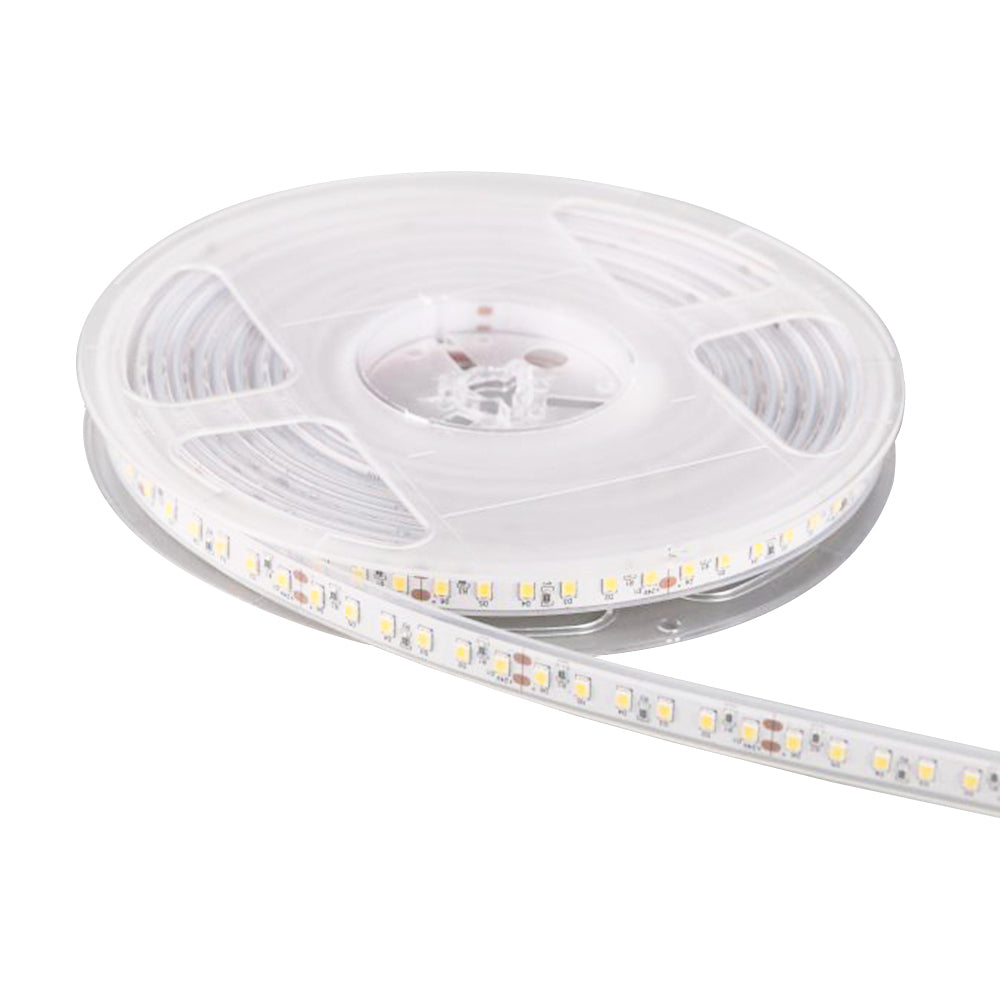

LED Strip Pro High-efficiency 70LEDs/m 10.8W/m 24V IP65 CRI>90

SKU:

Z-2835-0702465GLE-CW-5

Length

500 Centimeter

LED Colour

Cool White 6000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

· Plus Series using top quality material, such as Epistar chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh stand etc. · Hi-Efficiency Series with 7 LEDs in one circuit section, to achieve relatively high brightness output under same power consumption. · Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc. -IP65 rated

Specifications

Brand

Archilight
Series

ProPlus Ultra High CRI Series
Power Rating

10.8 Watt
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

5 Year
Width

1 cm
Height

0.2 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this LED strip best suited for?

This strip is intended for commercial and architectural accent lighting, including showcase, shelf, cabinet, signage, hotel, corridor, ceiling, stair, floor, and cove applications. It is positioned as a high-efficiency LED strip for backlighting and indirect lighting where consistent output and good colour quality matter.

What are the main performance specs for this LED strip family?

The family is rated at 24V and 10.8W per metre, using 70 LEDs per metre. The parent model also states CRI 90 and a 5-year warranty, making it suitable for projects that need efficient output with strong colour rendering.

What colour temperature options are available in this product family?

The child variant data shows three colour temperature options across the family: 3000K, 4000K, and 6000K. That gives buyers a choice between warmer, more neutral, and cooler light appearance without changing the core electrical specification.

Does this LED strip include a driver, and can it be dimmed?

The family data shows that a driver is not included. It is also marked as dimmable optional, so dimming is supported where the rest of the system is selected appropriately.

How bright is this LED strip family?

The variant data provided for the 5m versions shows 5000 lumens per pack. Since the pack length is 5 metres, that corresponds to the listed family format rather than an individual metre-only output figure.

Is this LED strip suitable for environments where some dust or moisture protection is needed?

The supplied family data indicates protected versions intended for more demanding environments, including outdoor-related category placement and IP-rated child variants. Buyers should still match the exact variant and project requirements to the required environmental protection level.

Model	Power	LED Density	Cuttable	IP Rating
LED Strip Pro High-efficiency 140LEDs/m 15W/m 24V IP65 CRI>90	15W	140LEDs/m	50mm	IP65	View
LED Strip Pro High-Density 280LEDs/m 14W/m 24V IP65 CRI>90	14W	280LEDs/m	25mm	IP65	View
LED Strip ProPlus CC High CRI 120LEDs/m 14.4W/m 24V IP65 CRI>95	14.4W	120LEDs/m	50mm	IP65	View
LED Strip Pro High-Density 280LEDs/m 14W/m 24V IP20 CRI>90	14W	280LEDs/m	25mm	Indoor	View
LED Strip ProPlus CC High CRI 120LEDs/m 14.4W/m 24V IP20 CRI>95	14.4W	120LEDs/m	50mm	Indoor	View
