Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

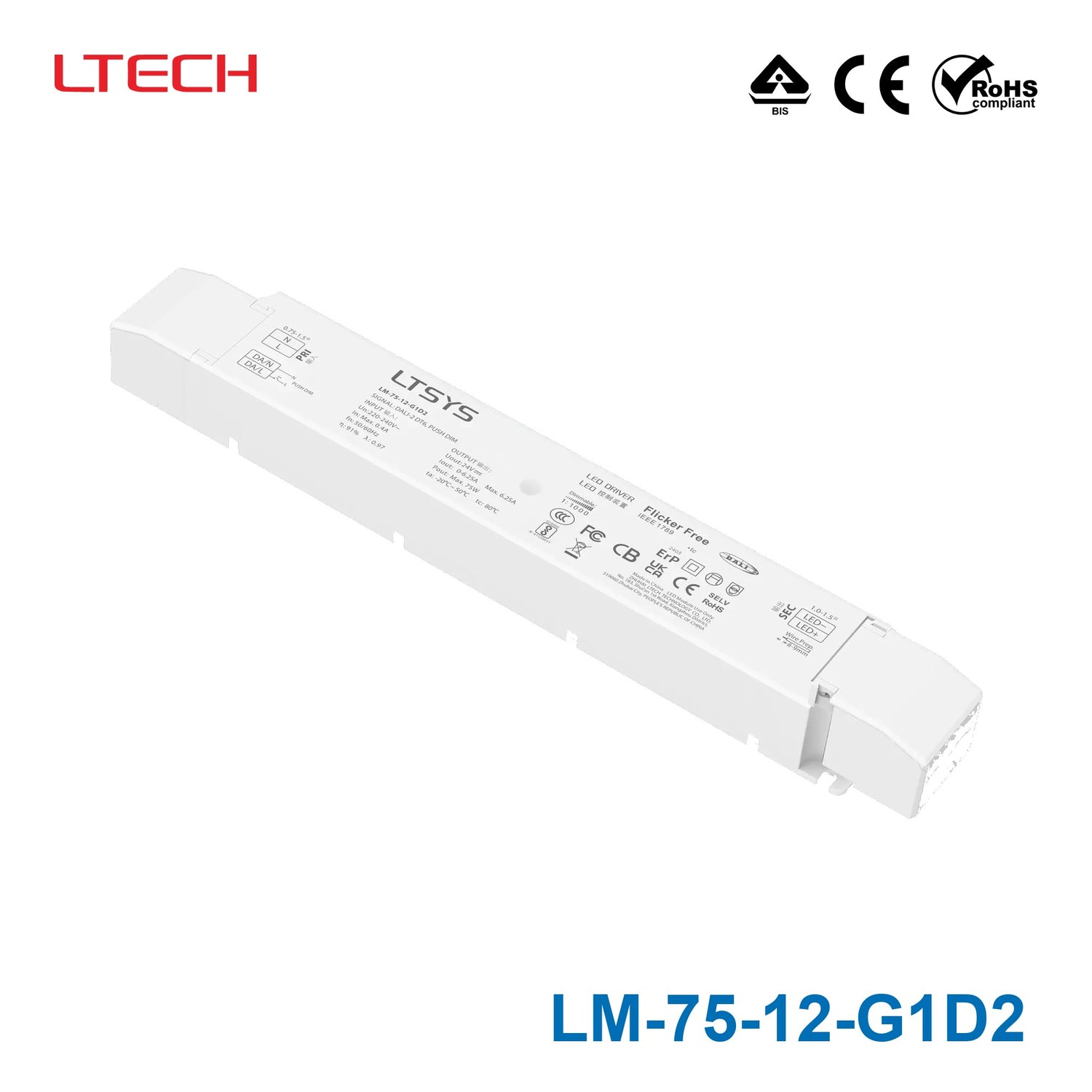

Ltech LM-75-12-G1D2 75W 12VDC CV DALI2 LED Driver 6.25A

SKU LM-75-12-G1D2

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LM-75-12-G1D2F

Notify me when it's back in stock

The LM-75-12-G1D2 is a 75W constant-voltage LED driver with a 12VDC output, so it is intended for 12V LED lighting applications that require dimming control. It is suitable for indoor I, II, and III type lamp applications and is positioned for professional lighting projects where DALI-based control is needed.

Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: DALI, Push DIM
✓Output voltage: 12V
✓Rated output current: 6.25A
✓Rated power: 75W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: BIS, CE, ROHS
✓Dimensions: 293 x 43 x 30mm
✓5 year warranty

Frequently Asked Questions

What type of LED applications is the Ltech LM-75-12-G1D2 designed for?

Does this model support DALI2, and what dimming options does it offer?

Yes. This model supports both DALI 1 and DALI 2 protocols and also lists Push DIM capability. It provides 0-100% dimming, supports flicker-free dimming performance, and allows either a linear or logarithmic DALI dimming curve.

What are the main electrical ratings of the LM-75-12-G1D2?

This LED driver is rated at 75W with a 12VDC output and a rated current of 6.25A. Those specifications make it a constant-voltage option for 12V systems where stable output and DALI dimming are required.

Is this LED driver suitable for low-level dimming performance?

Yes. The LM-75-12-G1D2 supports dimming down to very low output levels, with LED start at 0.1% noted in the product details. That makes it a strong fit for applications where smooth low-end dimming is important.

What operating environment is this model intended for?

This model is designed for indoor use and has an operating temperature range of -20°C to 50°C. It also uses a full protective plastic housing and is compliant with Safety Extra Low Voltage standards.

What protection and efficiency features does the LM-75-12-G1D2 include?

The driver includes over-heat, over-load, and short-circuit protection, with automatic recovery listed in the product details. It also has standby power loss below 0.5W, which helps reduce idle energy consumption in controlled lighting systems.

What warranty comes with the Ltech LM-75-12-G1D2?

This model includes a 5-year warranty period. That gives buyers longer-term coverage for commercial and professional LED lighting applications where product lifespan and support matter.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech LM-75-24-G1D2 75W 24VDC CV DALI2 LED Driver 3.125A	75W	24V	3.12A	IP20	View
Ltech LM-75-24-G2D2 75W 24VDC DALI2 DT8 LED Driver - Tunable White 3.125A	75W	24V	3.12A	IP20	View
Ltech LM-75-24-G1D2F 75W 24V NFC CV DALI-2 LED Driver 3.125A	—	—	—	Indoor	View
Ltech LM-75-24-G2D2F 75W 24VDC CV DALI-2 LED Driver 3.125A	—	—	—	IP20	View
Ltech LM-75-12-G1D2F 75W 12VDC CV DALI-2 LED Driver 6.25A	—	—	—	IP20	View
