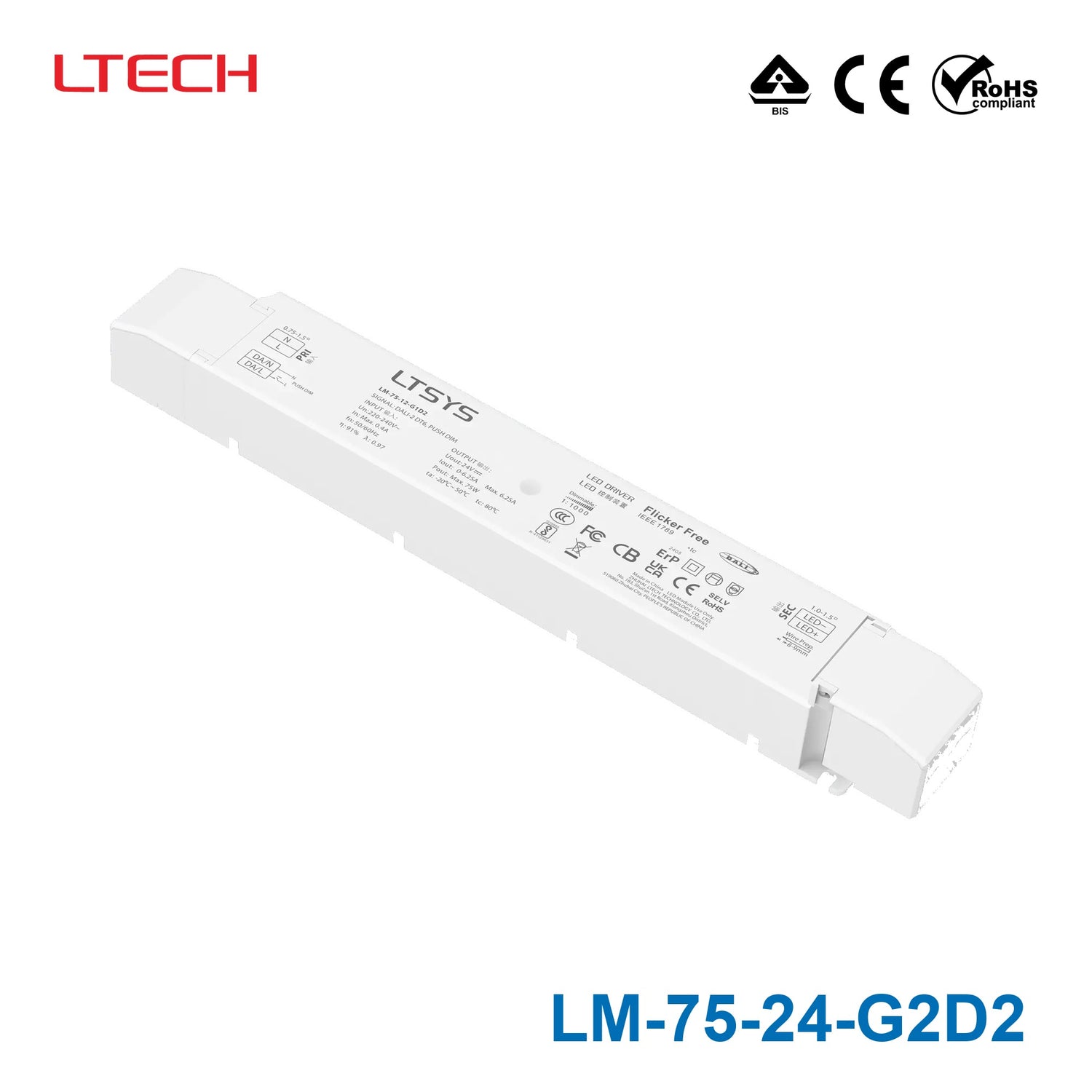

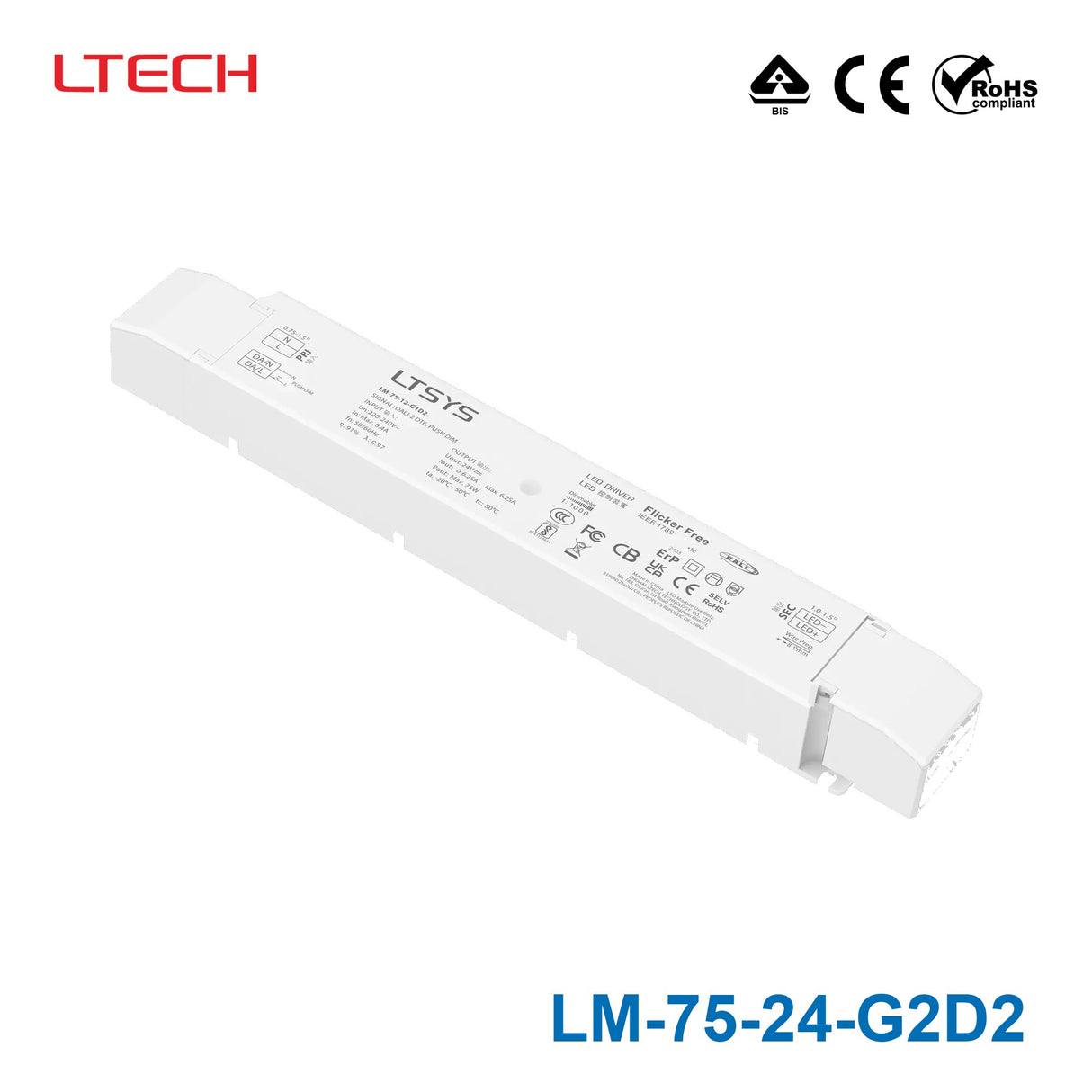

Ltech LM-75-24-G2D2 75W 24VDC DALI2 DT8 LED Driver - Tunable White ...
Log in to see priceThe LM-75-24-G2D2 is a 75W 24VDC constant-voltage LED driver for tunable white lighting applications. It supports DALI-2 DT8 control and is intended for indoor Type I, II, and III lamp applications.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DALI, Push DIM
- ✓Output voltage: 24V
- ✓Rated output current: 3.125A
- ✓Rated power: 75W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length29.3 cm
-
Width4.3 cm
-
Height3 cm
-
Weight0.3 kg
::specification::
Frequently Asked Questions
What is the Ltech LM-75-24-G2D2 designed for?
The LM-75-24-G2D2 is a 75W 24VDC constant-voltage LED driver for tunable white lighting applications. It supports DALI-2 DT8 control and is intended for indoor Type I, II, and III lamp applications.
Does this driver support tunable white color temperature control?
Yes. This model is built for dimming and color temperature adjustment, with a tunable white range of 2700K to 6500K. Its constant power design is intended to maintain the same brightness while adjusting color temperature.
What dimming performance does the LM-75-24-G2D2 offer?
This driver supports 0 to 100% dimming and can start LEDs at 0.1%. It is also described as flicker-free across the 0 to 100% dimming range.
Is the LM-75-24-G2D2 a constant-voltage or constant-current driver?
The LM-75-24-G2D2 is a constant-voltage LED driver with a 24VDC output. Its rated output is 75W with a rated current of 3.125A.
What control protocol does this LED driver use?
This model uses DALI-2 DT8 as its dimming interface and also supports Push DIM/CCT control. It is specifically intended for applications that need both dimming and tunable white color temperature adjustment.
Can this driver be used in demanding indoor environments?
It is rated for indoor use with an operating temperature range of -20°C to 50°C. The unit also includes over-heat, overload, and short-circuit protection with automatic recovery.
What are the housing and efficiency-related features of this model?
The LM-75-24-G2D2 uses a full protective plastic housing and is compliant with Safety Extra Low Voltage requirements. It also has standby power loss below 0.5W.
What warranty is offered for the LM-75-24-G2D2?
This model includes a 5-year warranty period. That makes it a suitable option for commercial lighting projects where longer service life and support are important.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LM-75 Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Ltech LM-75-24-G1D2 75W 24VDC CV DALI2 LED Driver 3.125A | 75W | 24V | 3.12A | IP20 | View |
| Ltech LM-75-24-G1D2F 75W 24V NFC CV DALI-2 LED Driver 3.125A | — | — | — | Indoor | View |
| Ltech LM-75-12-G1D2 75W 12VDC CV DALI2 LED Driver 6.25A | 75W | 12V | 6.25A | IP20 | View |
| Ltech LM-75-24-G2D2F 75W 24VDC CV DALI-2 LED Driver 3.125A | — | — | — | IP20 | View |
| Ltech LM-75-12-G1D2F 75W 12VDC CV DALI-2 LED Driver 6.25A | — | — | — | IP20 | View |
