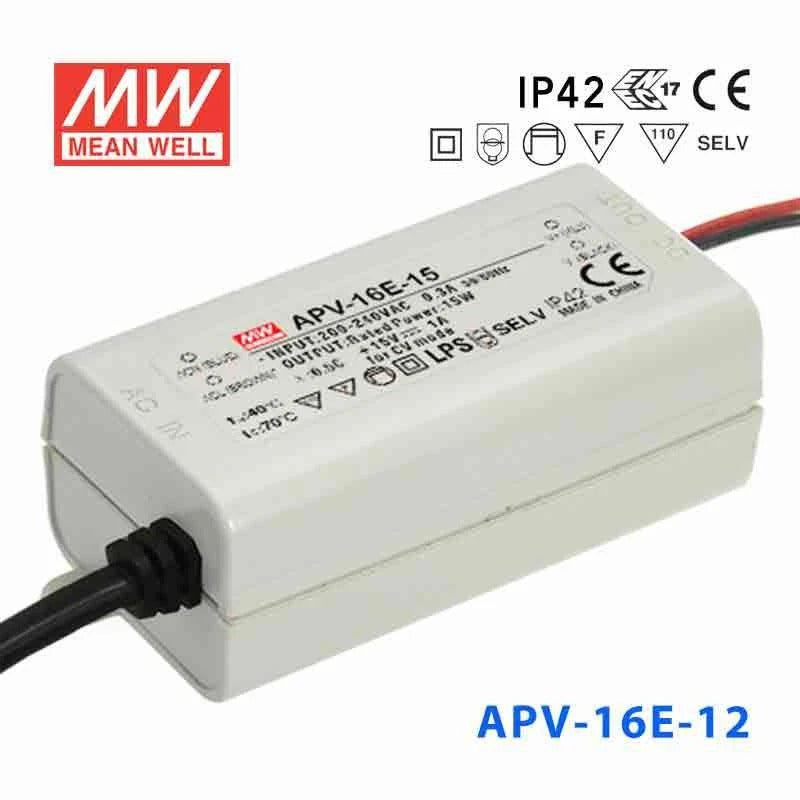

Mean Well APV-16E-12 Power Supply 15W 12V 1.25A
Please Login for Pricing
Description
Description
The APV-16E is a 16W Mean Well. power converter. and an input range of 180~264VAC.
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: ENEC EN61347-1, EN61347-2-13, EN62384 IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage180V~264V
-
Standards MetCB,CE,EAC,ENEC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length7.7 cm
-
Width4 cm
-
Height2.9 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What input voltage does the APV-16E-12 require, and where is it used?
The APV-16E-12 accepts 180–264VAC, placing it in the European and high-mains market segment operating at 230–240V. It will not function on 100–120V supplies. Certifications are CB, CE, EAC, and ENEC. For universal input including North America, the APV-16-12 (90–264VAC) is the appropriate choice.
How does the APV-16E-12 differ from the APV-16-12?
Both output 12V at 1.25A (15W) in the same 77.0 × 40.0 × 29.0 mm housing. The APV-16-12 accepts 90–264VAC and is certified CB, CE, EAC, ENEC, and UL. The APV-16E-12 accepts 180–264VAC only and carries CB, CE, EAC, and ENEC, making it the European-specific variant of the same platform.
Can the APV-16E-12 supply 12V LED strip in a European commercial display?
Yes. The APV-16E-12 delivers 12V at 1.25A for 15W maximum from 230V European mains. It suits 12V LED strip in display cases, retail shelf edges, and small 12V signage panels where the total load is within 15W.
How many meters of 12V LED strip can the APV-16E-12 power?
The APV-16E-12 provides 15W at 12V. At a strip rated 4.8 W/m, the maximum supported length is approximately 3.1 m. Divide 15W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before specifying.
Other APV-16E Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well APV-16E-24 Power Supply 16W 24V 670mA | 16.08W | 24V | 0.67A | Indoor | View |
| Mean Well APV-16E-5 Power Supply 12W 5V 2.6A | 13W | 5V | 2.6A | Indoor | View |
| Mean Well APV-16E-15 Power Supply 15W 15V 1A | 15W | 15V | 1A | Indoor | View |
