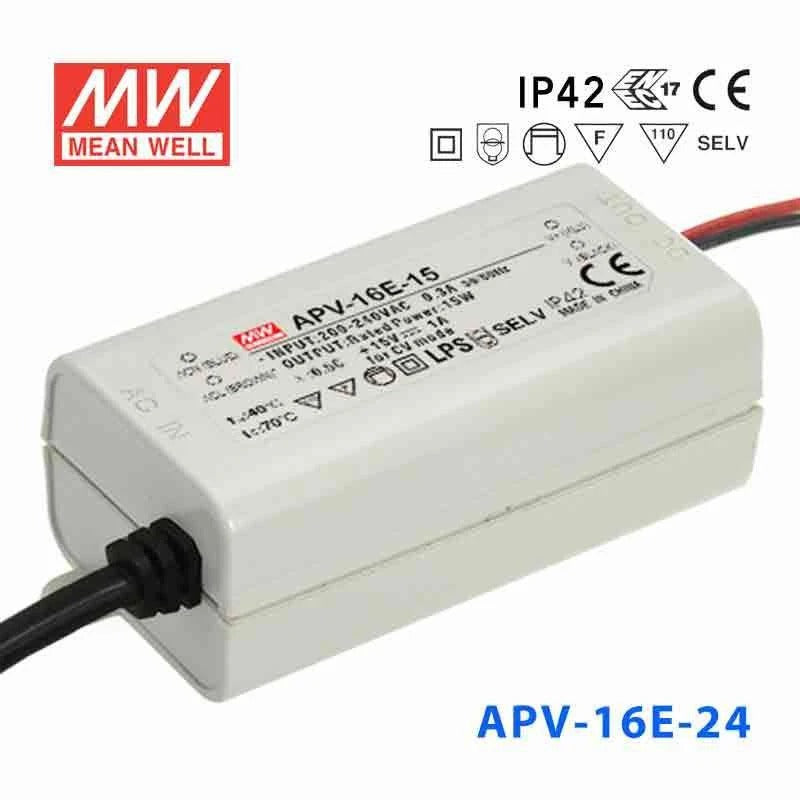

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well APV-16E-24 Power Supply 16W 24V

Class II design, low cost, small and compact, IP42

SKU:

APV-16E-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Fully isolated plastic case

Protections: Short circuit / Overload / Over voltage

Constant voltage design (C.V. mode)

IP30 design

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current	Cold start, 70A at 230VAC
Overload Range	>105% rated output current
Protection Type	Hiccup up mode, auto-recovery
Over voltage protection	110%~145% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13
EMC standards	EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, 18AWGx2C (15cm)
Connection Output	UL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm)	77x 40x 29

Specifications

Brand

Mean Well
Series

APV Series
Power Rating

16.08 Watt
Output Voltage

24 Volt
Rated Current

0.67 Ampere
Input Voltage

180V~264V
Standards Met

CB,CE,EAC,ENEC
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

7.7 cm
Width

4 cm
Height

2.9 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What regions and mains voltages is the APV-16E-24 designed for?

The APV-16E-24 accepts 180–264VAC, making it appropriate for European, UK, and Australian markets at 230–240V. It does not support 100–120V systems. For North American projects at 24V output, the APV-16-24 (90–264VAC, UL listed) is the correct model.

How does the APV-16E-24 differ from the APV-16-24?

Both produce 24V at 0.67A (16.08W) in the same 77.0 × 40.0 × 29.0 mm housing. The APV-16-24 accepts 90–264VAC and holds CB, CE, EAC, ENEC, and UL certifications. The APV-16E-24 accepts 180–264VAC only and is certified CB, CE, EAC, and ENEC, targeting European-mains installations.

Can the APV-16E-24 power a 24V LED signage panel in a European installation?

Yes. The APV-16E-24 provides 24V at 0.67A for 16.08W maximum from 230V European mains. It suits 24V LED strip in display signage, shelf lighting, and backlit panels where the total load does not exceed 16.08W.

How long a 24V LED strip can the APV-16E-24 drive?

The APV-16E-24 delivers 16.08W at 24V. At a strip rated 8 W/m, that supports approximately 2 m. Divide 16.08W by your strip's rated power per meter to determine the maximum run length, and check your strip's rated power per meter before specifying.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-16E-12 Power Supply 15W 12V	15W	12V	1.25A	Indoor	View
Mean Well APV-16E-5 Power Supply 12W 5V	13W	5V	2.6A	Indoor	View
Mean Well APV-16E-15 Power Supply 15W 15V	15W	15V	1A	Indoor	View
